Baugruppe

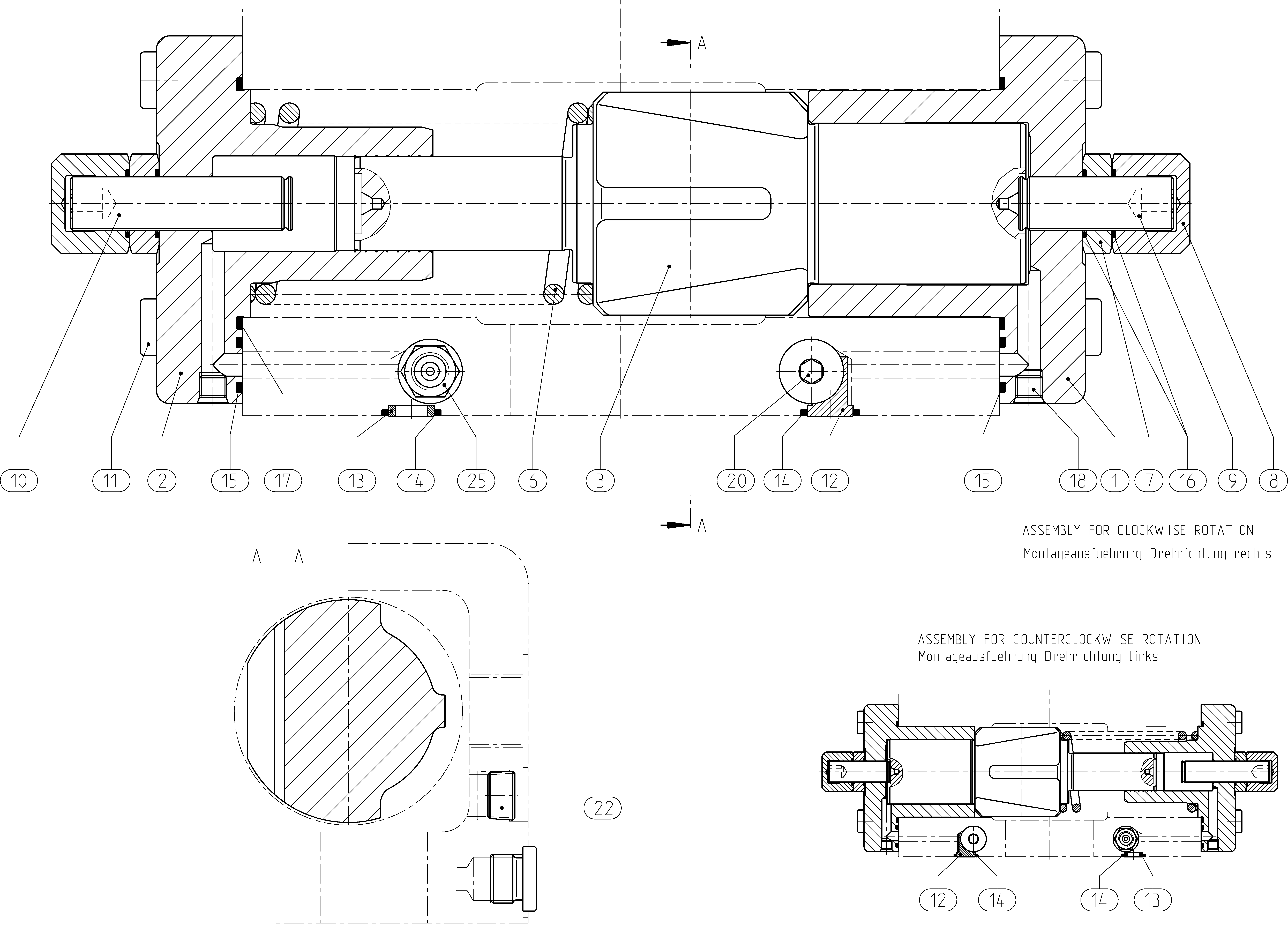

ADJUSTING PIECER902550510
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910945279 | PISTON HOUSING | 1 | ||
| R910961798 | PISTON HOUSING | 1 | ||
| R902530849 | ADJUSTING PISTON | 1 | ||
| R910943107 | COMPRESSION SPRING | 1 | ||
| R910903328 | NUT | 2 | ||
| R910903330 | CAP NUT | 2 | ||
| R902519546 | STUD BOLT | 1 | ||
| R902519547 | STUD BOLT | 1 | ||
| R910604976 | SOCKET HEAD CAP SCREW | 8 | ||
| R910978692 | PLUG | 1 | ||
| R910978693 | SEAL RINGD | 1 | ||
| R902650539 | DUMMYD | 2 | ||
| R902650541 | DUMMYD | 2 | ||
| R910977045 | O-RINGD | 4 | ||
| R902650323 | R-RINGD | 2 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153815 | SCREW PLUG | 1 | ||
| R910987526 | SCREW PLUG | 1 | ||
| R902429058 | SHUTTLE VALVE Stückliste der Baugruppe →L | 1 |
