Baugruppe

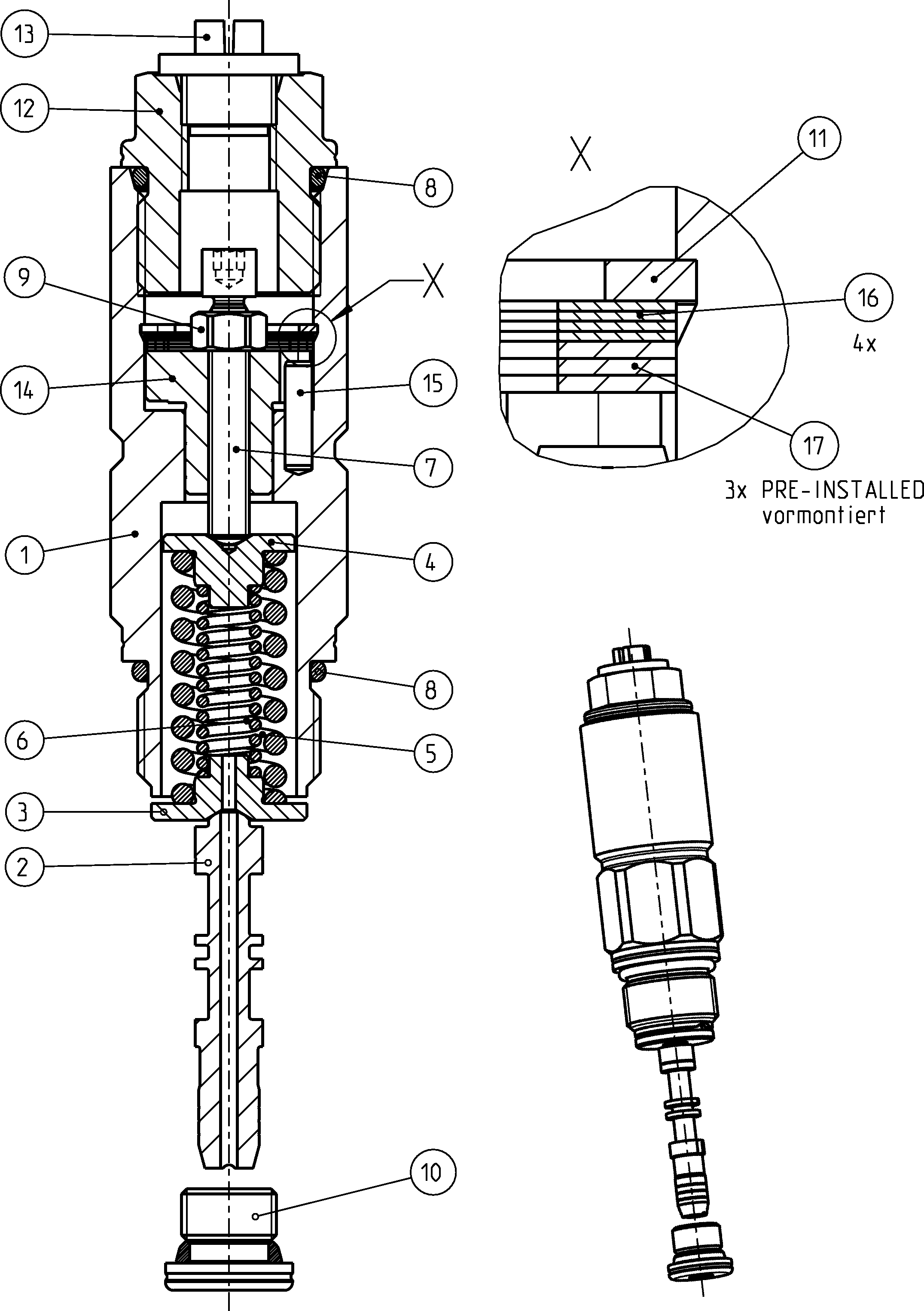

CONTROL ELEMENTR902553141
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902552057 | SCREW PLUG | 1 | ||
| R902468113 | VALVE SPOOL | 1 | ||
| R902468059 | SPRING DISK | 1 | ||
| R902552060 | SPRING DISK | 1 | ||
| R902565664 | COMPRESSION SPRING | 1 | ||
| R902468217 | COMPRESSION SPRING | 1 | ||
| R902552059 | SETSCREW | 1 | ||
| R909830868 | O-RING | 2 | ||
| R913051181 | HEXAGON NUT | 1 | ||
| R909831482 | SCREW PLUG | 1 | ||
| R909083387 | RETAINING RING | 1 | ||
| R902553140 | REDUCTION THREADED JOINT | 1 | ||
| R902602015 | SEAL SCREW | 1 | ||
| R902552058 | POSITIONING PISTON | 1 | ||
| R900085513 | STRAIGHT PIN | 1 | ||
| R909154323 | SHIM RING | 4 | ||
| R909156050 | SHIM RING | 8 |
