Baugruppe

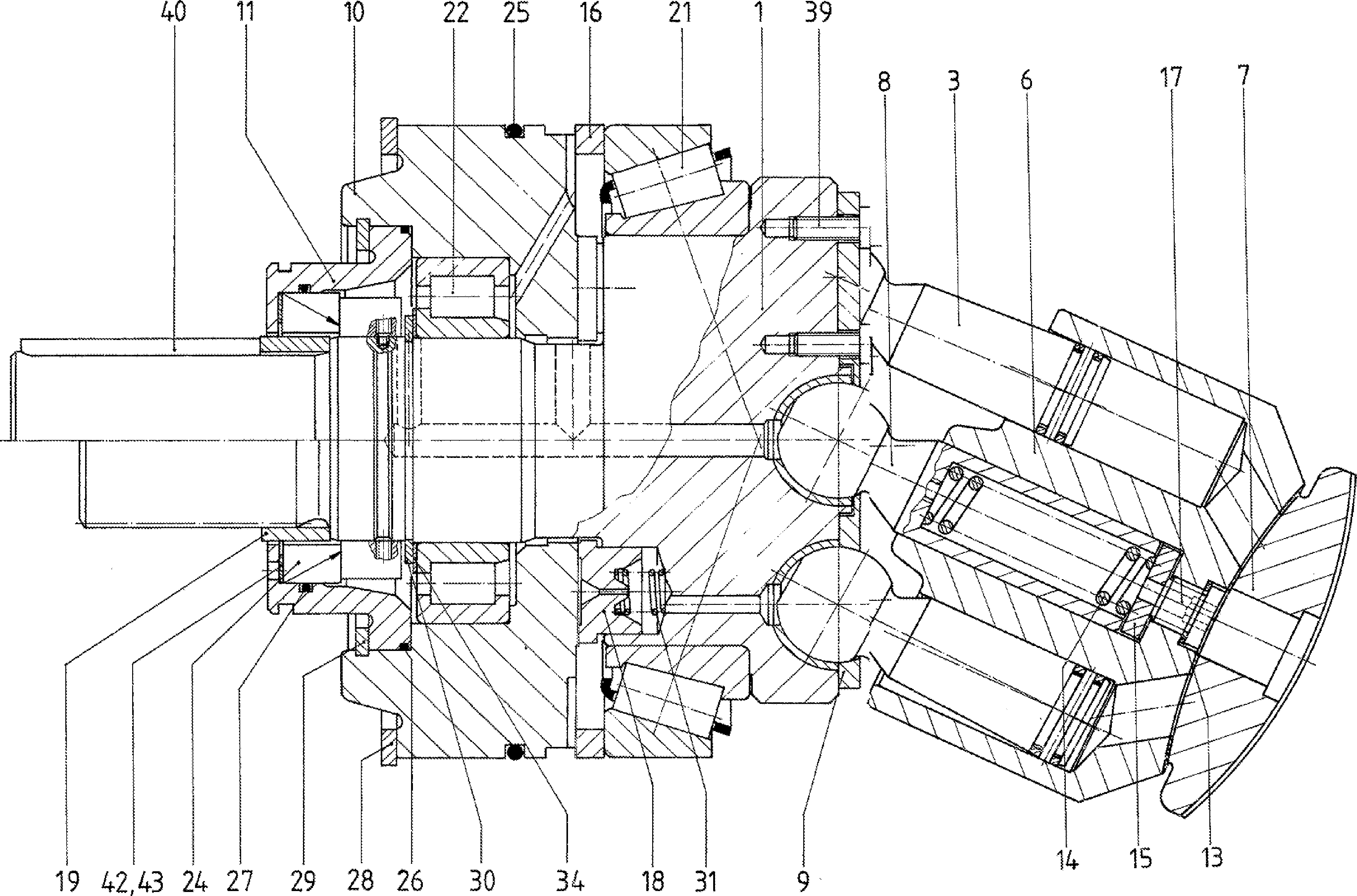

ROTARY GROUPR902554904
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902561235 | DRIVE FLANGE | 1 | ||
| R902567608 | PISTON | 7 | ||
| R902490713 | CYLINDER | 1 | ||
| R902537041 | CONTROL LENS | 1 | ||
| R902537507 | THRUST JOURNAL | 1 | ||
| R902556371 | RETAINING PLATE | 1 | ||
| R910937898 | BEARING RING | 1 | ||
| R910943440 | SEALING FLANGE | 1 | ||
| 12 | R910742465 | PAD | 7 | |
| R910936002 | SHIM RING | 1 | ||
| R910933287 | COMPRESSION SPRING | 1 | ||
| R910933031 | WASHER | 1 | ||
| R902416438 | TUNING KIT | 1 | ||
| R910933066 | SPACER SCREW | 1 | ||
| R910717207 | COMPRESSION SPRING | 7 | ||
| R910943442 | SPACER RING | 1 | ||
| R902650817 | TAPERED-ROLLER BEARING | 1 | ||
| R910914860 | CYL. ROLLER BEARING | 1 | ||
| R910915309 | SLIDE RING SEALD | 1 | ||
| R910636355 | O-RINGD | 1 | ||
| R910921211 | O-RINGD | 1 | ||
| R910680656 | O-RING | 1 | ||
| R910513202 | RETAINING RING | 1 | ||
| R910106135 | RETAINING RING | 1 | ||
| R910083895 | RETAINING RING | 1 | ||
| R910677493 | SHIM RING | 1 | ||
| R902602715 | PAN-HEAD SCREW | 14 | ||
| R910194433 | SHIM RING | 2 | ||
| R910194468 | SHIM RING | 2 |
