Baugruppe

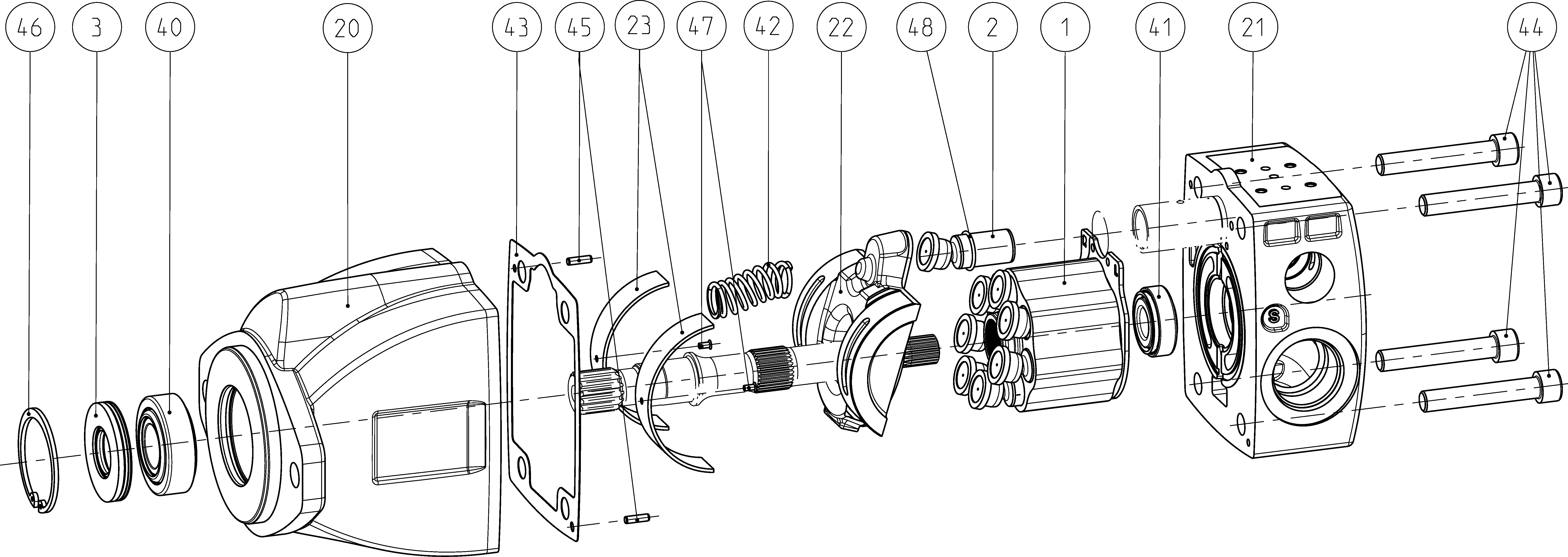

BASE UNITR902555000
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902558296 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902551322 | POSITIONING PISTON Stückliste der Baugruppe →L | 1 | ||
| R902552210 | BEARING COVER Stückliste der Baugruppe →L | 1 | ||
| R902553871 | PUMP HOUSING | 1 | ||
| R902540715 | CONNECTION PLATE | 1 | ||
| R902557389 | SWASH PLATE | 1 | ||
| R902536973 | BEARING SHELL | 2 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R902651034 | TAPERED-ROLLER BEARING | 1 | ||
| R902418549 | COMPRESSION SPRING | 1 | ||
| R902538723 | FLAT GASKET | 1 | ||
| R910126489 | SOCKET HEAD CAP SCREW | 4 | ||
| R913001000 | STRAIGHT PIN | 2 | ||
| R902552208 | RETAINING RING | 1 | ||
| R902514583 | COUNTERSUNK-HEAD SCREW | 2 |
