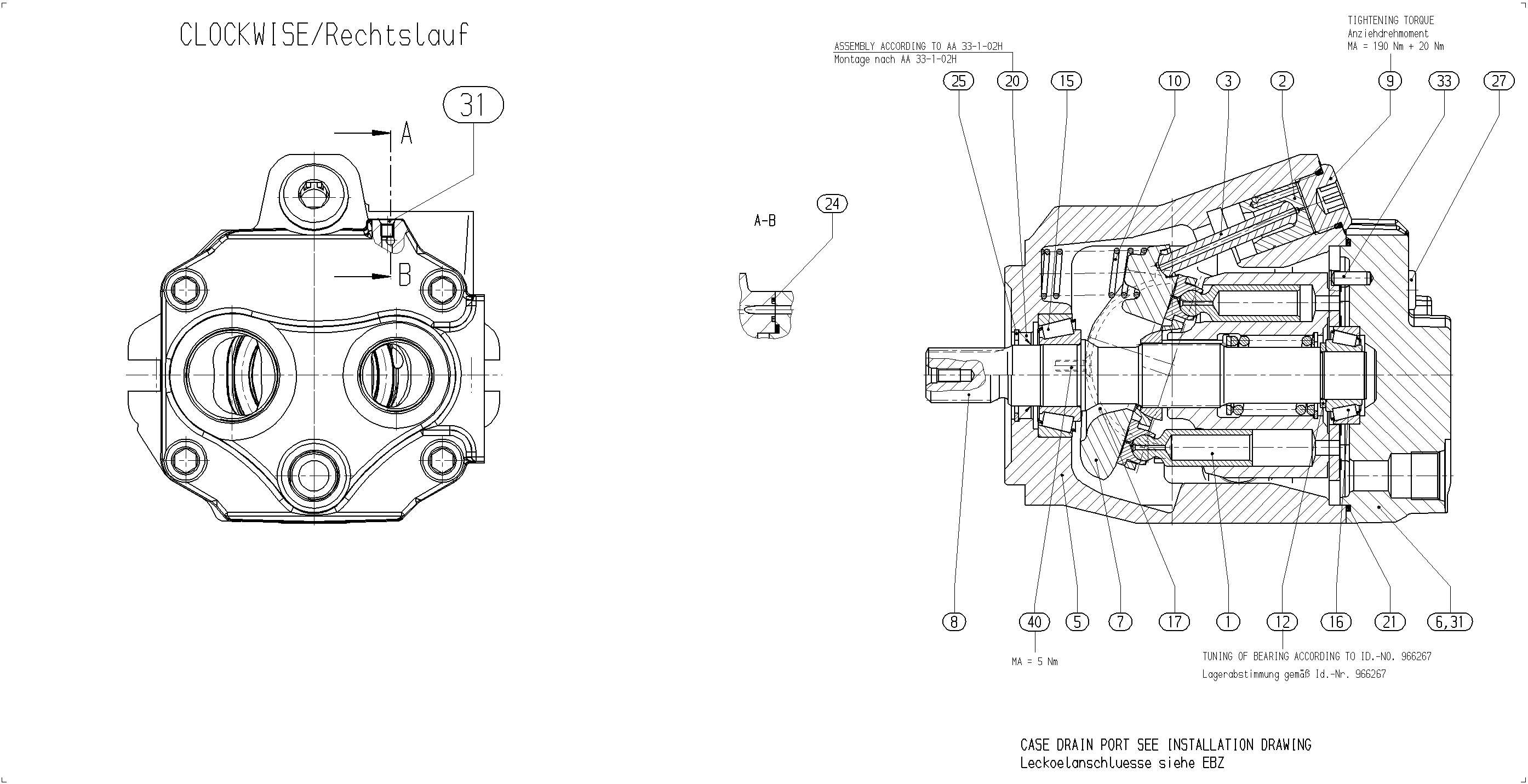

Baugruppe
BASE UNITR902566015
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902415875 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| 5 | R902503463 | PUMP HOUSING | 1 | |
| 6 | R902477426 | CONNECTION PLATE | 1 | |
| 7 | R902476979 | SWASH PLATE | 1 | |
| R910992268 | DRIVE SHAFT | 1 | ||
| R902512654 | SCREW PLUG | 1 | ||
| R910928606 | COMPRESSION SPRING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R902445112 | BEARING SHELL | 2 | ||
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| R913005675 | O-RING | 1 | ||
| R902650290 | O-RINGD | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910110248 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| 34 | R910967343 | SCREW PLUG | 2 | |
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| 50 | R902482486 | ADAPTER PLATE | 1 | |
| 51 | 2910130191 | SOCKET HEAD CAP SCREW | 1 | |
| 52 | R910585351 | STRAIGHT PIN | 2 |
