Baugruppe

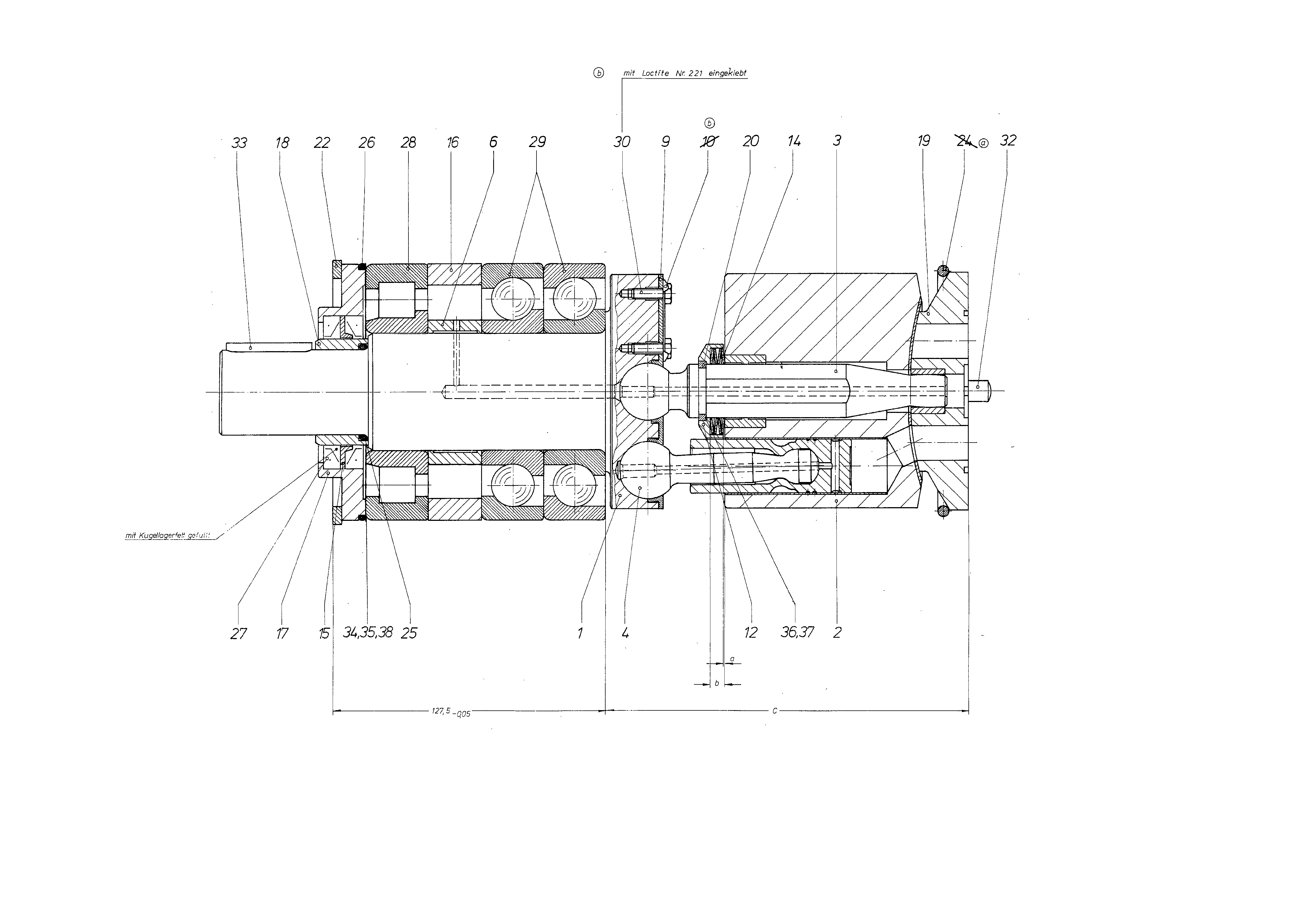

ROTARY GROUPR909063534
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909073398 | DRIVE SHAFT | 1 | |
| 2 | R909404099 | CYLINDER | 1 | |
| R909062889 | CENTER PIN | 1 | ||
| R909069099 | PISTON/PISTON ROD | 7 | ||
| R909062583 | SPACER BUSH | 1 | ||
| R902072552 | RETAINING PLATE | 1 | ||
| 12 | R909062900 | SPRING DISK | 1 | |
| R909062898 | DISC SPRING | 4 | ||
| 15 | R909087188 | SUPPORTING DISCD | 1 | |
| R909006745 | SPACER BUSH | 1 | ||
| R909062424 | LOCKING RINGD | 1 | ||
| R909412097 | CONTROL PLATE Stückliste der Baugruppe →L | 1 | ||
| 20 | R909062899 | RING | 1 | |
| R909083419 | RETAINING RING | 1 | ||
| R909086538 | O-RINGD | 1 | ||
| R909830386 | SHAFT SEALING RINGD | 2 | ||
| R909087625 | CYL. ROLLER BEARING | 1 | ||
| R913032714 | ANG. CONTACT BALL BEARING | 2 | ||
| R902602493 | PAN-HEAD SCREW | 14 | ||
| 32 | R909062902 | STRAIGHT PIN | 1 | |
| R909084431 | PARALLEL KEY | 1 | ||
| 34 | R909084591 | SHIM RING | 2 | |
| 35 | R909084594 | SHIM RING | 1 | |
| 36 | R909087160 | SHIM RING | 1 | |
| 37 | R909087380 | SHIM RING | 1 | |
| 38 | R909085948 | SHIM RING | 1 |
