Baugruppe

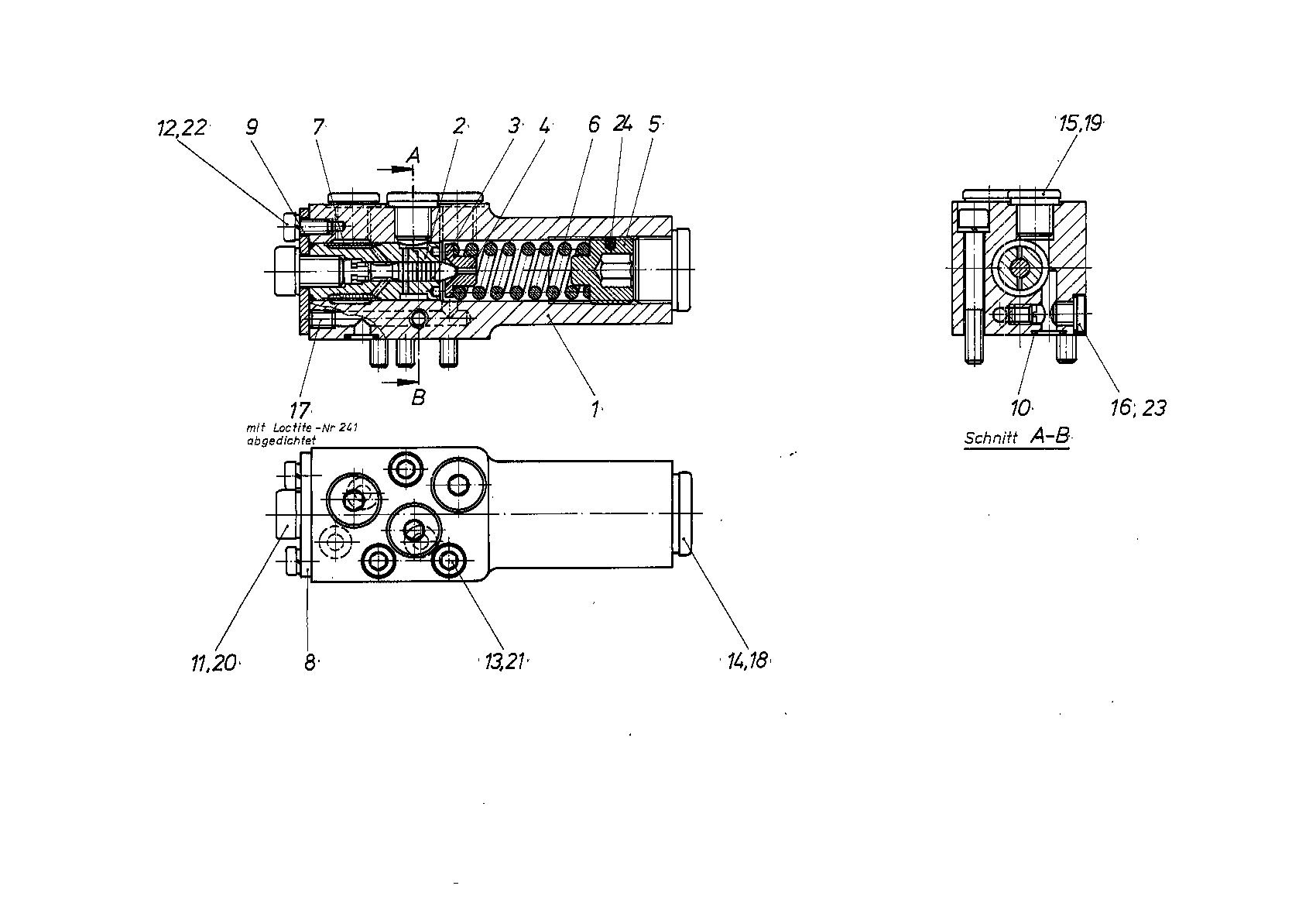

SEQUENCE VALVER909065185
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909063924 | HOUSING | 1 | |
| 2 | R909063920 | CONTROL BUSH | 1 | |
| 3 | R909063918 | PISTON | 1 | |
| 4 | R909449507 | SPRING DISK | 1 | |
| 5 | R909065483 | STRAINING SCREW | 1 | |
| 6 | R909057023 | COMPRESSION SPRING | 1 | |
| R909063919 | STRAINER ELEMENT | 1 | ||
| R909063931 | COVER | 1 | ||
| 9 | R902600645 | O-RINGD | 1 | |
| 10 | R909085577 | O-RINGD | 3 | |
| 11 | R909084388 | SOCKET HEAD CAP SCREW | 1 | |
| R909083184 | SOCKET HEAD CAP SCREW | 3 | ||
| 13 | R909083027 | SOCKET HEAD CAP SCREW | 3 | |
| 14 | R909083225 | SCREW PLUG | 1 | |
| R909083219 | SCREW PLUG | 3 | ||
| 16 | R909087873 | SCREW PLUG | 1 | |
| 17 | R909083491 | SETSCREW | 1 | |
| 18 | R909152734 | SEAL RINGD | 1 | |
| R909152726 | SEAL RINGD | 3 | ||
| 20 | R909085632 | SEAL RINGD | 1 | |
| 21 | R909083249 | SPRING LOCK WASHER | 3 | |
| R909083248 | SPRING LOCK WASHER | 3 | ||
| 23 | R909152724 | SEAL RINGD | 1 |
