Baugruppe

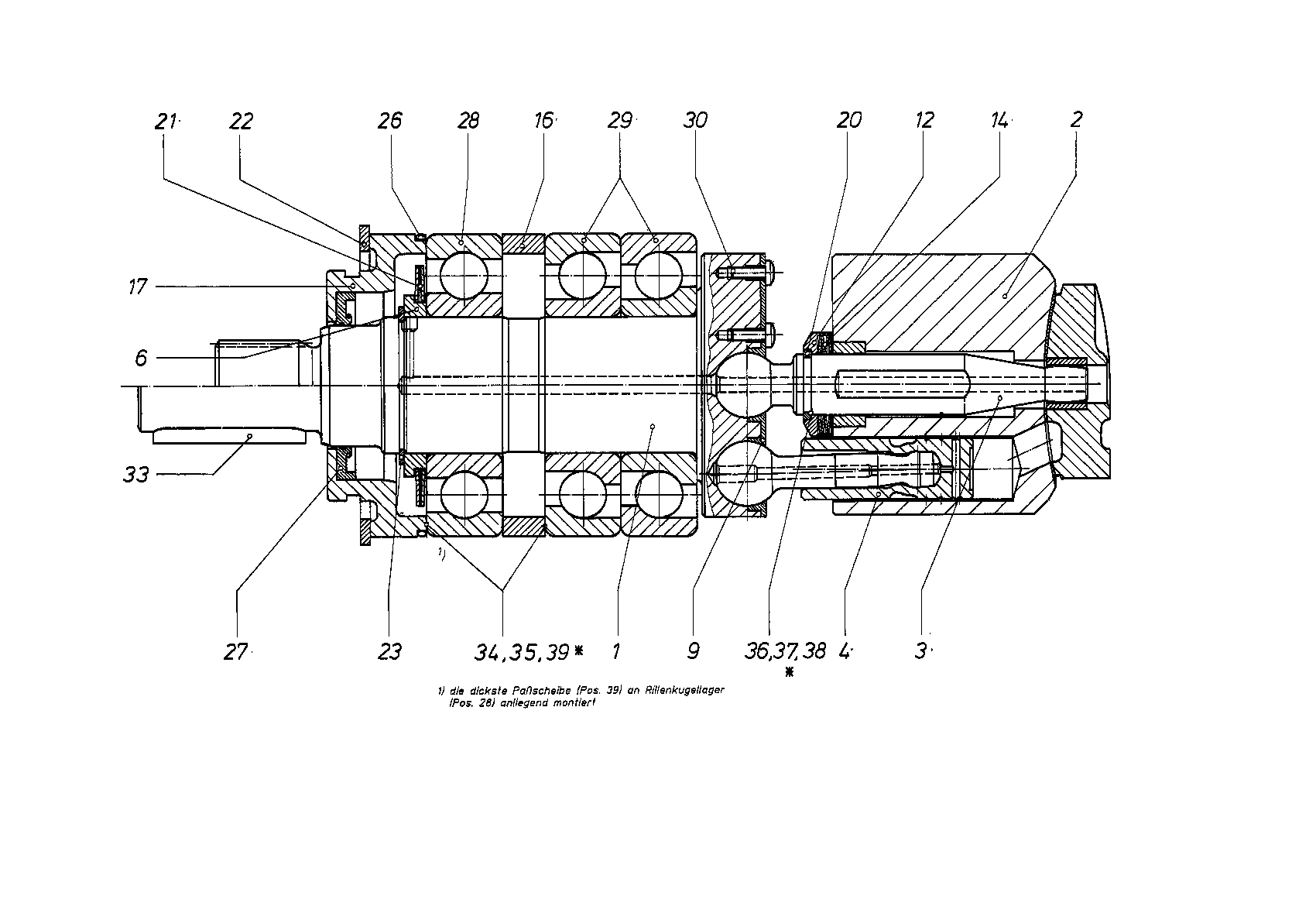

ROTARY GROUPR909066822
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909073331 | DRIVE SHAFT | 1 | ||
| R909078539 | CYLINDER | 1 | ||
| R909060489 | CENTER PIN | 1 | ||
| R910595845 | BALL ROD | 7 | ||
| 6 | R909006737 | SPRING DISK | 1 | |
| R910595675 | RETAINING PLATE | 1 | ||
| R909078911 | SPRING DISK | 1 | ||
| 14 | R909060569 | DISC SPRING | 4 | |
| R909006744 | SPACER BUSH | 1 | ||
| R909072684 | LOCKING RINGD | 1 | ||
| R909003162 | RING | 1 | ||
| 21 | R909006730 | SPECIAL DISK SPRING | 2 | |
| R909083422 | RETAINING RING | 1 | ||
| R909083369 | RETAINING RING | 1 | ||
| R909083852 | O-RINGD | 1 | ||
| R909152970 | SHAFT SEALING RING | 1 | ||
| 28 | R909085482 | DEEP-GROOVE BALL BEARING | 1 | |
| R909154765 | ANG. CONTACT BALL BEARING | 2 | ||
| R902602395 | PAN-HEAD SCREW | 14 | ||
| 34 | R909084595 | SHIM RING | 2 | |
| 35 | R909085943 | SHIM RING | 1 | |
| 36 | R909087154 | SHIM RING | 1 | |
| 37 | R909087450 | SHIM RING | 1 | |
| 38 | R909154023 | SHIM RING | 1 |
