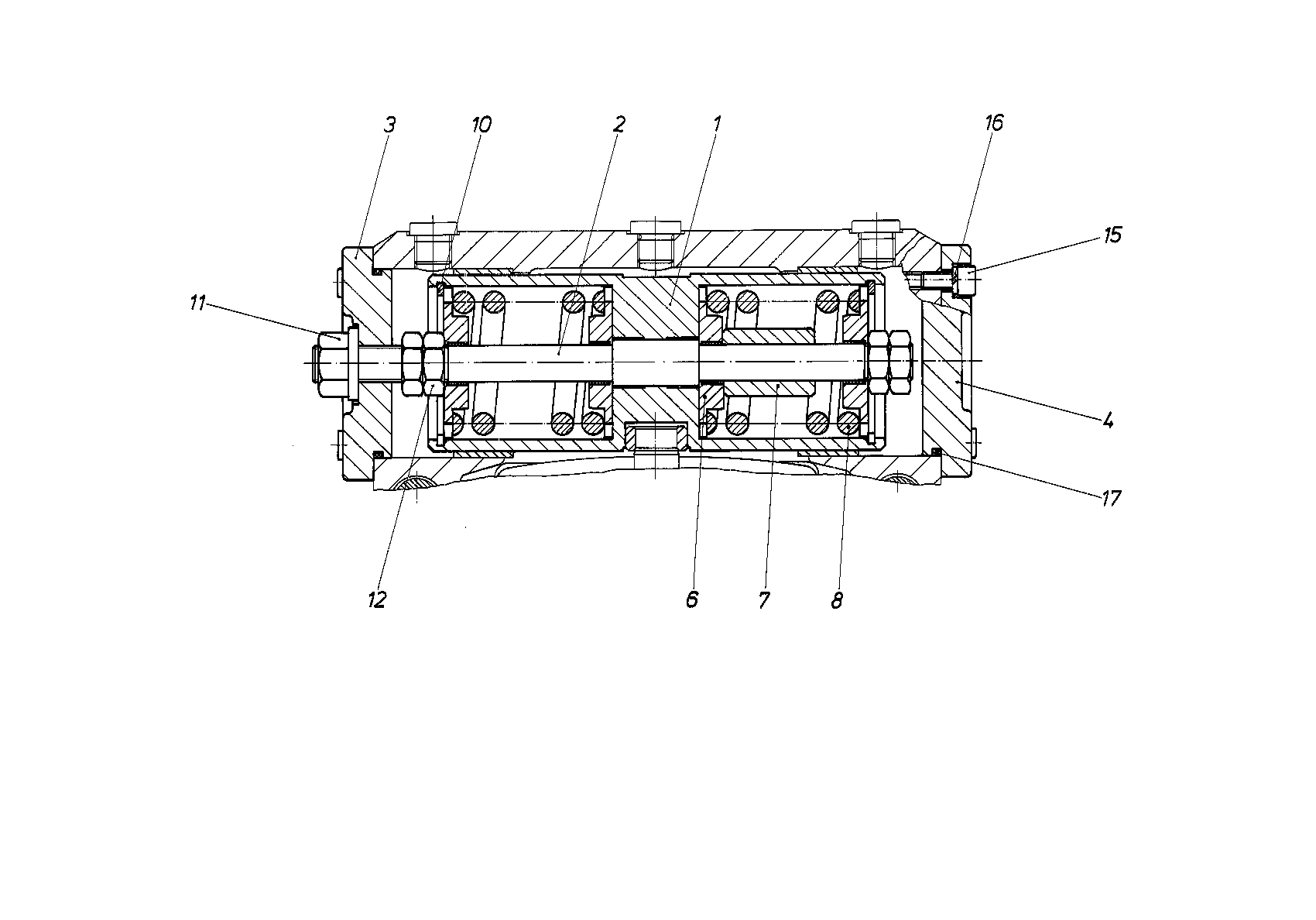

Baugruppe
DUMMYR909074174
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909074168 | POSITIONING PISTON | 1 | ||
| 2 | R909069463 | ROD | 1 | |
| R909074169 | COVER | 1 | ||
| R909078151 | COVER | 1 | ||
| 6 | R909074289 | SPRING DISK | 4 | |
| R909078355 | SPACER BUSHING | 1 | ||
| R909078356 | SPACER BUSHING | 1 | ||
| R909078357 | SPACER BUSHING | 1 | ||
| 8 | R909422382 | COMPRESSION SPRING | 2 | |
| R909084444 | RETAINING RING | 2 | ||
| 11 | R909087405 | SEALING NUTD | 1 | |
| R909154918 | HEXAGON NUT | 4 | ||
| 15 | R909083018 | SOCKET HEAD CAP SCREW | 8 | |
| R909083249 | SPRING LOCK WASHER | 8 | ||
| 17 | R902600658 | O-RINGD | 2 |
