Baugruppe

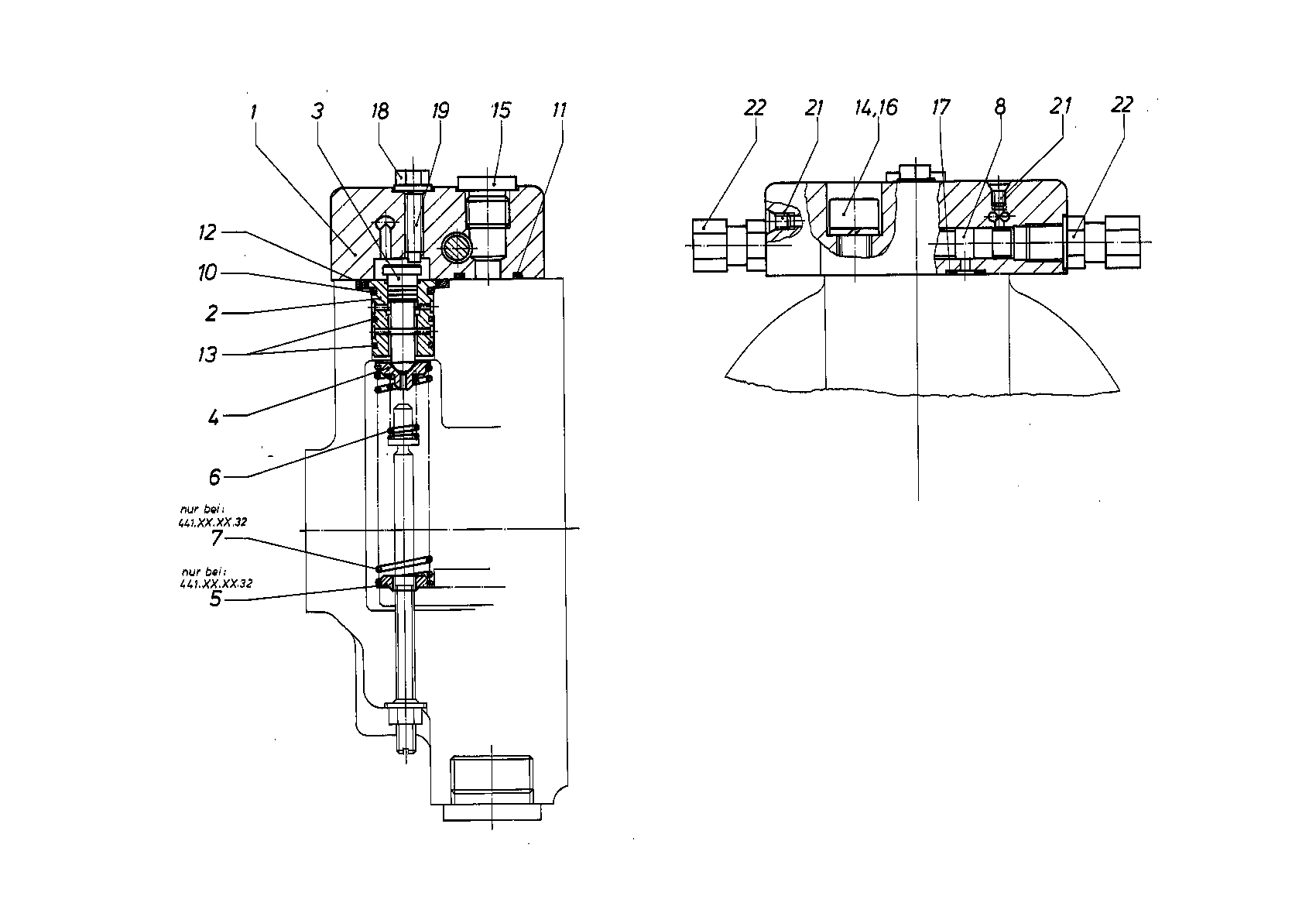

CONTROL PARTR909077713
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909409470 | COVER | 1 | ||
| R909076742 | CONTROL BUSH | 1 | ||
| R909072969 | CONTROL PISTON | 1 | ||
| R909069255 | SPRING DISK | 1 | ||
| R909074464 | COMPRESSION SPRING | 1 | ||
| R909412466 | SLIDE | 1 | ||
| R909086435 | O-RINGD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R909083797 | O-RINGD | 1 | ||
| R909153873 | R-RINGD | 2 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909083252 | SPRING LOCK WASHER | 4 | ||
| R909085709 | O-RING | 2 | ||
| R909152425 | SEALING NUT | 1 | ||
| R909154777 | SETSCREW | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909409598 | THREADED FASTENER | 2 |
