Baugruppe

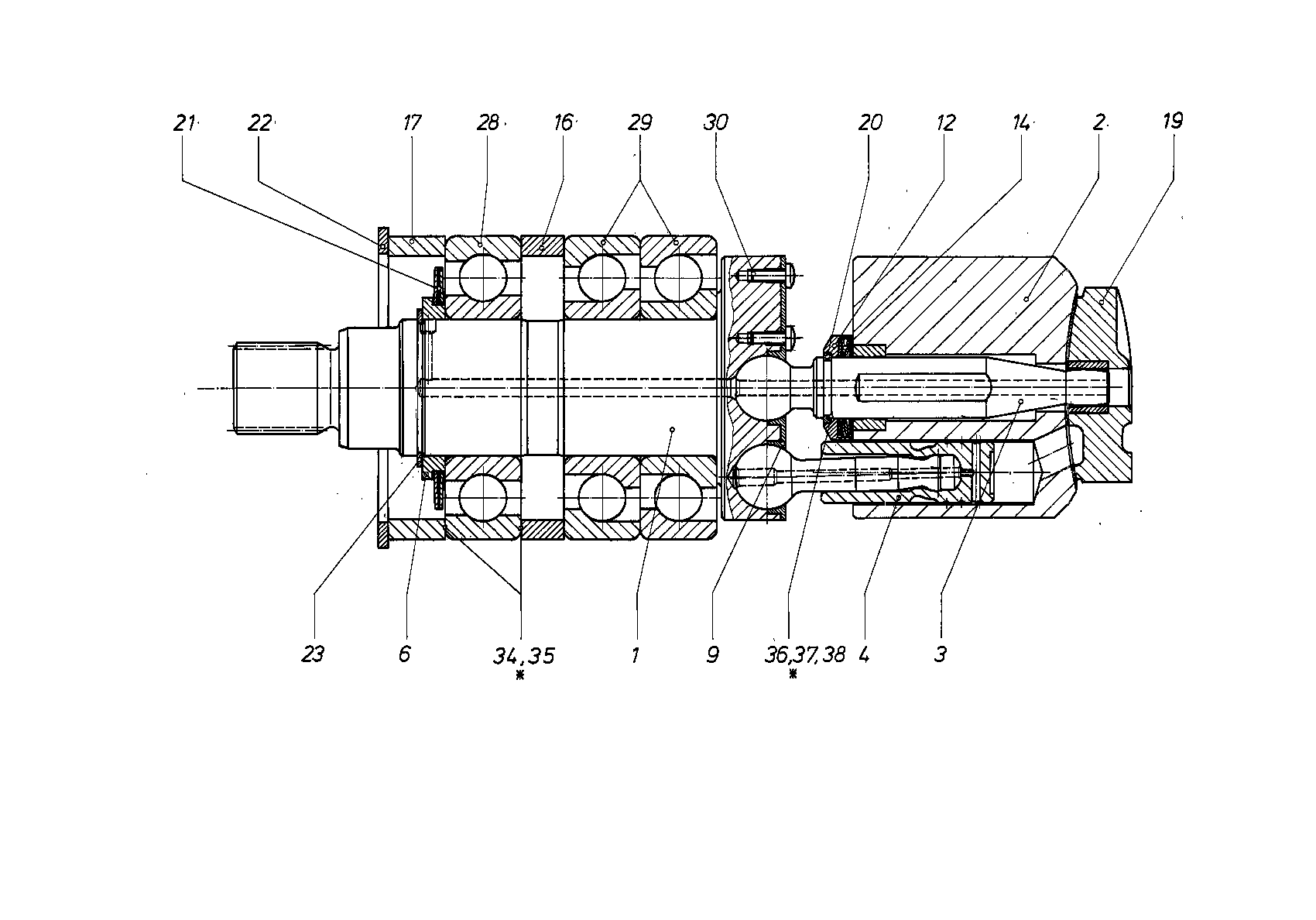

ROTARY GROUPR909078471
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909072850 | DRIVE SHAFT | 1 | ||
| R909404100 | CYLINDER | 1 | ||
| R909060118 | CENTER PIN | 1 | ||
| R909069120 | PISTON/PISTON ROD | 7 | ||
| R909449381 | SPRING DISK | 1 | ||
| R902024999 | RETAINING PLATE | 1 | ||
| R909060393 | SPRING DISK | 1 | ||
| 14 | R909060355 | DISC SPRING | 4 | |
| 16 | R909006745 | SPACER BUSH | 1 | |
| 17 | R909078016 | SPACER RING | 1 | |
| R909401600 | CONTROL LENS | 1 | ||
| R909001040 | RING | 1 | ||
| 21 | R909006731 | SPECIAL DISK SPRING | 2 | |
| 22 | R909083419 | RETAINING RING | 1 | |
| 23 | R909083365 | RETAINING RING | 1 | |
| 28 | R913023200 | DEEP-GROOVE BALL BEARING | 1 | |
| 29 | R913032714 | ANG. CONTACT BALL BEARING | 2 | |
| R902602493 | PAN-HEAD SCREW | 14 | ||
| 34 | R909084591 | SHIM RING | 2 | |
| R909084594 | SHIM RING | 1 | ||
| R909087160 | SHIM RING | 1 | ||
| R909087380 | SHIM RING | 1 |
