Baugruppe

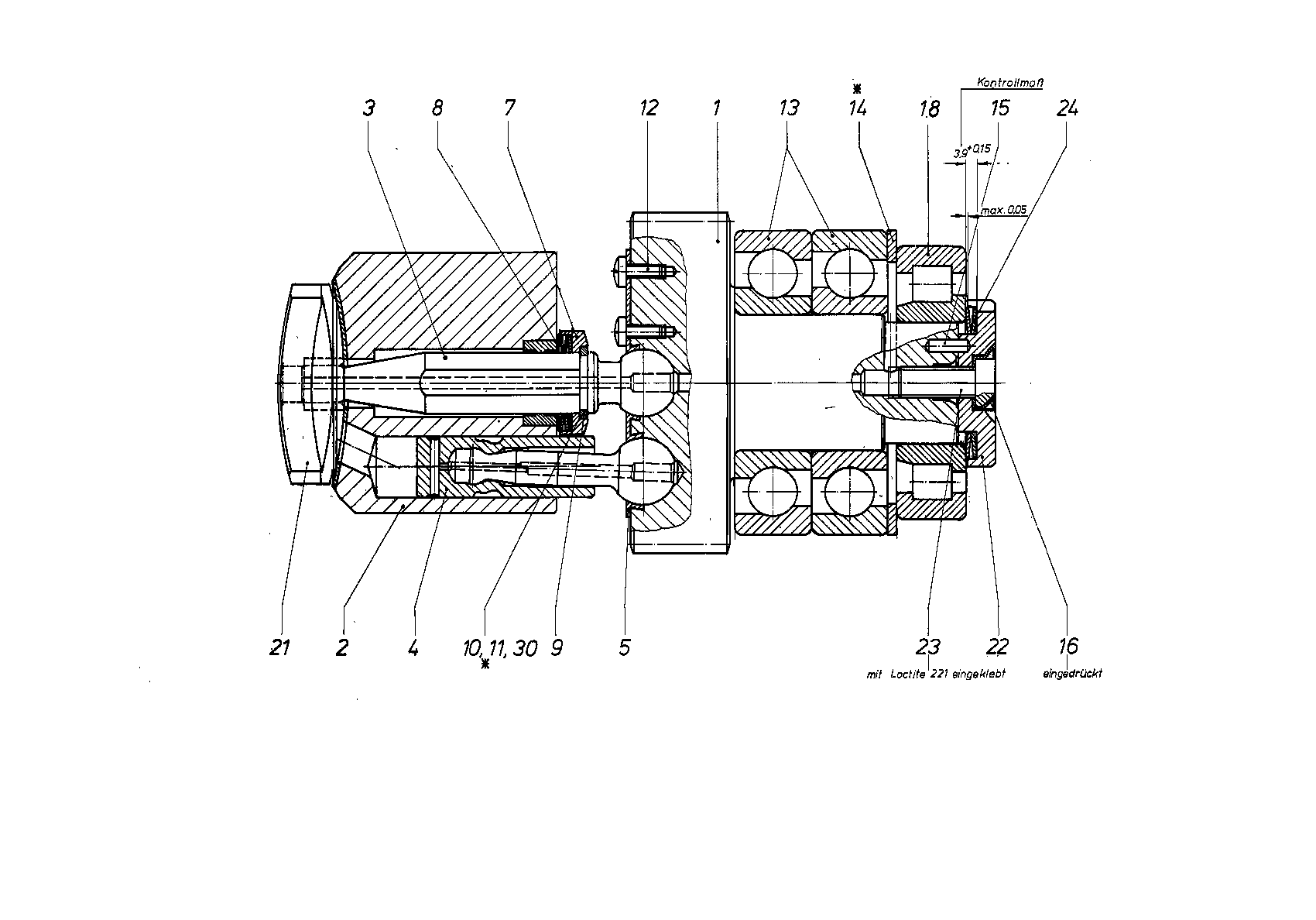

ROTARY GROUPR909078838
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909078829 | DRIVE SHAFT | 1 | ||
| R909404098 | CYLINDER | 1 | ||
| R909060083 | CENTER PIN | 1 | ||
| R909069123 | PISTON/PISTON ROD | 7 | ||
| R902072551 | RETAINING PLATE | 1 | ||
| R909445614 | SPRING DISK | 1 | ||
| R909060102 | DISC SPRING | 4 | ||
| 9 | R909001026 | RING | 1 | |
| R909087152 | SHIM RING | 3 | ||
| R909087181 | SHIM RING | 1 | ||
| R902602776 | PAN-HEAD SCREW | 14 | ||
| 13 | R913032712 | ANG. CONTACT BALL BEARING | 2 | |
| 14 | R909078826 | SHIM RING | 1 | |
| 14 | R909078827 | SHIM RING | 1 | |
| 14 | R909078828 | SHIM RING | 1 | |
| 14 | R909078904 | SHIM RING | 1 | |
| 2917890095 | STRAIGHT PIN | 1 | ||
| R909154069 | SAFETY CUP | 1 | ||
| R909154177 | CYL. ROLLER BEARING | 1 | ||
| 21 | R909071911 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | |
| 22 | R909078831 | COVER | 1 | |
| 22 | R909078887 | COVER | 1 | |
| 22 | R909078888 | COVER | 1 | |
| R909078825 | SOCKET HEAD CAP SCREW | 1 | ||
| 24 | R909060569 | DISC SPRING | 2 | |
| 30 | R909087153 | SHIM RING | 2 |
