Baugruppe

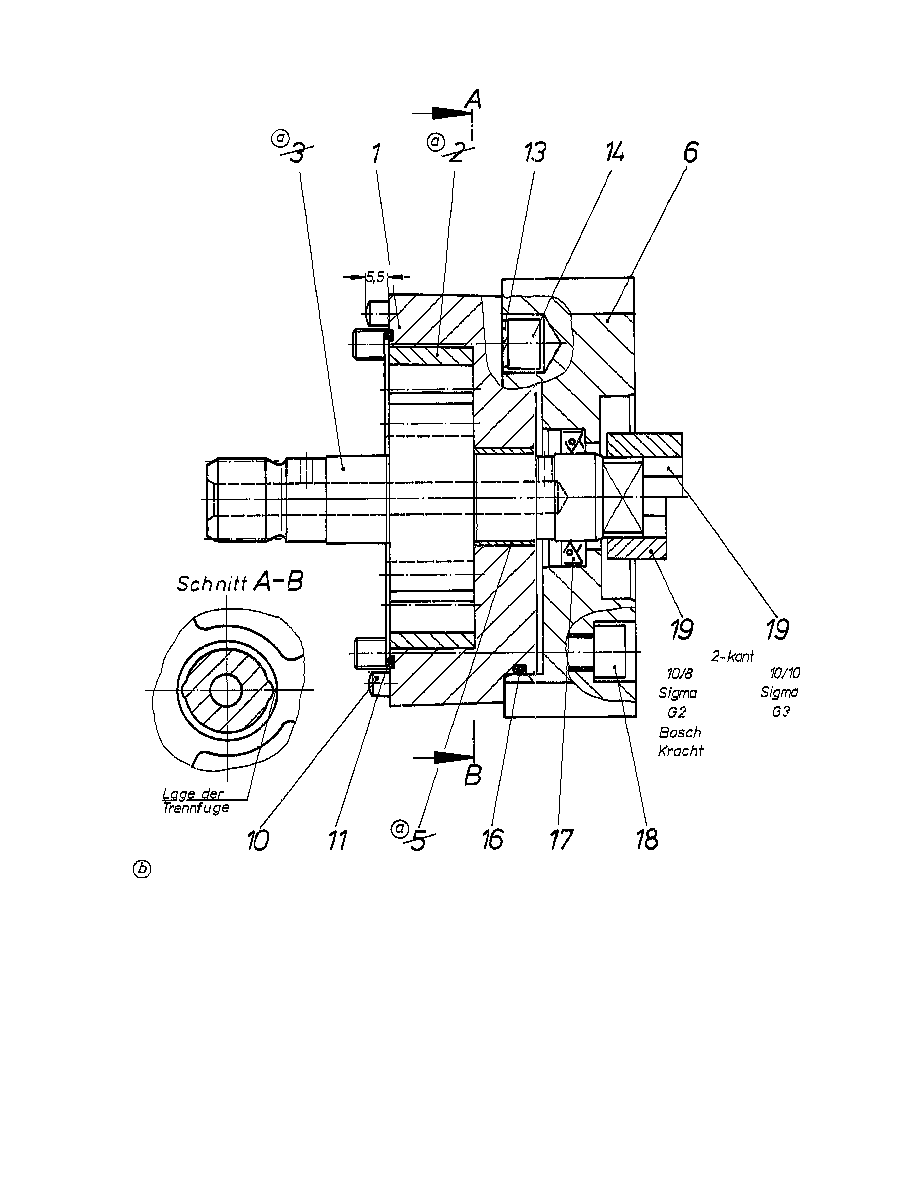

INTERNAL GEAR PUMPR909080129
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909403615 | PUMP COVER Stückliste der Baugruppe →L | 1 | ||
| R909079265 | FLANGE | 1 | ||
| 10 | R909084162 | STRAIGHT PIN | 2 | |
| 11 | R909086720 | O-RINGD | 1 | |
| 13 | R909083250 | SPRING LOCK WASHER | 2 | |
| 14 | R909083042 | SOCKET HEAD CAP SCREW | 2 | |
| 16 | R909085360 | O-RINGD | 1 | |
| 17 | R909154128 | ROTARY SHAFT LIP SEALD | 1 | |
| R909083046 | SOCKET HEAD CAP SCREW | 2 | ||
| R909403668 | COUPLING ADAPTER | 1 | ||
| R909403669 | COUPLING ADAPTER | 1 |
