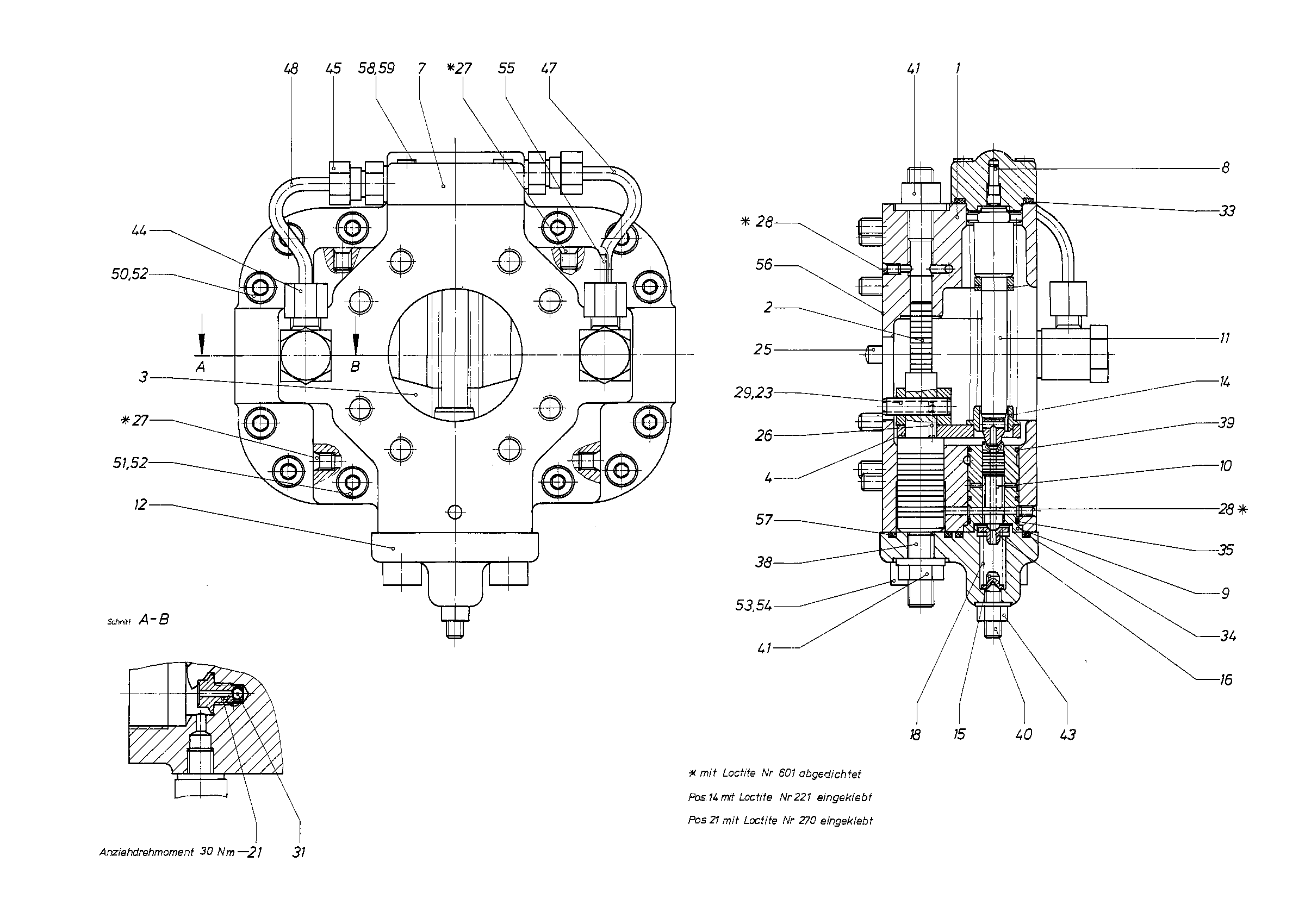

Baugruppe
POWER REGULATORR909400211
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909080754 | CONTROL HOUSING | 1 | ||
| R909072701 | POSITIONING PISTON | 1 | ||
| R909072700 | SWIVEL FORK | 1 | ||
| R909072697 | CARRIER | 1 | ||
| R909075002 | CONTROL HEAD | 1 | ||
| R909075003 | DIFFERENTIAL PISTON | 1 | ||
| R909079539 | CONTROL BUSH | 1 | ||
| R909074401 | CONTROL PISTON | 1 | ||
| R909402256 | SPRING ROD | 1 | ||
| R909072698 | COVER | 1 | ||
| R909072703 | SPRING DISK | 1 | ||
| R909417605 | SPRING DISK | 1 | ||
| R909074406 | SPRING DISK | 1 | ||
| R909077200 | COMPRESSION SPRING | 1 | ||
| R909074796 | SCREW | 2 | ||
| R909085967 | SLOTTED SPRING PIN | 1 | ||
| R909075982 | STRAIGHT PIN | 2 | ||
| R909151658 | HALF LENGTH TPR GRVD DOWEL PIN | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909087518 | SLOTTED SPRING PIN | 1 | ||
| R909083258 | BALL | 2 | ||
| R909083803 | O-RINGD | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909086432 | O-RINGD | 1 | ||
| R909086077 | SETSCREW | 1 | ||
| R909157306 | R-RINGD | 2 | ||
| R909086268 | SETSCREW | 1 | ||
| R909152459 | SEALING NUTD | 2 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909404247 | HYDRAULIC LINE Stückliste der Baugruppe →L | 1 | ||
| R909404241 | HYDRAULIC LINE Stückliste der Baugruppe →L | 1 | ||
| R909083038 | SOCKET HEAD CAP SCREW | 10 | ||
| R909083046 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083250 | SPRING LOCK WASHER | 12 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083252 | SPRING LOCK WASHER | 4 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R902011880 | SEALD | 1 | ||
| R909083763 | O-RINGD | 1 | ||
| R909085373 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083248 | SPRING LOCK WASHER | 4 |
