Baugruppe

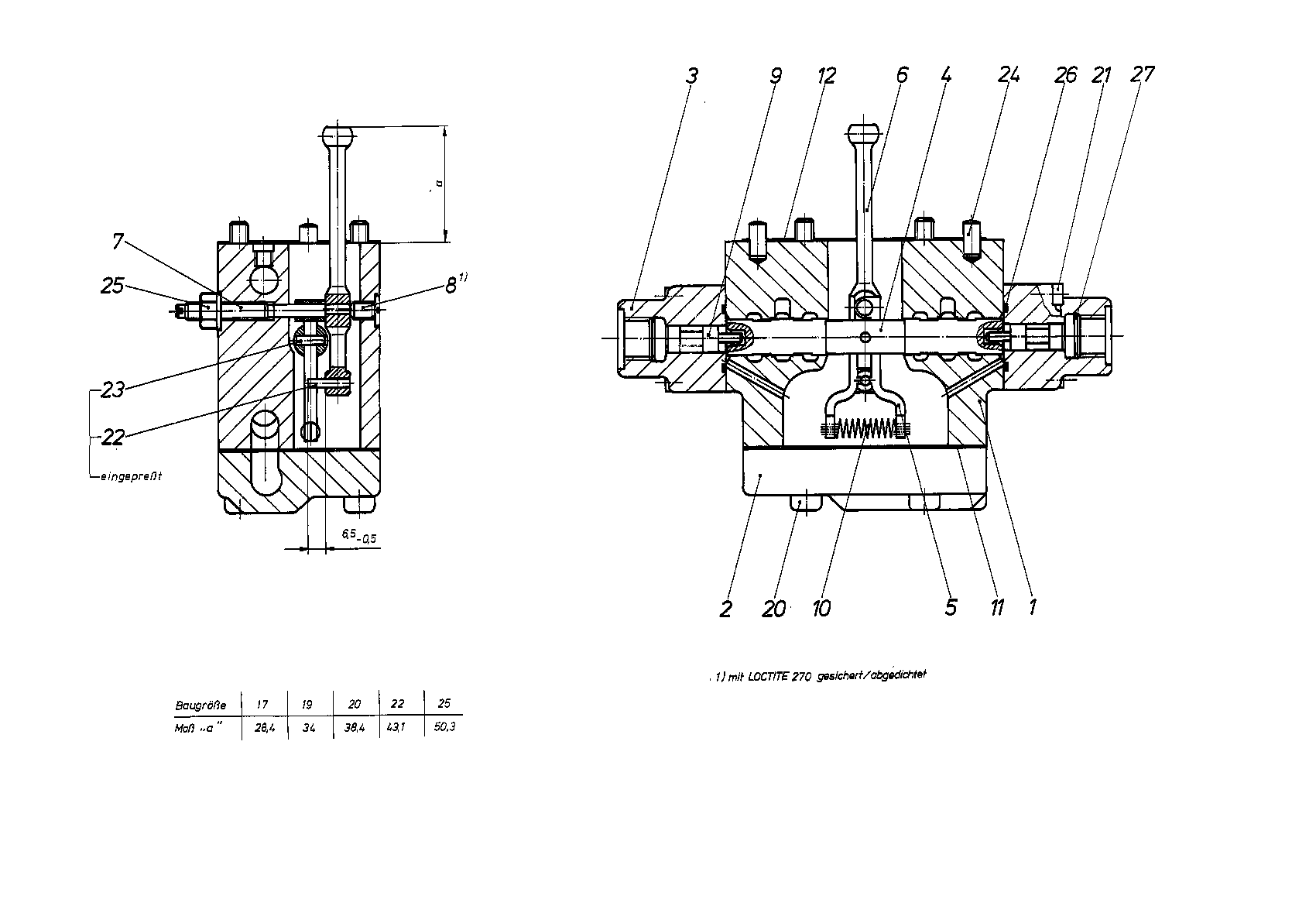

CONTROL UNITR909400489
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909412125 | HOUSING | 1 | ||
| 2 | R902081188 | COVER Stückliste der Baugruppe →L | 1 | |
| 3 | R909651539 | HOUSING | 2 | |
| 4 | R909650534 | CONTROL PISTON | 1 | |
| 5 | R909415654 | LEVER | 2 | |
| 6 | R909400494 | FEEDBACK LEVER | 1 | |
| R909412262 | ECCENTRIC PIN | 1 | ||
| 8 | R909408720 | ASSEMBLY BOLT | 1 | |
| 9 | R909439379 | PISTON | 2 | |
| 10 | R909440849 | EXTENSION SPRING | 1 | |
| 11 | R909419287 | SEALD | 1 | |
| 12 | R909419288 | SEALD | 1 | |
| 20 | R909086080 | SOCKET HEAD CAP SCREW | 4 | |
| 21 | R909083005 | SOCKET HEAD CAP SCREW | 8 | |
| 22 | R909156147 | NEEDLE-ROLLER | 1 | |
| 23 | R909151552 | NEEDLE-ROLLER | 1 | |
| 24 | R913009677 | STRAIGHT PIN | 2 | |
| R909152425 | SEALING NUTD | 1 | ||
| 26 | R909083737 | O-RINGD | 2 | |
| 27 | R909156539 | SNAP RING | 2 |
