Baugruppe

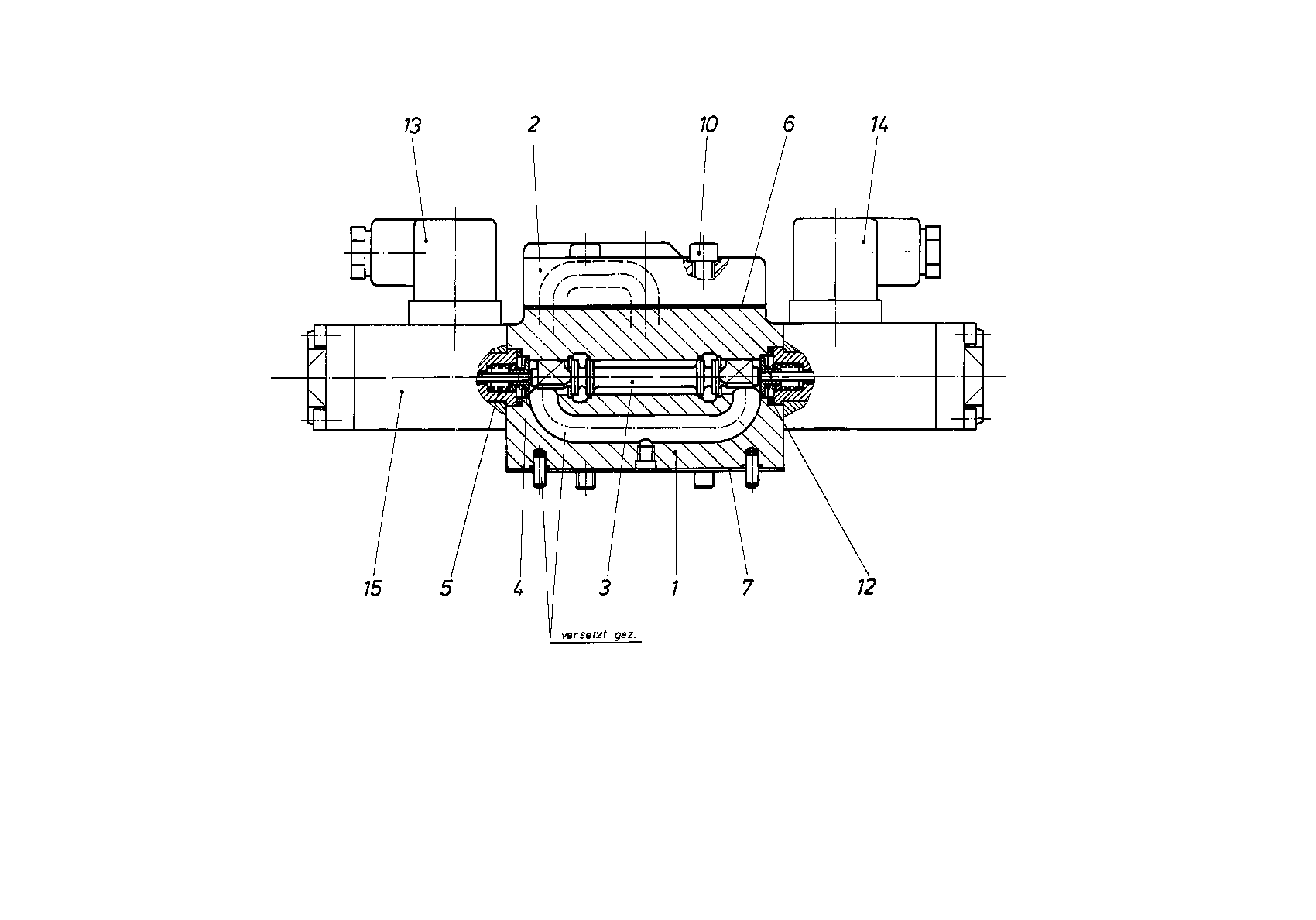

DIRECTIONAL-CONTROL VALVER909400500
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909400501 | VALVE HOUSING | 1 | |
| 2 | R902081188 | COVER Stückliste der Baugruppe →L | 1 | |
| R909921478 | CONTROL PISTON | 1 | ||
| R909400503 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| R909419287 | SEALD | 1 | ||
| R909419288 | SEALD | 1 | ||
| R909086491 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083734 | O-RINGD | 2 | ||
| R913022796 | PLUG-IN CONNECTOR | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R909428265 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 2 | ||
| 98 | R902166721 | SEAL KIT | 1 |
