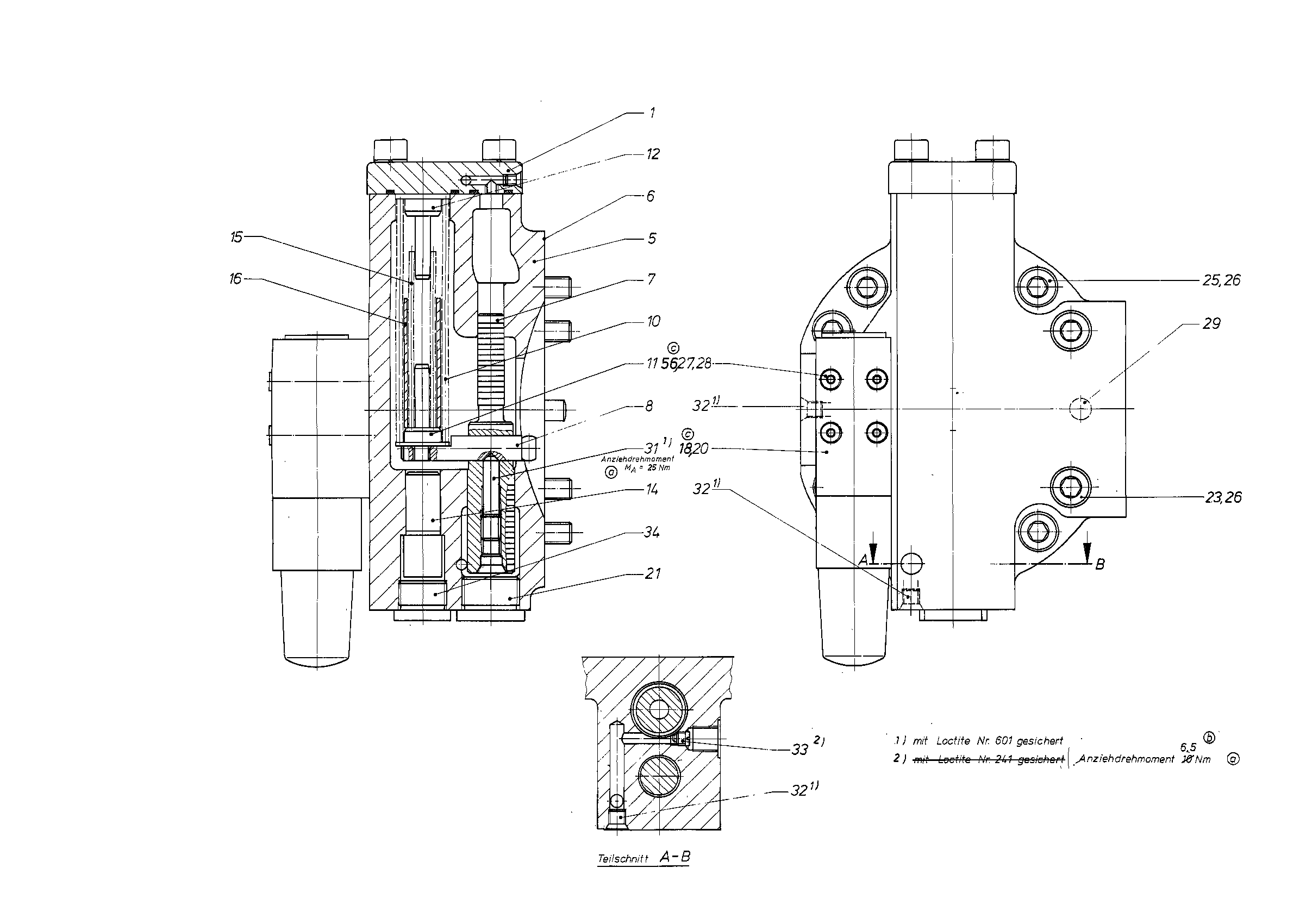

Baugruppe
CONTROLR909406756
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909406775 | COVER Stückliste der Baugruppe →L | 1 | |
| 5 | R909406755 | COVER PLATE, COUNTER CLOCKWISE | 1 | |
| 6 | R902011877 | SEALD | 1 | |
| R909417748 | POSITIONING PISTON | 1 | ||
| 8 | R909073756 | POSITIONING STUD | 1 | |
| 10 | R909073839 | COMPRESSION SPRING | 1 | |
| 11 | R909405249 | SPRING BOLT | 1 | |
| 12 | R909405250 | SPRING BOLT | 1 | |
| 14 | R909079674 | PLUG | 1 | |
| 15 | R909405247 | COMPRESSION SPRING | 1 | |
| 16 | R909405251 | GUIDE SLEEVE | 1 | |
| 18 | R909424053 | INTERMEDIATE PLATE | 1 | |
| 20 | R909154767 | SEQUENCE VALVE | 1 | |
| 21 | R909153365 | SCREW PLUGD | 1 | |
| R909083074 | SOCKET HEAD CAP SCREW | 2 | ||
| 25 | R909083062 | SOCKET HEAD CAP SCREW | 6 | |
| R909083251 | SPRING LOCK WASHER | 8 | ||
| 27 | R909084360 | SOCKET HEAD CAP SCREW | 4 | |
| 28 | R909083248 | SPRING LOCK WASHER | 4 | |
| 29 | R913009669 | STRAIGHT PIN | 2 | |
| 31 | R909409590 | SETSCREW | 1 | |
| 32 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 | |
| 33 | R909156492 | NOZZLE | 1 | |
| R909151694 | SCREW PLUGD | 1 | ||
| 56 | R909084469 | O-RINGD | 4 |
