Baugruppe
CONTROLR909406797

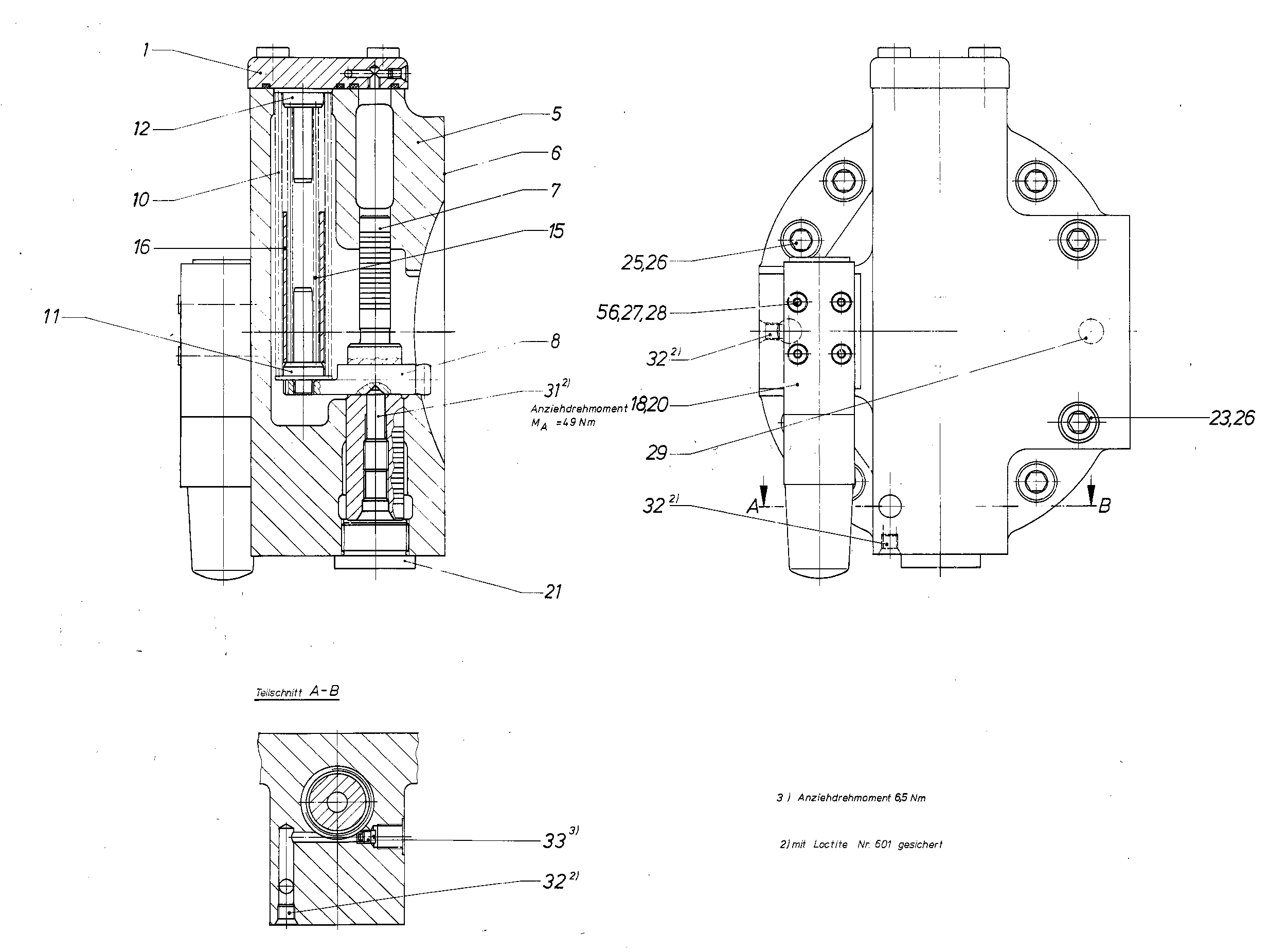

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909406785 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909406783 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902011879 | SEALD | 1 | ||
| R909417774 | POSITIONING PISTON | 1 | ||
| R909073465 | POSITIONING STUD | 1 | ||
| R909073654 | COMPRESSION SPRING | 1 | ||
| R909405253 | SPRING BOLT | 1 | ||
| R909405252 | SPRING BOLT | 1 | ||
| R909405248 | COMPRESSION SPRING | 1 | ||
| R909405254 | GUIDE SLEEVE | 1 | ||
| R909424053 | INTERMEDIATE PLATE | 1 | ||
| R909154767 | SEQUENCE VALVE | 1 | ||
| R909153497 | SCREW PLUGD | 1 | ||
| R909083105 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083252 | SPRING LOCK WASHER | 8 | ||
| R909084360 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083248 | SPRING LOCK WASHER | 4 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909409591 | SETSCREW | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156494 | NOZZLE | 1 | ||
| R909084469 | O-RINGD | 4 |
