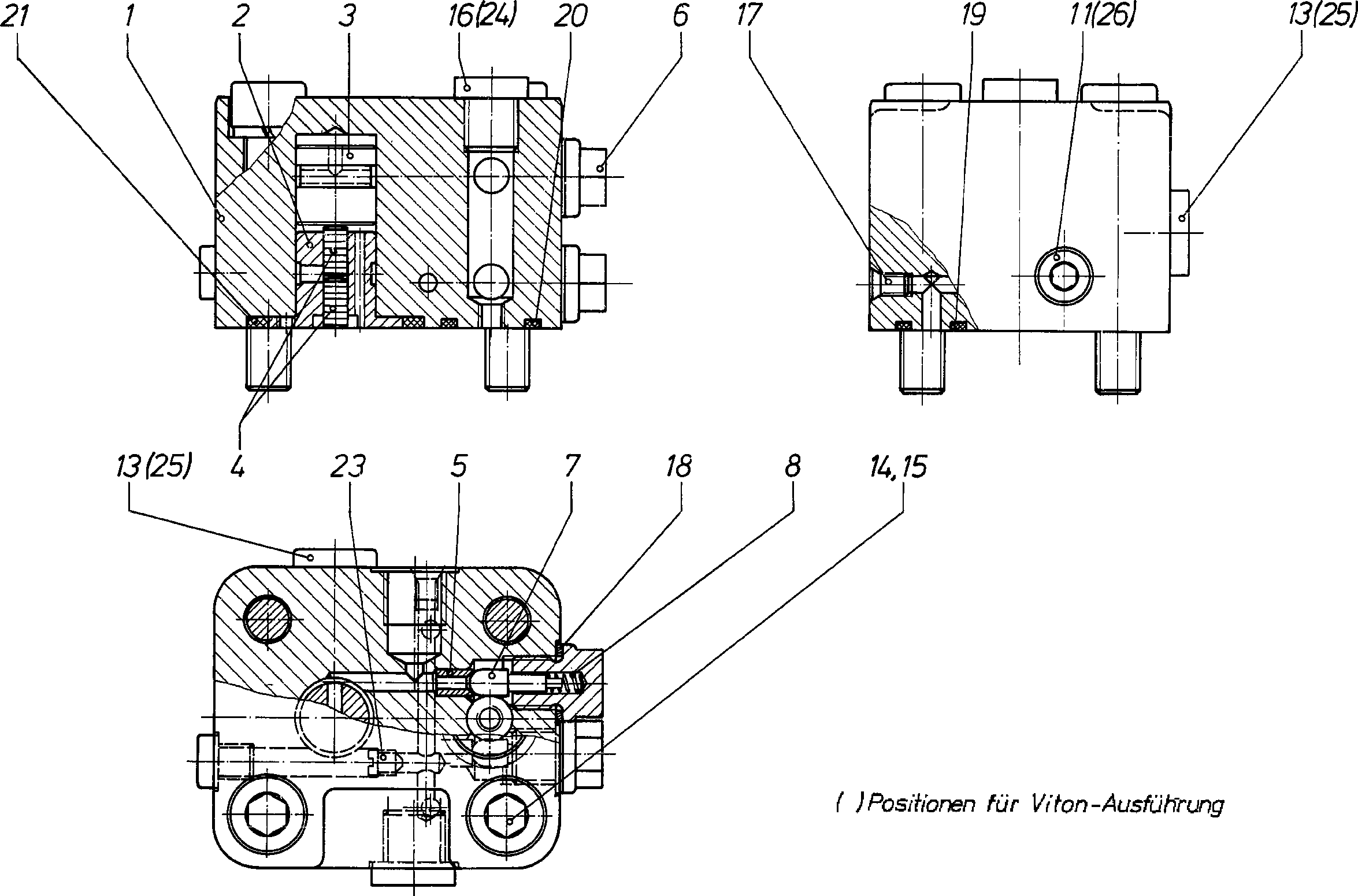

Baugruppe
COVERR909407507
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909407502 | COVER | 1 | ||
| R909078041 | CONTROL BUSH | 1 | ||
| R909411000 | CONTROL PISTON | 1 | ||
| R909073816 | PISTON | 2 | ||
| R909076095 | BUSHING | 3 | ||
| R902035187 | SCREW PLUG | 3 | ||
| R909426662 | BOLT | 3 | ||
| R909060383 | COMPRESSION SPRING | 3 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909083071 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083251 | SPRING LOCK WASHER | 4 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909084306 | SEAL RINGD | 3 | ||
| R909086729 | O-RINGD | 2 | ||
| R909083757 | O-RINGD | 1 | ||
| R909085546 | O-RINGD | 1 | ||
| R909156492 | NOZZLE | 1 |
