Baugruppe

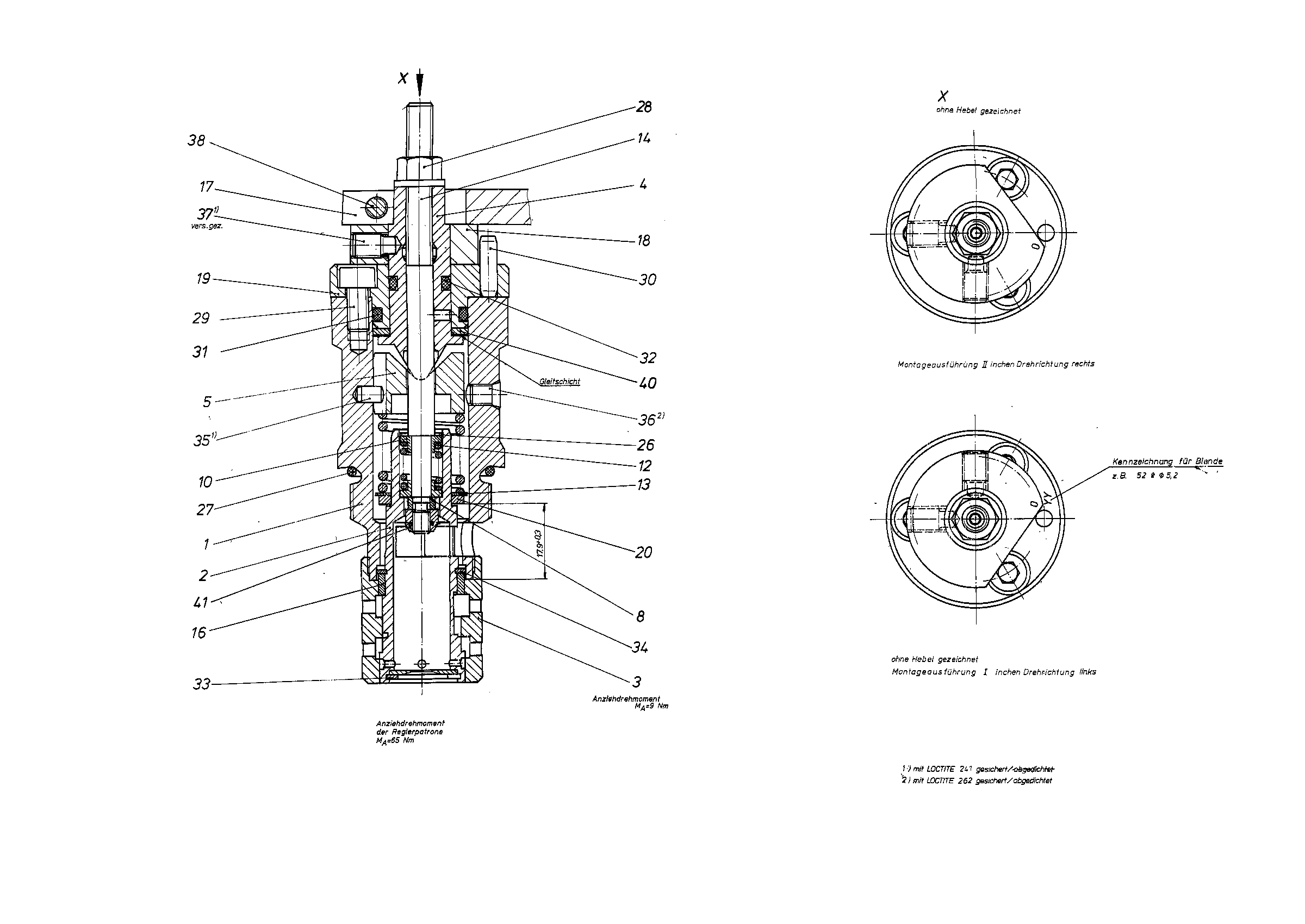

CONTROL CARTRIDGER909408167
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909404635 | CONTROL SCREW | 1 | ||
| R909421377 | DIFFERENTIAL PISTON | 1 | ||
| R909435604 | CONTROLLER PIPE | 1 | ||
| R909440883 | POSITIONING STUD | 1 | ||
| R909403623 | SPRING DISK | 1 | ||
| R909421327 | WASHER | 1 | ||
| R909414047 | SPRING DISK | 2 | ||
| R902228522 | COMPRESSION SPRING | 1 | ||
| R909400553 | WASHER | 1 | ||
| R909421077 | STUD | 1 | ||
| R909418332 | RING | 1 | ||
| R909401723 | LEVER | 1 | ||
| R909440884 | STOP DISC | 1 | ||
| R909408137 | COVER | 1 | ||
| R909404600 | WASHER | 1 | ||
| R909156476 | SNAP RING | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909083008 | SOCKET HEAD CAP SCREW | 3 | ||
| R913016375 | SLOTTED SPRING PIN | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R909083749 | O-RINGD | 1 | ||
| R909156498 | RETAINING RING | 1 | ||
| R909153847 | RETAINING RING | 1 | ||
| R909154400 | CYLINDRICAL ROLLER | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083512 | SETSCREW | 1 | ||
| R909083012 | SOCKET HEAD CAP SCREW | 1 | ||
| R909156624 | FRICTION WASHER | 1 | ||
| R909157287 | HEXAGON NUT | 1 |
