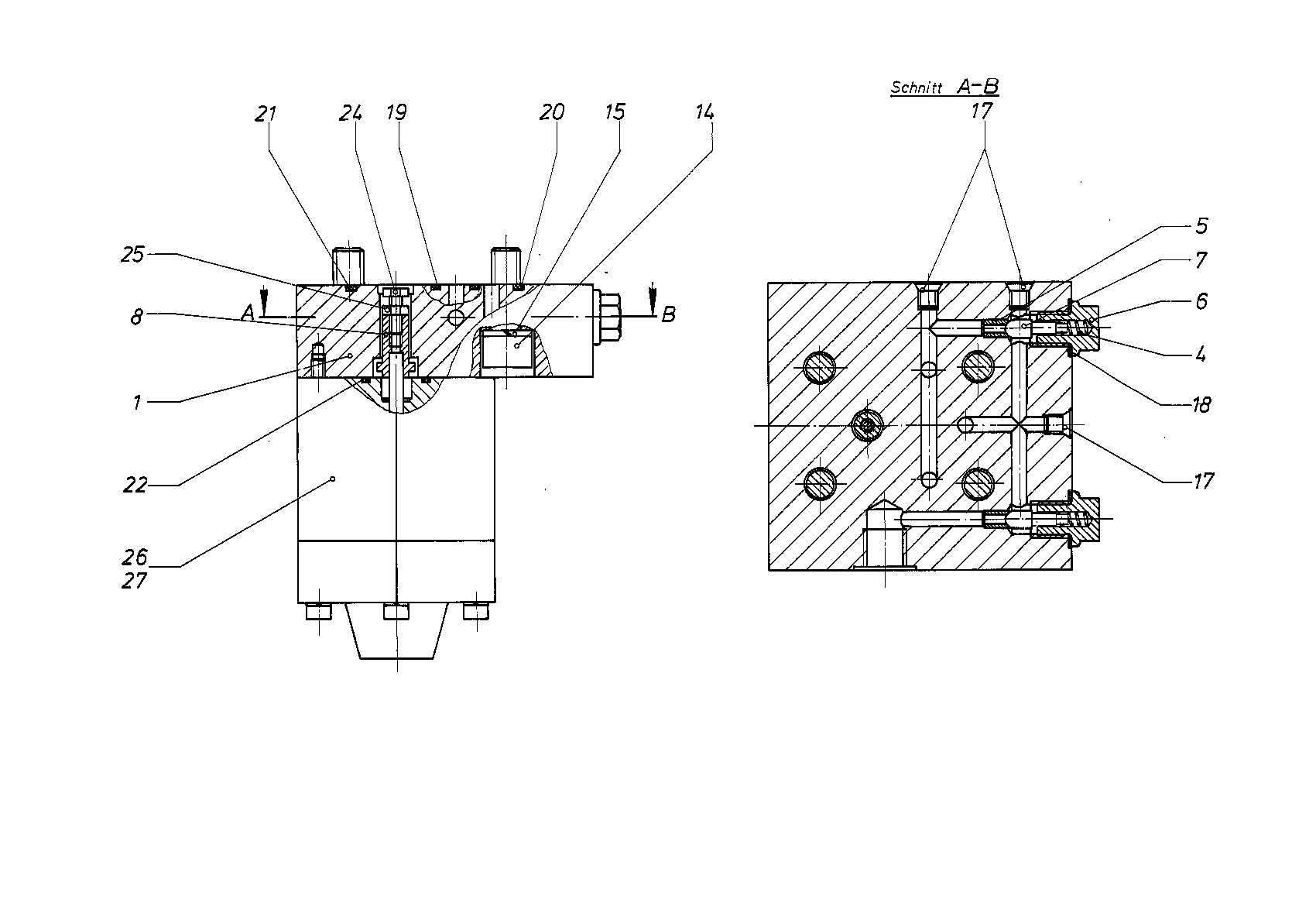

Baugruppe
COVERR909409443
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909409442 | COVER | 1 | ||
| 4 | R909060383 | COMPRESSION SPRING | 2 | |
| 5 | R909076095 | BUSHING | 2 | |
| 6 | R902035187 | SCREW PLUG | 2 | |
| 7 | R909426662 | BOLT | 2 | |
| 8 | R909405197 | INTERMEDIATE PIN | 1 | |
| R909083061 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083251 | SPRING LOCK WASHER | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| 18 | R909084306 | SEAL RINGD | 2 | |
| 19 | R909086729 | O-RINGD | 2 | |
| R909083753 | O-RINGD | 1 | ||
| R909087513 | O-RINGD | 1 | ||
| 22 | R909083737 | O-RINGD | 1 | |
| 24 | R909425667 | HEXAGON SCREW | 1 | |
| R909083609 | HEXAGON NUT | 1 | ||
| 26 | R909428283 | PROPORTIONAL SOLENOID Stückliste der Baugruppe →L | 1 | |
| R913022795 | PLUG-IN CONNECTOR | 1 |
