Baugruppe

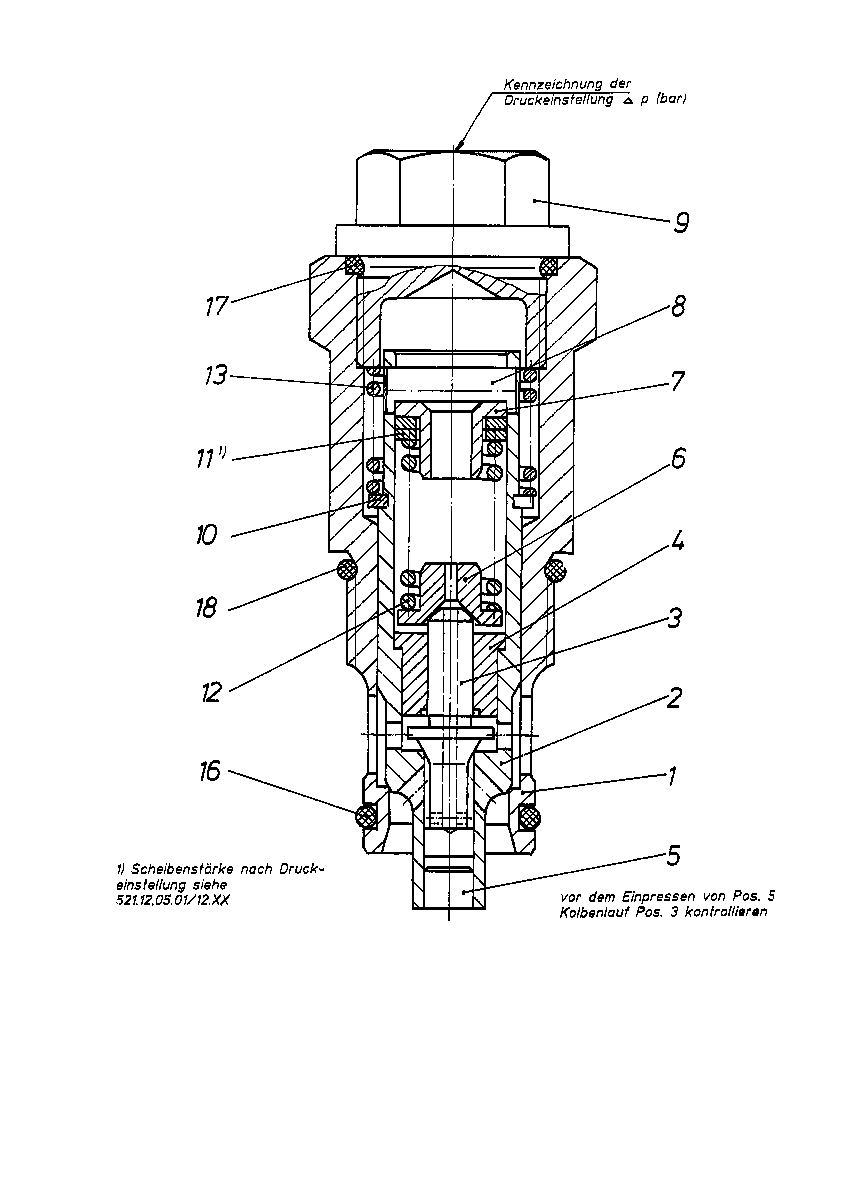

PRESSURE RELIEF VALVER909409502
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909409503 | VALVE BUSHING | 1 | |
| R909432453 | PISTON | 1 | ||
| 3 | R909414025 | VALVE SPOOL | 1 | |
| R909412774 | GUIDE BUSHING | 1 | ||
| 5 | R909002429 | PLUG | 1 | |
| 6 | R909420414 | SPRING DISK | 1 | |
| R909409507 | SPRING DISK | 1 | ||
| 8 | R909409508 | RETAINING PIN | 1 | |
| 9 | R909414836 | SCREW PLUG | 1 | |
| 10 | R909830069 | V-RING | 1 | |
| 11 | R909153798 | SHIM RING | 1 | |
| 11 | R909153799 | SHIM RING | 1 | |
| 11 | R909154068 | SHIM RING | 1 | |
| 12 | R909418938 | COMPRESSION SPRING | 1 | |
| 13 | R909409512 | COMPRESSION SPRING | 1 | |
| R909083757 | O-RINGD | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909083761 | O-RINGD | 1 |
