Baugruppe

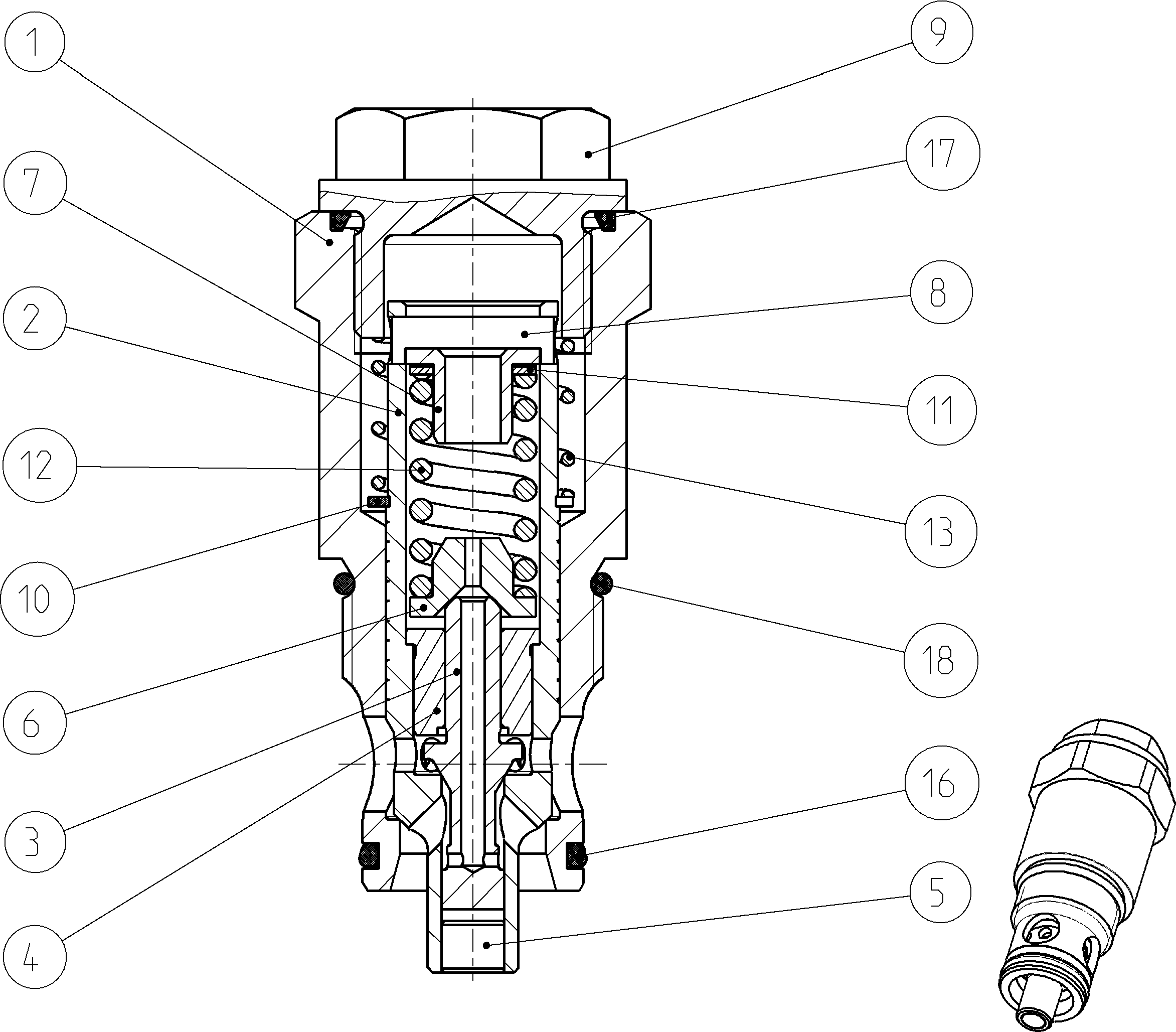

PRESSURE RELIEF VALVER909409805
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909409816 | VALVE BUSHING | 1 | ||
| R909432454 | PISTON | 1 | ||
| R909409818 | VALVE SPOOL | 1 | ||
| R909409819 | GUIDE BUSHING | 1 | ||
| R909449463 | PLUG | 1 | ||
| R909424759 | SPRING DISK | 1 | ||
| R909409821 | SPRING DISK | 1 | ||
| R909409822 | RETAINING PIN | 1 | ||
| R909414839 | SCREW PLUG | 1 | ||
| R909830070 | V-RING | 1 | ||
| R909150369 | SHIM RING | 1 | ||
| R909150370 | SHIM RING | 1 | ||
| R909153402 | SHIM RING | 1 | ||
| R909409825 | COMPRESSION SPRING | 1 | ||
| R909409826 | COMPRESSION SPRING | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909152146 | O-RINGD | 1 |
