Baugruppe

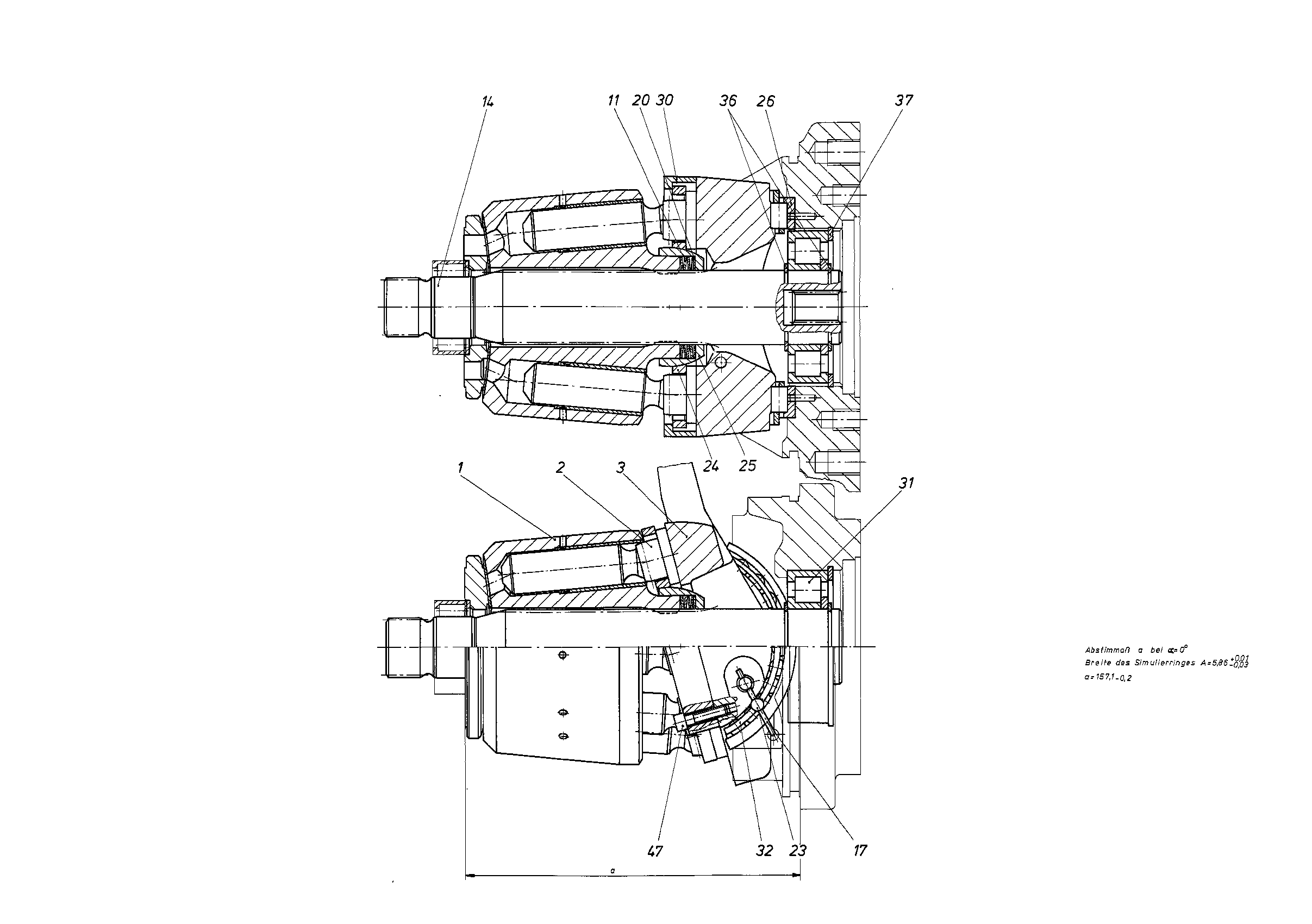

ROTARY GROUPR909410231
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909440264 | CYLINDER Stückliste der Baugruppe →L | 1 | ||
| R909440190 | PISTON PAD | 9 | ||
| R909433323 | CRADLE | 1 | ||
| R909074126 | CUP-SPRING STACK | 1 | ||
| R909408799 | DRIVE SHAFT | 1 | ||
| R909076233 | WIRE | 2 | ||
| R909078316 | SHIM RING | 1 | ||
| R909078317 | SHIM RING | 1 | ||
| R909411553 | SHIM RING | 1 | ||
| R909411554 | SHIM RING | 1 | ||
| R909401842 | IDLE ROLLER | 2 | ||
| R902205417 | RETAINING PLATE | 1 | ||
| R909426454 | RETAINING BALL | 1 | ||
| R909408794 | BEARING SHELL PAIR | 1 | ||
| R909432414 | RETAINING SEGMENT | 2 | ||
| R909153801 | CYL. ROLLER BEARING | 1 | ||
| R909154734 | CAGE PAIR | 1 | ||
| R909083360 | RETAINING RING | 2 | ||
| R909083412 | RETAINING RING | 1 | ||
| R909831328 | SOCKET HEAD CAP SCREW | 4 |
