Baugruppe

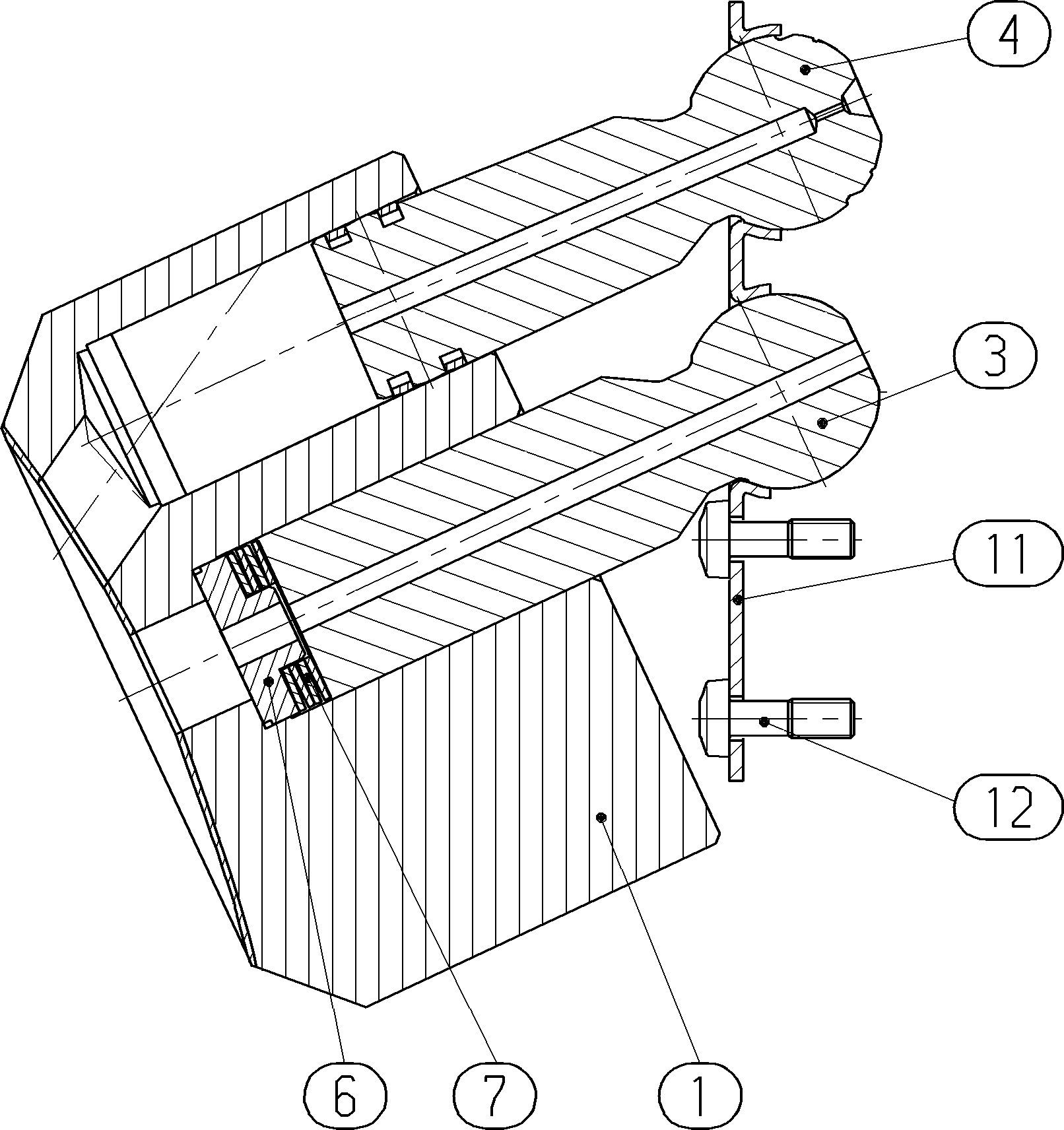

ROTARY GROUPR909410285
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909421290 | CYLINDER | 1 | |
| 3 | R909410254 | CENTER PIN | 1 | |
| R902021901 | PISTON | 7 | ||
| 6 | R902043502 | SPRING DISK | 1 | |
| 6 | R909412217 | SPRING DISK | 1 | |
| 6 | R909412218 | SPRING DISK | 1 | |
| 6 | R909412219 | SPRING DISK | 1 | |
| 6 | R909412220 | SPRING DISK | 1 | |
| 6 | R909412221 | SPRING DISK | 1 | |
| 6 | R909412222 | SPRING DISK | 1 | |
| 6 | R909432287 | SPRING DISK | 1 | |
| 6 | R909432288 | SPRING DISK | 1 | |
| R909081511 | DISC SPRING | 4 | ||
| 11 | R902072551 | RETAINING PLATE | 1 | |
| R902602776 | PAN-HEAD SCREW | 14 |
