Baugruppe

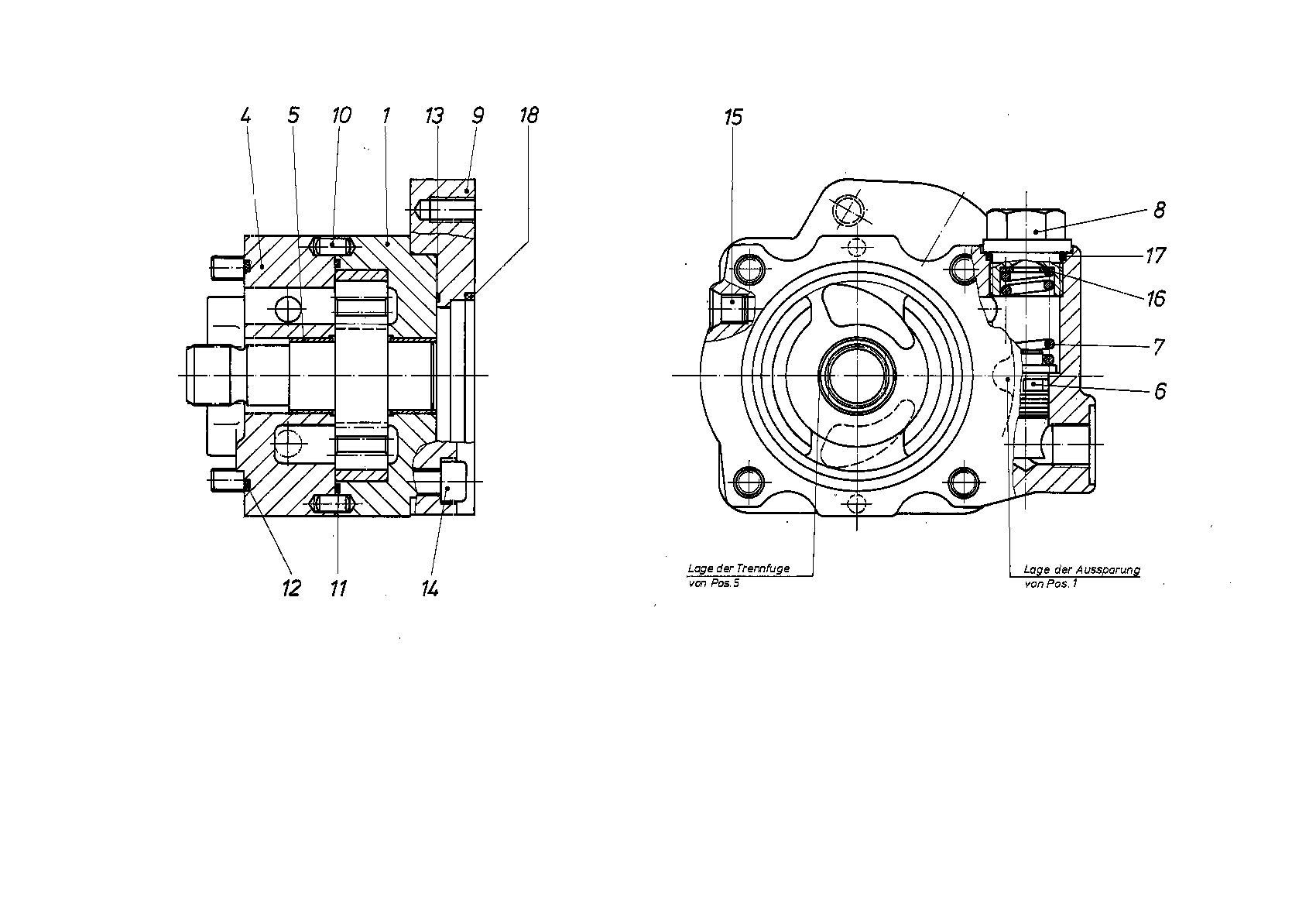

INTERNAL GEAR PUMPR909413336
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909414086 | PUMP COVER Stückliste der Baugruppe →L | 1 | ||
| R909413332 | INTERMEDIATE PLATE | 1 | ||
| R909069490 | BUSHING | 1 | ||
| 6 | R909426804 | VALVE SPOOL | 1 | |
| 7 | R909403718 | COMPRESSION SPRING | 1 | |
| 8 | R909409509 | SCREW PLUG | 1 | |
| 9 | R909424978 | FLANGE | 1 | |
| R909084162 | STRAIGHT PIN | 2 | ||
| 11 | R909086720 | O-RINGD | 1 | |
| R909083790 | O-RINGD | 1 | ||
| 13 | R909087102 | O-RINGD | 1 | |
| R909083051 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 16 | R909080515 | WASHER | 2 | |
| R909083760 | O-RINGD | 1 | ||
| R909086804 | O-RINGD | 1 |
