Baugruppe

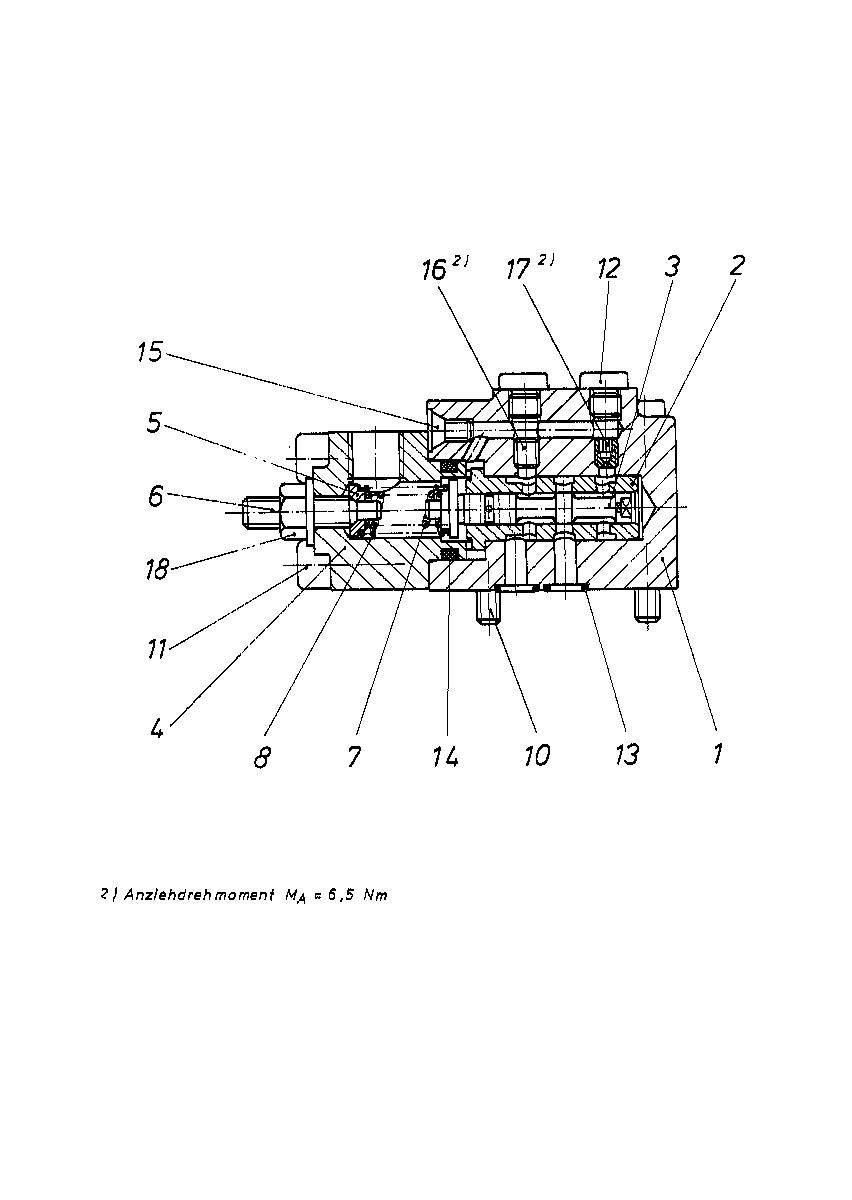

SEQUENCE VALVER909413381
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909413369 | HOUSING | 1 | |
| R909413370 | CONTROL SLEEVE | 1 | ||
| R909413371 | CONTROL PISTON | 1 | ||
| 4 | R909413372 | CONNECTION COVER | 1 | |
| 5 | R909413373 | SPRING DISK | 1 | |
| 6 | R909413374 | SETSCREW | 1 | |
| R909413375 | COMPRESSION SPRING | 1 | ||
| 8 | R909413376 | COMPRESSION SPRING | 1 | |
| R909083028 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909083041 | SOCKET HEAD CAP SCREW | 4 | |
| R909154024 | SCREW PLUGD | 2 | ||
| R909086498 | O-RINGD | 4 | ||
| 14 | R909083793 | O-RINGD | 1 | |
| 15 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909083491 | SETSCREW | 1 | ||
| 17 | R909156492 | NOZZLE | 1 | |
| 18 | R909152707 | SEALING NUTD | 1 |
