Baugruppe

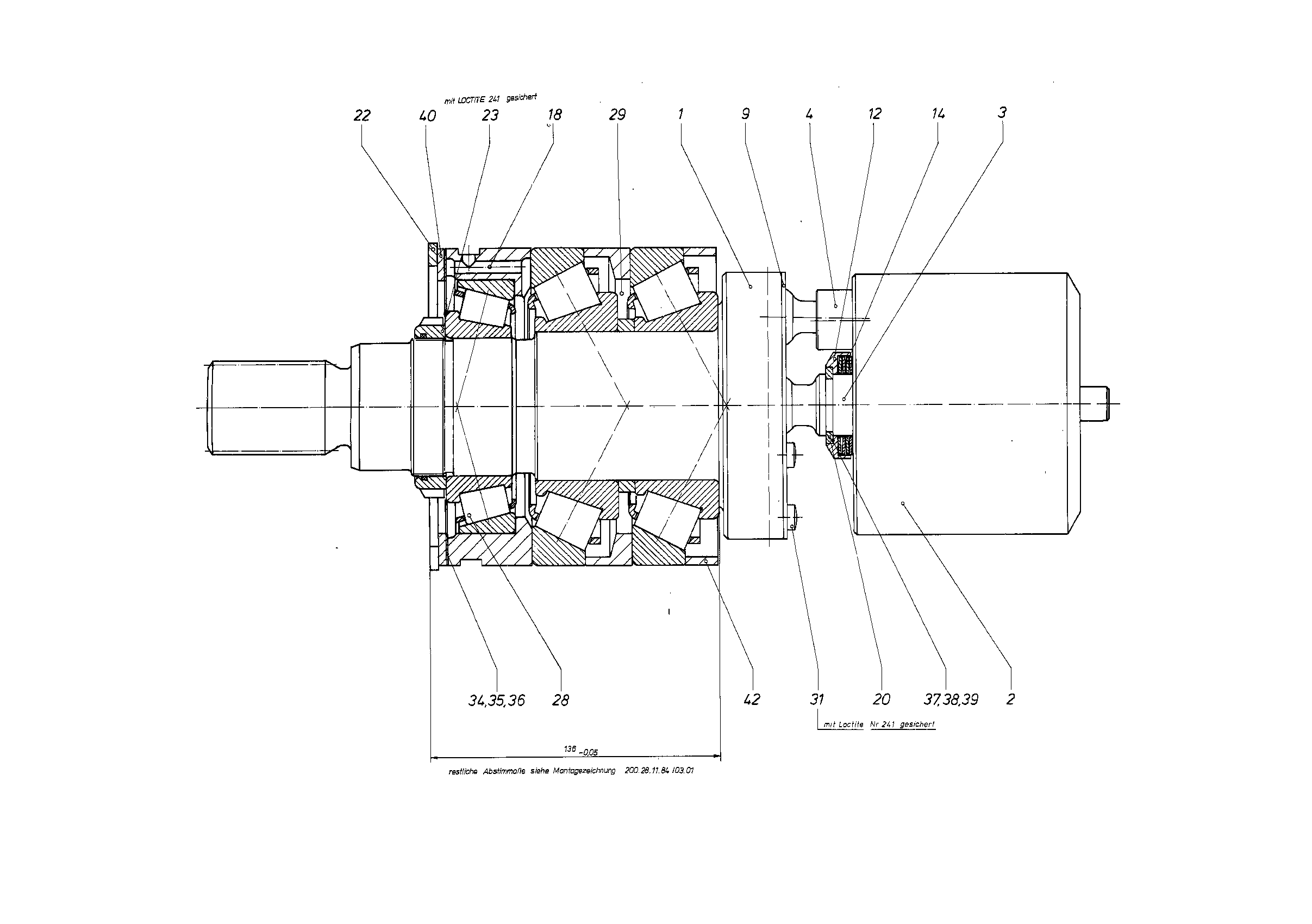

ROTARY GROUPR909414289
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909414288 | DRIVE SHAFT | 1 | ||
| R909404101 | CYLINDER | 1 | ||
| 3 | R909063017 | CENTER PIN | 1 | |
| 4 | R909069117 | PISTON/PISTON ROD | 7 | |
| 9 | R902072553 | RETAINING PLATE | 1 | |
| R909063016 | SPRING DISK | 1 | ||
| R909063019 | DISC SPRING | 4 | ||
| 18 | R909411336 | BEARING RING | 1 | |
| R909063020 | RING | 1 | ||
| R909085127 | RETAINING RING | 1 | ||
| R909156102 | SLOTTED ROUND NUT | 1 | ||
| R909157611 | TAPERED-ROLLER BEARING | 1 | ||
| R909156511 | TAPERED-ROLLER BEARING UNIT | 1 | ||
| 31 | R902602395 | PAN-HEAD SCREW | 14 | |
| 34 | R909150087 | SHIM RING | 2 | |
| R909156388 | SHIM RING | 2 | ||
| R909156389 | SHIM RING | 2 | ||
| 37 | R909087155 | SHIM RING | 1 | |
| 38 | R909154090 | SHIM RING | 1 | |
| 39 | R909154023 | SHIM RING | 1 | |
| R909156431 | SUPPORTING DISC | 1 | ||
| R909411341 | SPACER RING | 1 |
