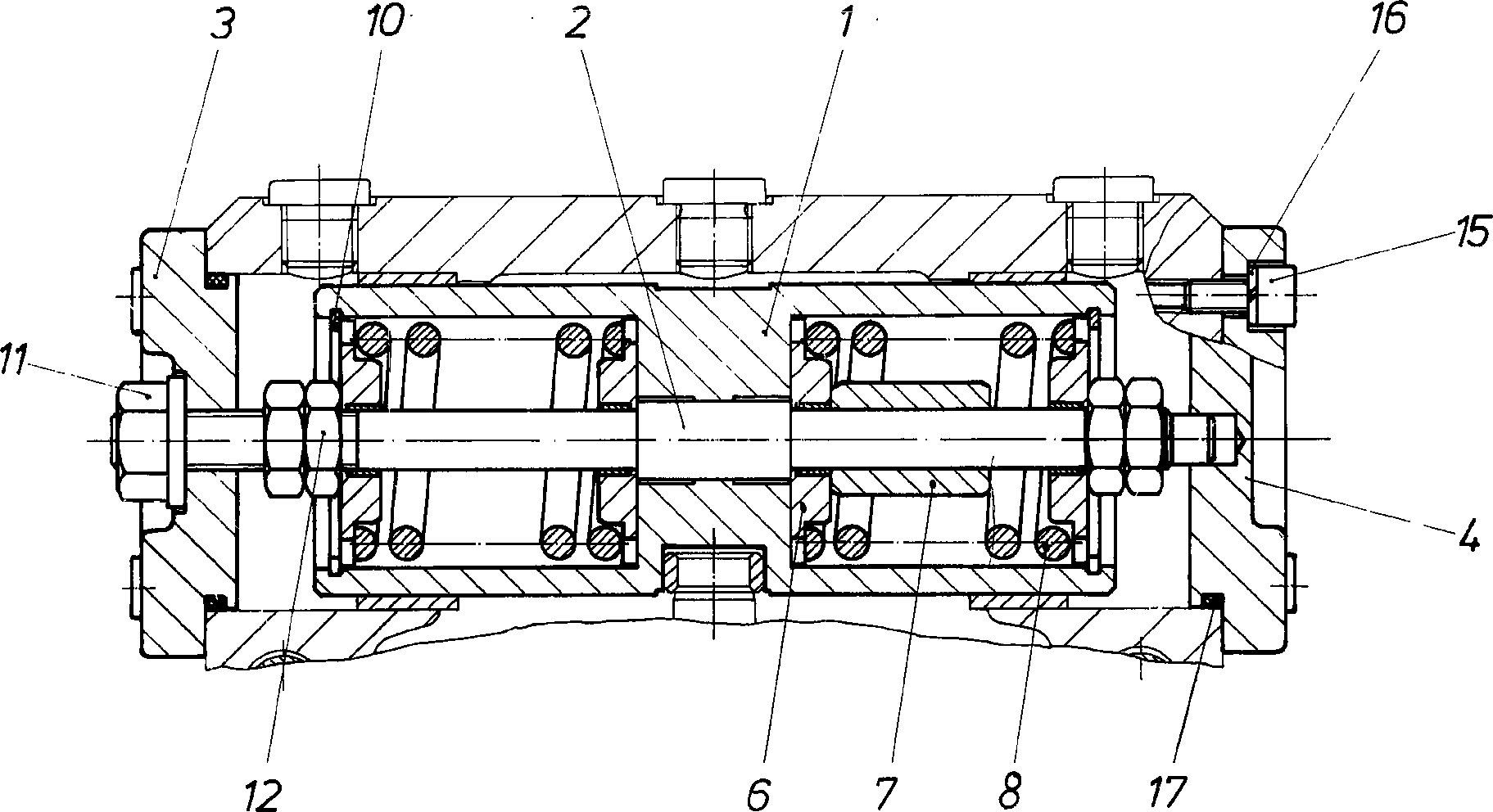

Baugruppe
CONTROLR909414468
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909651773 | POSITIONING PISTON | 1 | |
| 2 | R909414460 | ROD | 1 | |
| 3 | R909400425 | COVER | 1 | |
| R909414456 | COVER | 1 | ||
| R909404798 | SPRING DISK | 4 | ||
| 7 | R909078113 | SPACER BUSHING | 2 | |
| 7 | R909078353 | SPACER BUSHING | 1 | |
| 7 | R909078354 | SPACER BUSHING | 1 | |
| 8 | R909418170 | COMPRESSION SPRING | 2 | |
| R909083400 | RETAINING RING | 2 | ||
| 11 | R909153271 | SEALING NUTD | 1 | |
| 12 | R902017521 | HEXAGON NUT | 4 | |
| 15 | R909083018 | SOCKET HEAD CAP SCREW | 8 | |
| 16 | R909083249 | SPRING LOCK WASHER | 8 | |
| R909086804 | O-RINGD | 2 |
