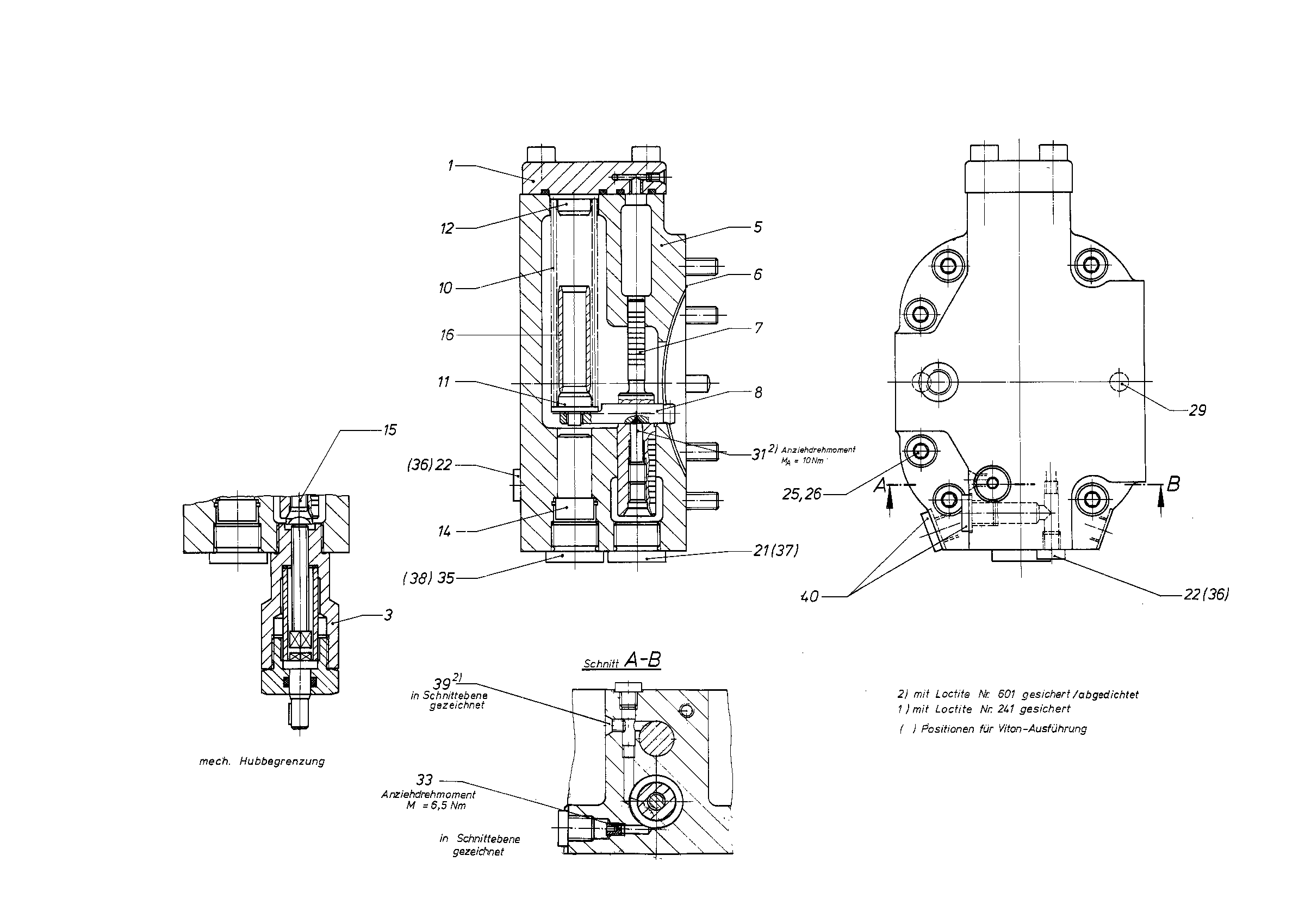

Baugruppe
CONTROLR909414549
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909402383 | COVER Stückliste der Baugruppe →L | 1 | ||
| 5 | R909409010 | COVER PLATE, CLOCKWISE ROTATION | 1 | |
| 6 | R902011876 | SEALD | 1 | |
| 7 | R909409963 | POSITIONING PISTON | 1 | |
| 8 | R909075357 | POSITIONING STUD | 1 | |
| R909075423 | COMPRESSION SPRING | 1 | ||
| 11 | R909080448 | SPRING DISK | 1 | |
| 12 | R909075360 | SPRING DISK | 1 | |
| 14 | R909080447 | PLUG | 1 | |
| R909402295 | GUIDE SLEEVE | 1 | ||
| 21 | R909083225 | SCREW PLUG | 1 | |
| 22 | R909087873 | SCREW PLUG | 2 | |
| R909083040 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083250 | SPRING LOCK WASHER | 6 | ||
| 29 | R913009667 | STRAIGHT PIN | 2 | |
| R909409589 | SETSCREW | 1 | ||
| 33 | R909156492 | NOZZLE | 1 | |
| 35 | R909083225 | SCREW PLUG | 1 | |
| 36 | R909152724 | SEAL RINGD | 2 | |
| 37 | R909152734 | SEAL RINGD | 1 | |
| 38 | R909152734 | SEAL RINGD | 1 | |
| 39 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909156650 | SCREW PLUGD | 2 |
