Baugruppe

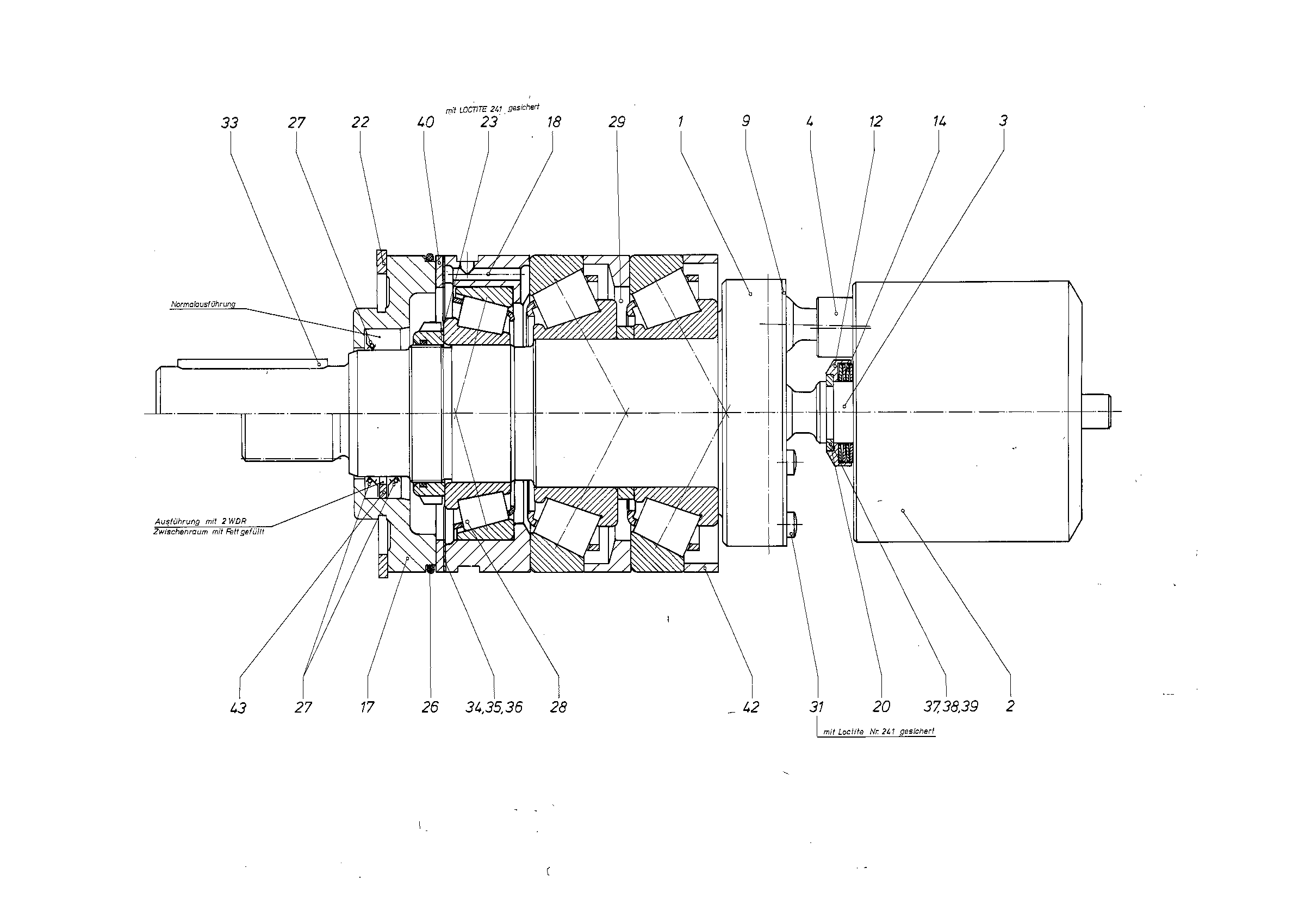

ROTARY GROUPR909414550
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909412090 | DRIVE SHAFT | 1 | ||
| R909066912 | CYLINDER | 1 | ||
| R909066750 | CENTER PIN | 1 | ||
| R909069114 | PISTON/PISTON ROD | 7 | ||
| R902072550 | RETAINING PLATE | 1 | ||
| R909445428 | SPRING DISK | 1 | ||
| R909060356 | DISC SPRING | 1 | ||
| R909412089 | LOCKING RINGD | 1 | ||
| R909412088 | BEARING RING | 1 | ||
| R909152490 | SNAP RING | 1 | ||
| R909083415 | RETAINING RING | 1 | ||
| R913037928 | SLOTTED ROUND NUT | 1 | ||
| R909085567 | O-RINGD | 1 | ||
| R909152835 | SHAFT SEALING RINGD | 1 | ||
| R909151098 | TAPERED-ROLLER BEARING | 1 | ||
| R909156197 | TAPERED-ROLLER BEARING UNIT | 1 | ||
| R902602776 | PAN-HEAD SCREW | 7 | ||
| R909083983 | PARALLEL KEY | 1 | ||
| R909084586 | SHIM RING | 1 | ||
| R909154802 | SHIM RING | 1 | ||
| R909085952 | SHIM RING | 1 | ||
| R909087150 | SHIM RING | 1 | ||
| R909087466 | SHIM RING | 1 | ||
| R909087151 | SHIM RING | 1 | ||
| R909087019 | SUPPORTING DISCD | 1 | ||
| R909412105 | SPACER RING | 1 |
