Baugruppe

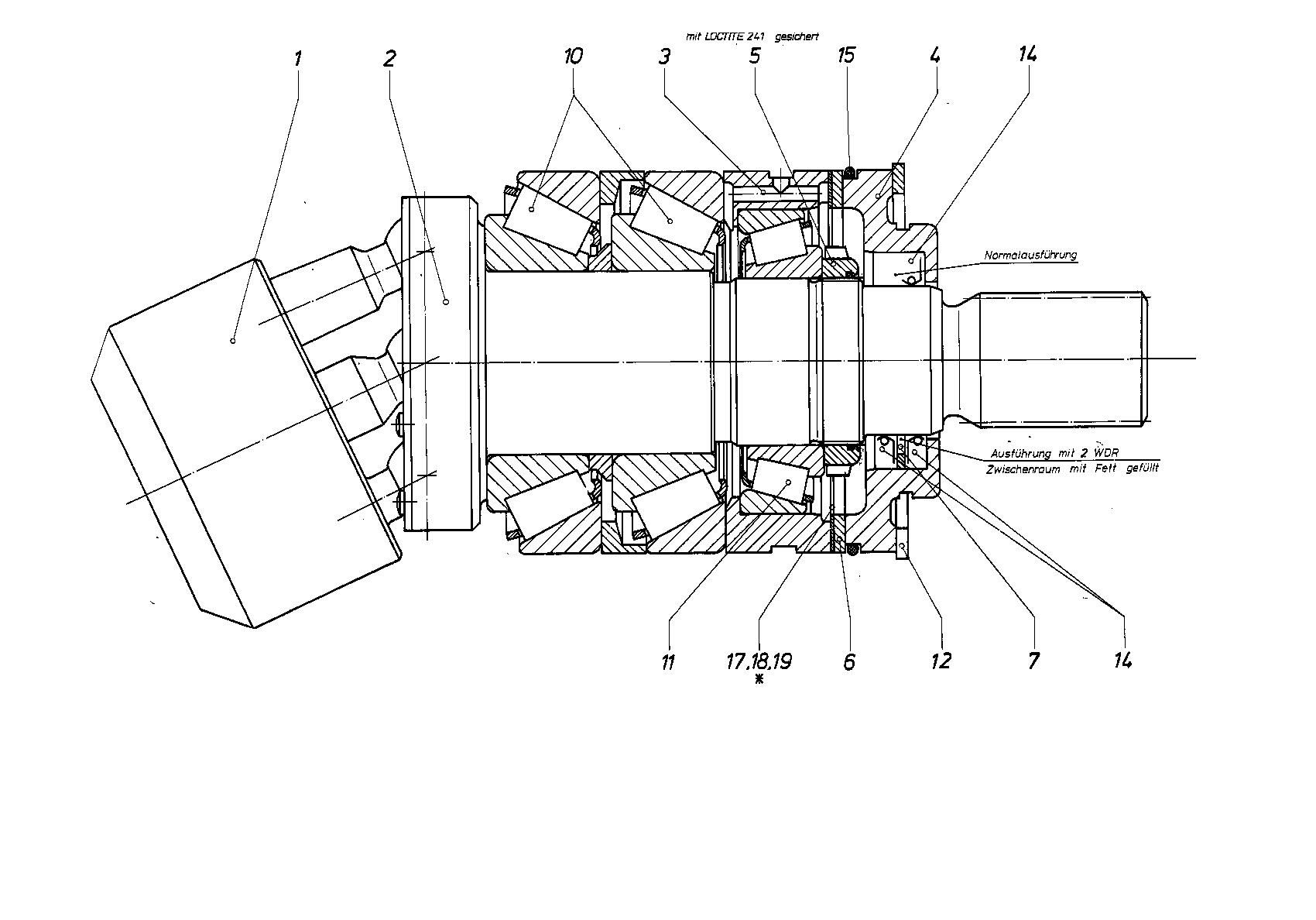

ROTARY GROUPR909414636
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909410390 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| R909425719 | DRIVE SHAFT | 1 | ||
| R909411437 | BEARING RING | 1 | ||
| R909651999 | LOCKING RING | 1 | ||
| R913037932 | SLOTTED ROUND NUT | 1 | ||
| 6 | R909156267 | SUPPORTING DISC | 1 | |
| R909156512 | TAPERED-ROLLER BEARING UNIT | 1 | ||
| 11 | R909151114 | TAPERED-ROLLER BEARING | 1 | |
| R909152143 | RETAINING RING | 1 | ||
| R909830386 | SHAFT SEALING RINGD | 1 | ||
| R909086950 | O-RINGD | 1 | ||
| 17 | R909154360 | SHIM RING | 2 | |
| 18 | R909156441 | SHIM RING | 2 | |
| 19 | R909156296 | SHIM RING | 2 |
