Baugruppe
CONTROLR909414661

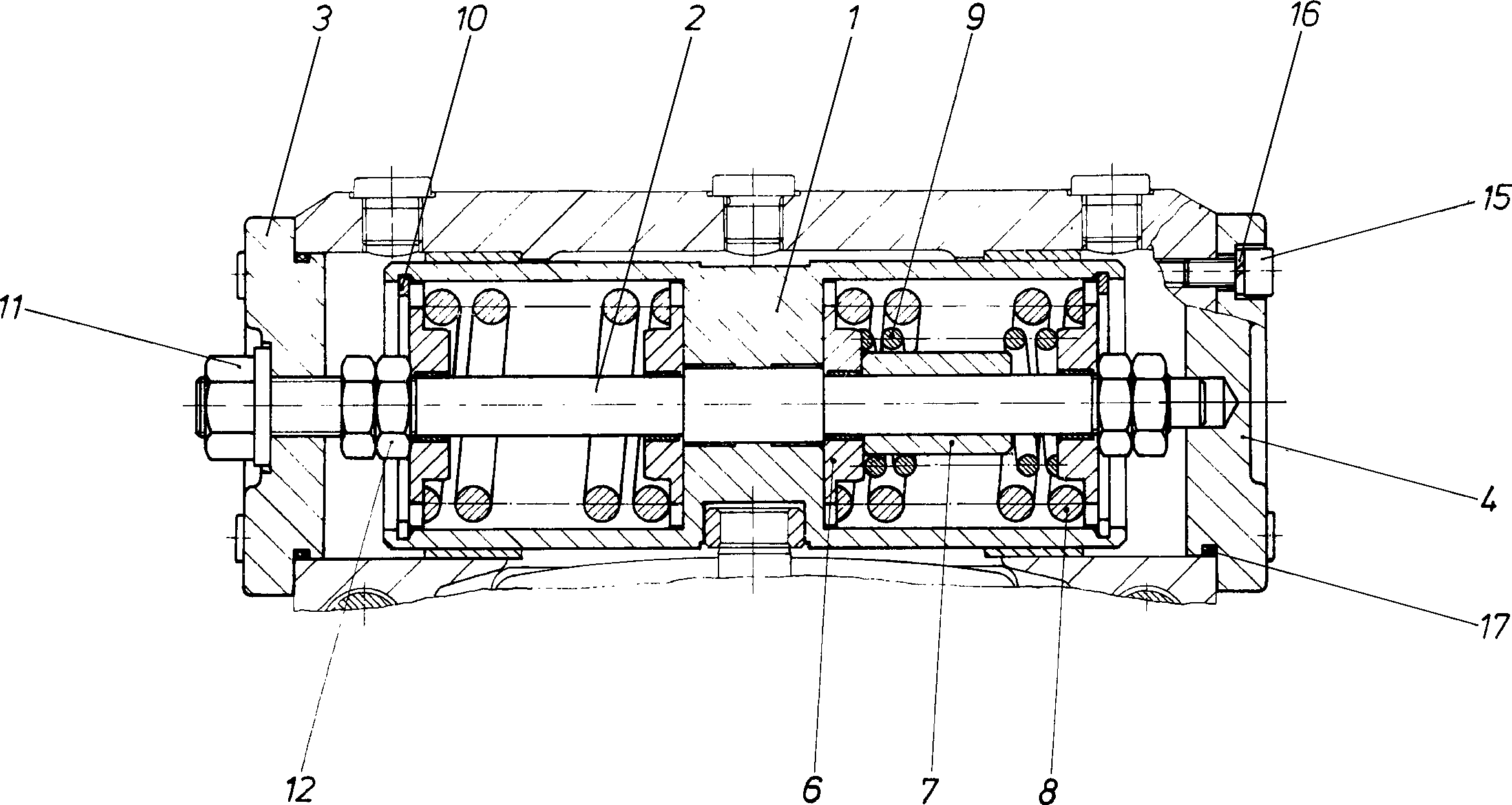

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902002914 | POSITIONING PISTON | 1 | ||
| R909414461 | ROD | 1 | ||
| R909400427 | COVER | 1 | ||
| R909414457 | COVER | 1 | ||
| R909408361 | SPRING DISK | 4 | ||
| R909416414 | SPACER BUSHING | 2 | ||
| — | SPACER BUSHING | 1 | ||
| — | SPACER BUSHING | 1 | ||
| — | SPACER BUSHING | 1 | ||
| — | SPACER BUSHING | 1 | ||
| R909420262 | COMPRESSION SPRING | 2 | ||
| R909416259 | COMPRESSION SPRING | 1 | ||
| R909156215 | V-RING | 2 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909154918 | HEXAGON NUT | 4 | ||
| R909083018 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083249 | SPRING LOCK WASHER | 8 | ||
| R909151810 | O-RINGD | 2 |
