Baugruppe

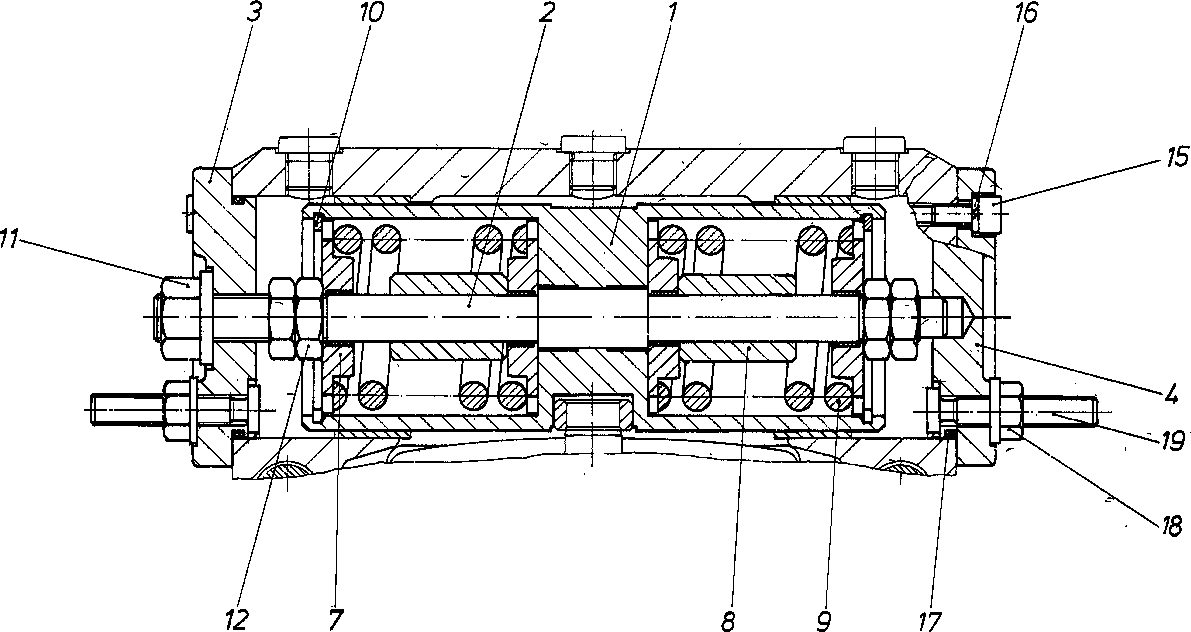

CONTROLR909414673
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902002914 | POSITIONING PISTON | 1 | ||
| R909414461 | ROD | 1 | ||
| R909403640 | COVER | 1 | ||
| R909414678 | COVER | 1 | ||
| R909405998 | SPRING DISK | 4 | ||
| R909444769 | SPACER BUSHING | 2 | ||
| R909921664 | SPACER BUSHING | 1 | ||
| R909921665 | SPACER BUSHING | 1 | ||
| R909921666 | SPACER BUSHING | 1 | ||
| R909921667 | SPACER BUSHING | 1 | ||
| R909422382 | COMPRESSION SPRING | 2 | ||
| R909156215 | V-RING | 2 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909154918 | HEXAGON NUT | 4 | ||
| R909083018 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083249 | SPRING LOCK WASHER | 8 | ||
| R909151810 | O-RINGD | 2 | ||
| R909152707 | SEALING NUTD | 2 | ||
| R909416473 | STOP SCREW | 2 |
