Baugruppe

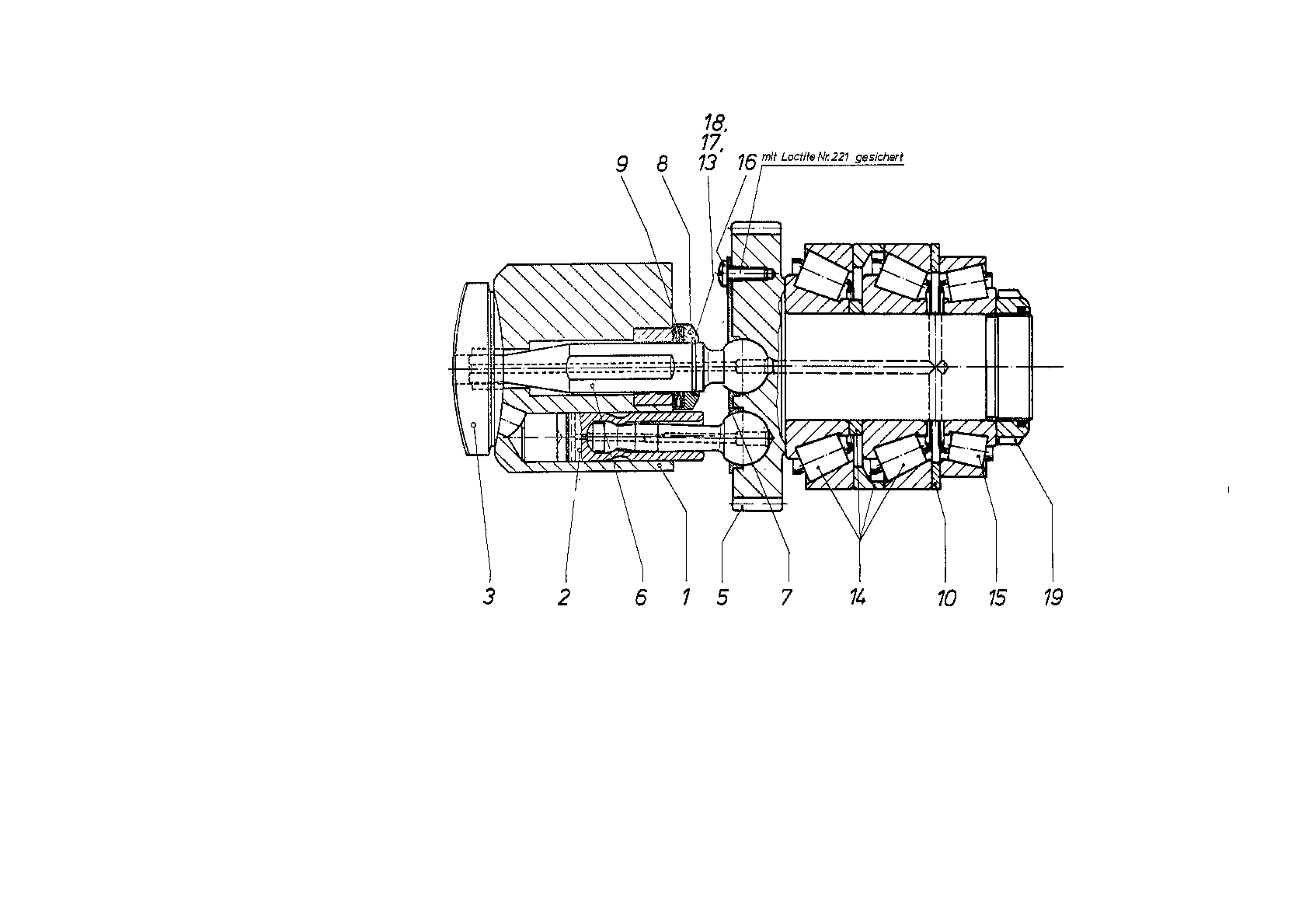

ROTARY GROUPR909414973
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909066912 | CYLINDER | 1 | ||
| R909069114 | PISTON/PISTON ROD | 7 | ||
| R909068224 | CONTROL LENS | 1 | ||
| 5 | R909414442 | DRIVE SHAFT | 1 | |
| 6 | R909066750 | CENTER PIN | 1 | |
| 7 | R902072550 | RETAINING PLATE | 1 | |
| 8 | R909445428 | SPRING DISK | 1 | |
| 9 | R909060356 | DISC SPRING | 4 | |
| R909408500 | SHIM RING | 1 | ||
| R909408501 | SHIM RING | 1 | ||
| R909408502 | SHIM RING | 1 | ||
| R909408503 | SHIM RING | 1 | ||
| 13 | R909152490 | SNAP RING | 1 | |
| 14 | R909156197 | TAPERED-ROLLER BEARING UNIT | 1 | |
| 15 | R909151098 | TAPERED-ROLLER BEARING | 1 | |
| R902602776 | PAN-HEAD SCREW | 7 | ||
| 17 | R909087150 | SHIM RING | 1 | |
| R909087466 | SHIM RING | 1 | ||
| R913037928 | SLOTTED ROUND NUT | 1 |
