Baugruppe

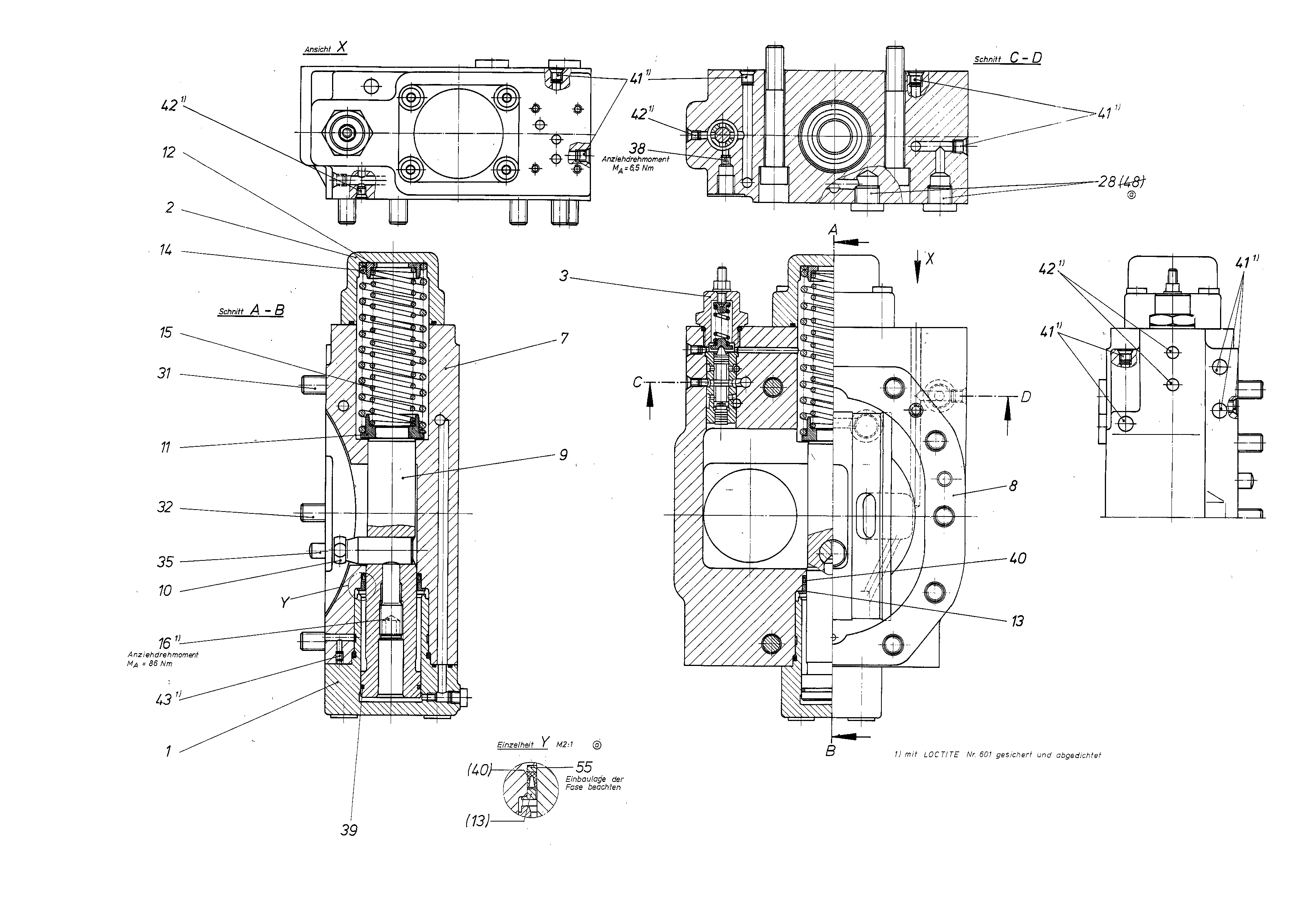

CONTROLR909416591
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909413253 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909427852 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909413428 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909416592 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902011851 | SEALD | 1 | ||
| R909425471 | POSITIONING PISTON | 1 | ||
| R909425459 | POSITIONING STUD | 1 | ||
| R909413241 | SPRING DISK | 1 | ||
| R909413492 | SPRING DISK | 1 | ||
| R909424360 | RING | 1 | ||
| R909413494 | COMPRESSION SPRING | 1 | ||
| R909413493 | COMPRESSION SPRING | 1 | ||
| R909408958 | SETSCREW | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909083101 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909156492 | NOZZLE | 1 | ||
| R909156479 | R-RINGD | 1 | ||
| R909156543 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909083489 | SETSCREW | 1 | ||
| R909424361 | BACKUP RING | 1 |
