Baugruppe

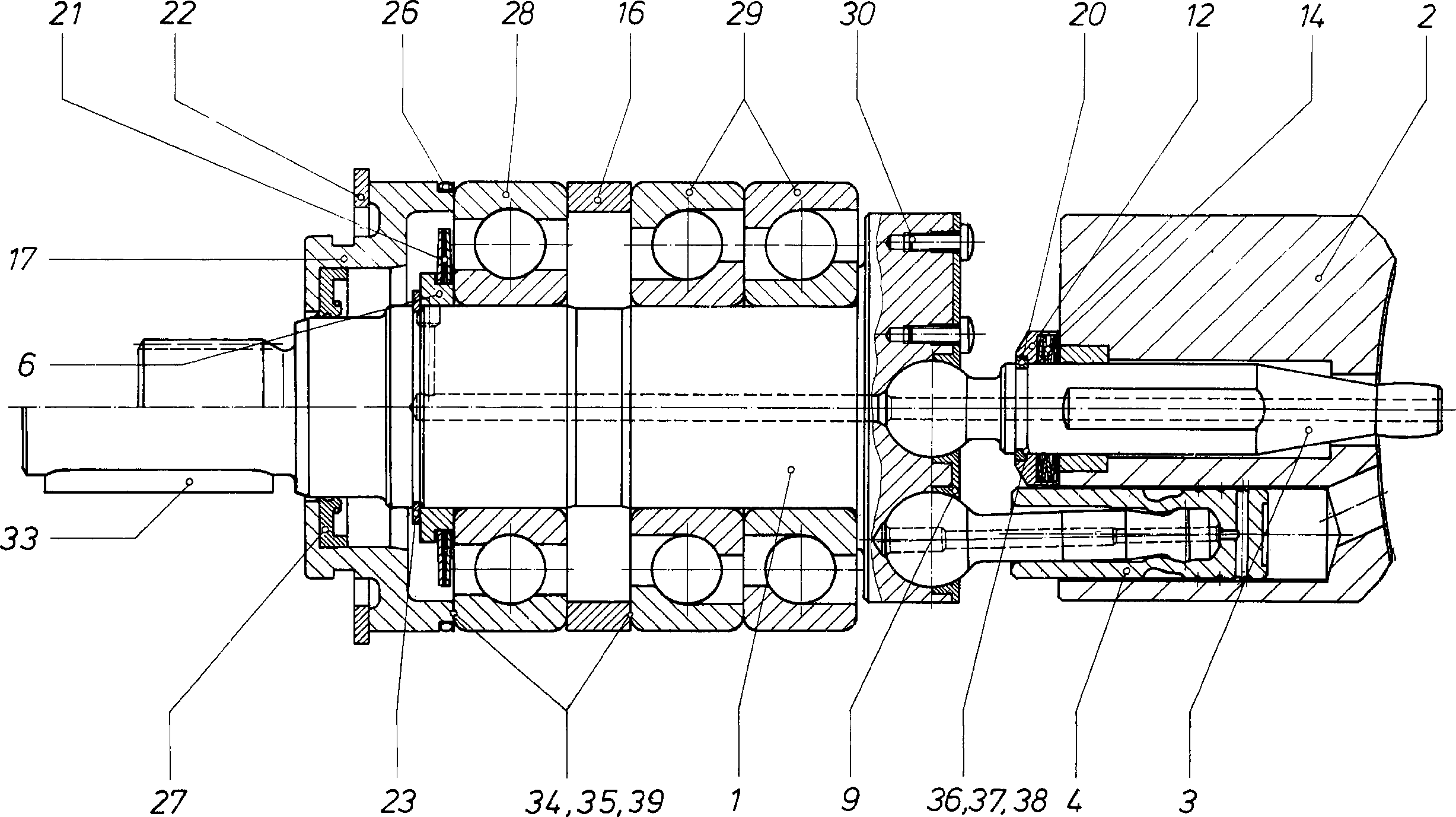

ROTARY GROUPR909417245
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909406622 | DRIVE SHAFT | 1 | ||
| R909404098 | CYLINDER | 1 | ||
| R909060083 | CENTER PIN | 1 | ||
| R909069123 | PISTON/PISTON ROD | 7 | ||
| R909445629 | SPRING DISK | 1 | ||
| R902072551 | RETAINING PLATE | 1 | ||
| R909445614 | SPRING DISK | 1 | ||
| R909060102 | DISC SPRING | 4 | ||
| R909006746 | SPACER BUSH | 1 | ||
| R909651997 | LOCKING RINGD | 1 | ||
| R909001026 | RING | 1 | ||
| R909006732 | DISC SPRING | 2 | ||
| R909083417 | RETAINING RING | 1 | ||
| R909083363 | RETAINING RING | 1 | ||
| R909086756 | O-RINGD | 1 | ||
| R909831285 | SHAFT SEALING RINGD | 1 | ||
| R913023203 | DEEP-GROOVE BALL BEARING | 1 | ||
| R913032712 | ANG. CONTACT BALL BEARING | 2 | ||
| R902602776 | PAN-HEAD SCREW | 14 | ||
| R909084593 | SHIM RING | 2 | ||
| R909084636 | SHIM RING | 1 | ||
| R909087152 | SHIM RING | 1 | ||
| R909087181 | SHIM RING | 1 | ||
| R909087153 | SHIM RING | 2 |
