Baugruppe

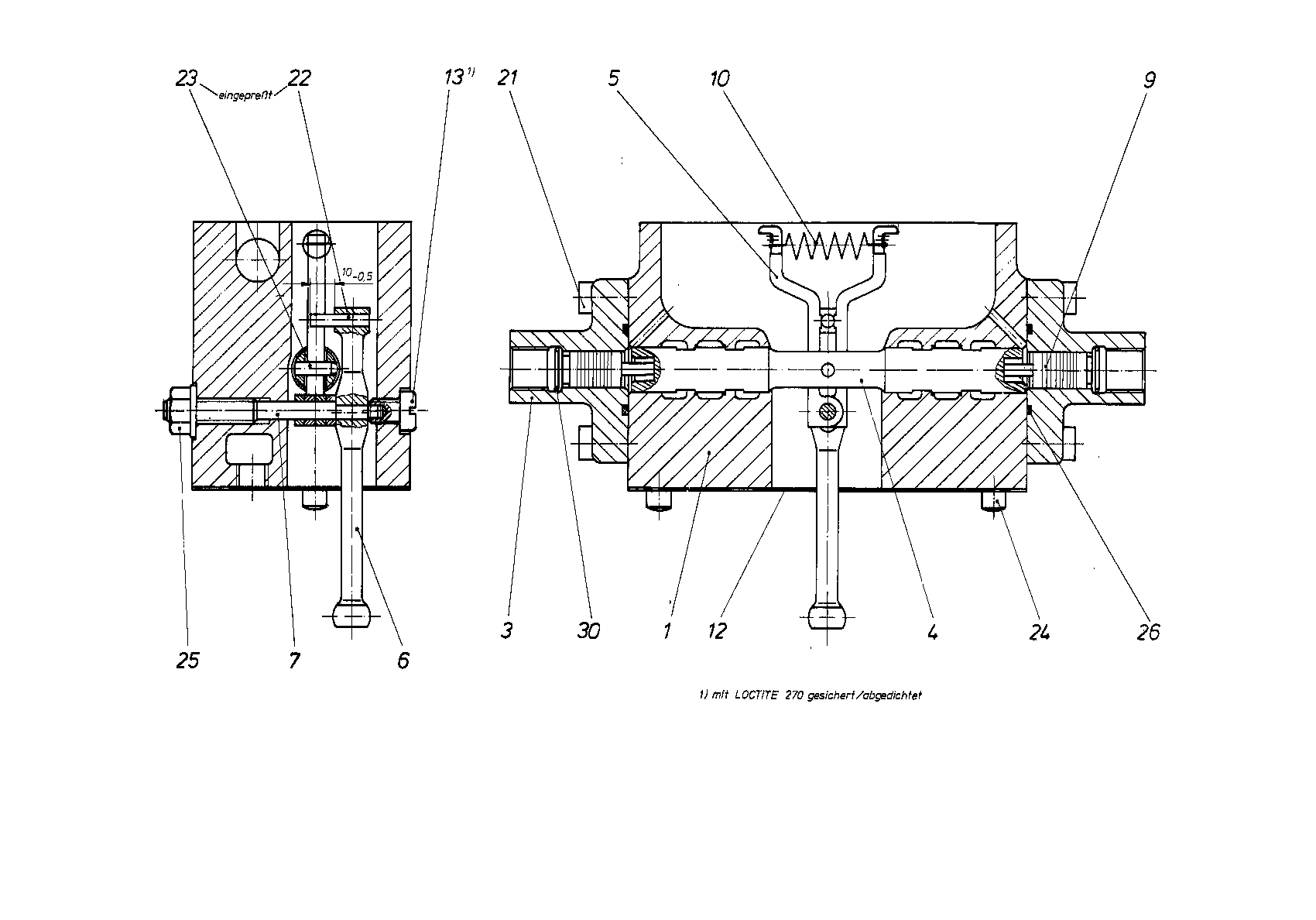

CONTROL UNITR909417369
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909408816 | HOUSING | 1 | ||
| R909424855 | HOUSING | 2 | ||
| R902068220 | CONTROL PISTON | 1 | ||
| R909415653 | LEVER | 2 | ||
| R909403584 | FEEDBACK LEVER | 1 | ||
| R909408818 | ECCENTRIC PIN | 1 | ||
| 9 | R909408819 | PISTON | 2 | |
| R909439290 | EXTENSION SPRING | 1 | ||
| R909419242 | SEALD | 1 | ||
| 13 | R909651958 | SOCKET HEAD CAP SCREW | 1 | |
| 21 | R909083019 | SOCKET HEAD CAP SCREW | 8 | |
| R909153336 | NEEDLE-ROLLER | 1 | ||
| 23 | R909087694 | STRAIGHT PIN | 1 | |
| 24 | R909087752 | STRAIGHT PIN | 2 | |
| R909152707 | SEALING NUT | 1 | ||
| R909083761 | O-RINGD | 2 | ||
| R909156539 | SNAP RING | 2 |
