Baugruppe

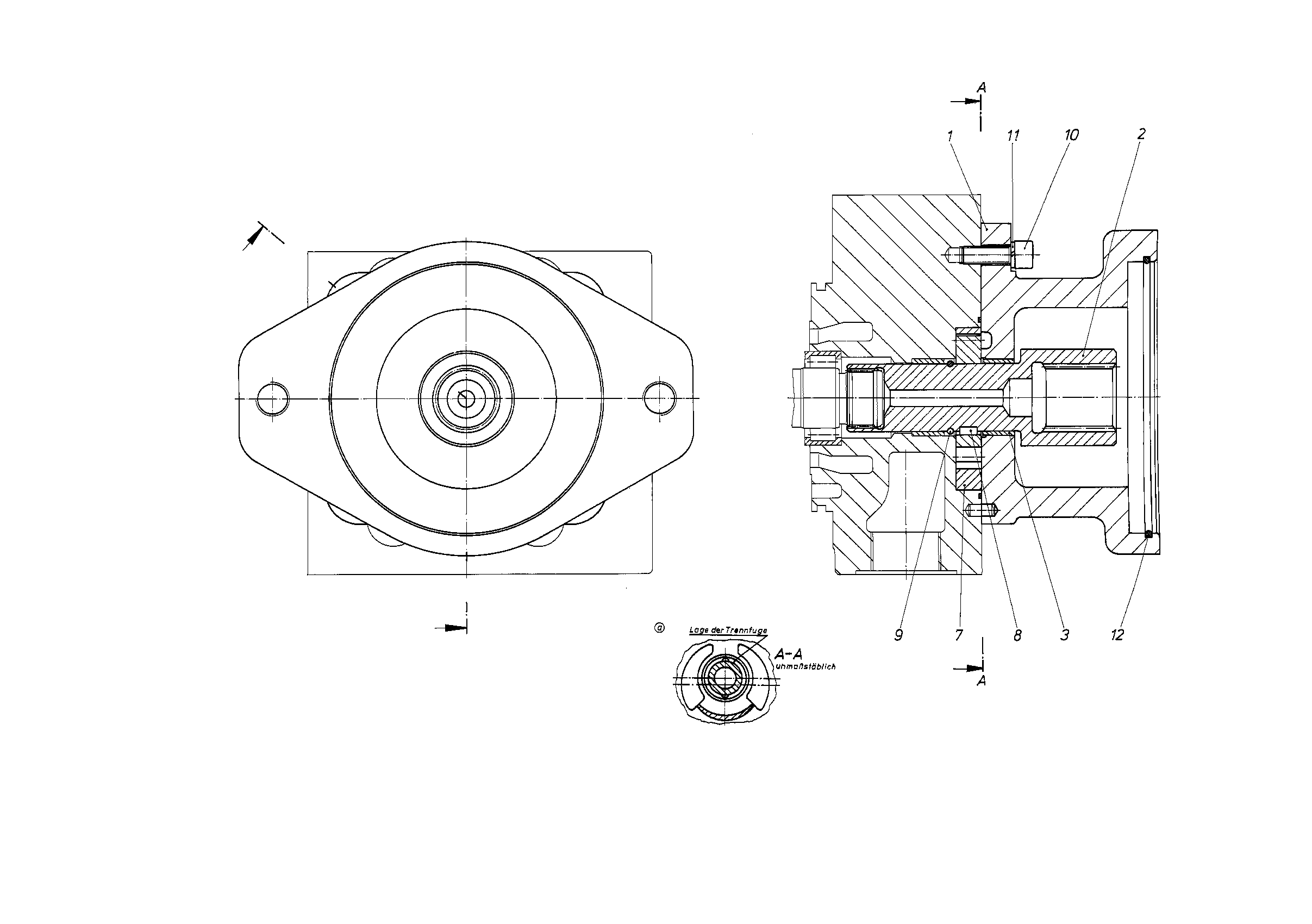

INTERNAL GEAR PUMP ASSEMBLYR909417585
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909417586 | INTERMEDIATE FLANGE | 1 | ||
| 2 | R909417587 | THROUGH DRIVE SHAFT | 1 | |
| R902260545 | BUSHING | 1 | ||
| 7 | R909156850 | WHEEL SET | 1 | |
| 8 | R902025647 | PARALLEL KEY | 1 | |
| 9 | R909156741 | SNAP RING | 1 | |
| R909083039 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909083250 | SPRING LOCK WASHER | 4 | |
| 12 | R913002054 | O-RINGD | 1 |
