Baugruppe

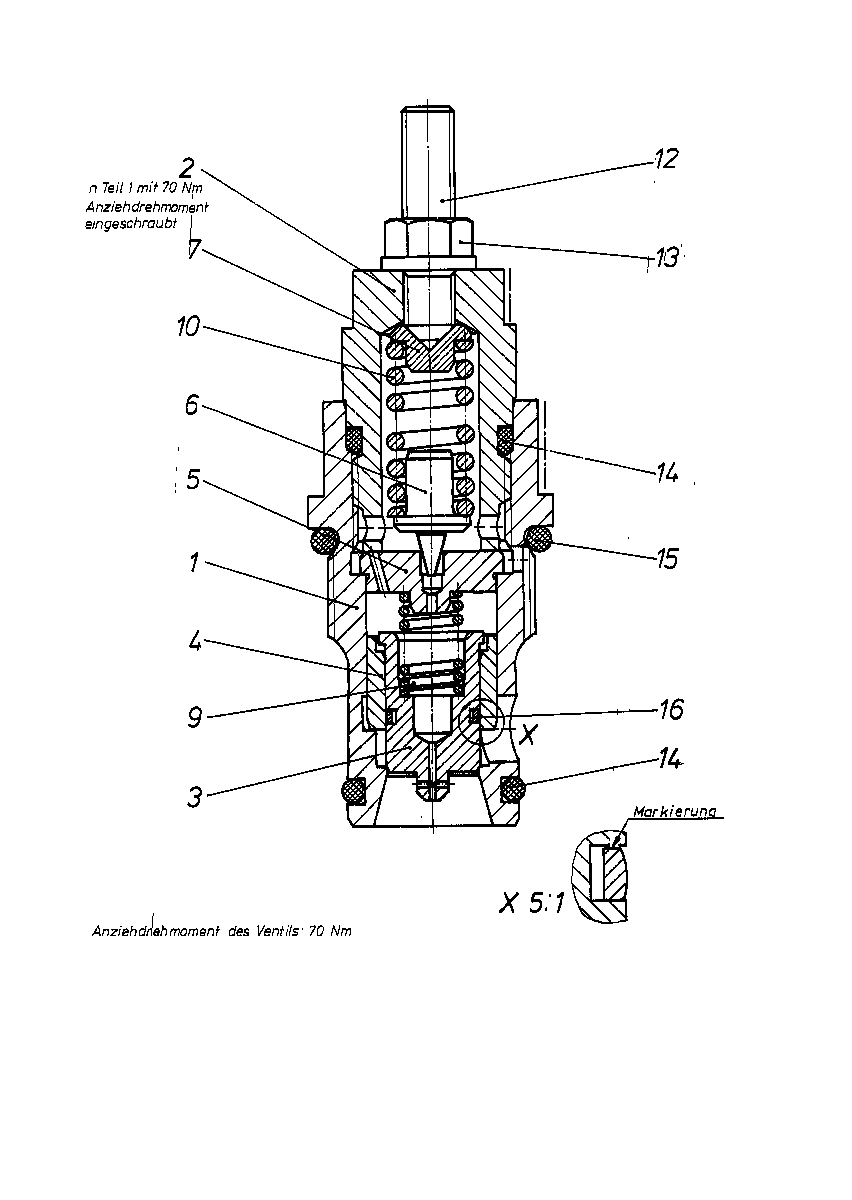

PRESSURE RELIEF VALVER909417693
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909402836 | VALVE BUSHING | 1 | |
| 2 | R909417695 | SPRING SLEEV | 1 | |
| 3 | R909426809 | PISTON | 1 | |
| R909402839 | RING PISTON | 1 | ||
| 5 | R909426826 | VALVE PLATE | 1 | |
| 6 | R909443630 | VALVE CONE | 1 | |
| 7 | R909402842 | SPRING DISK | 1 | |
| 9 | R909426810 | COMPRESSION SPRING | 1 | |
| R909443624 | COMPRESSION SPRING | 1 | ||
| R909154140 | SETSCREW | 1 | ||
| 13 | R909152425 | SEALING NUTD | 1 | |
| 14 | R909083757 | O-RINGD | 2 | |
| R909083761 | O-RINGD | 1 | ||
| R909831883 | STEEL SEALING RING | 1 |
