Baugruppe

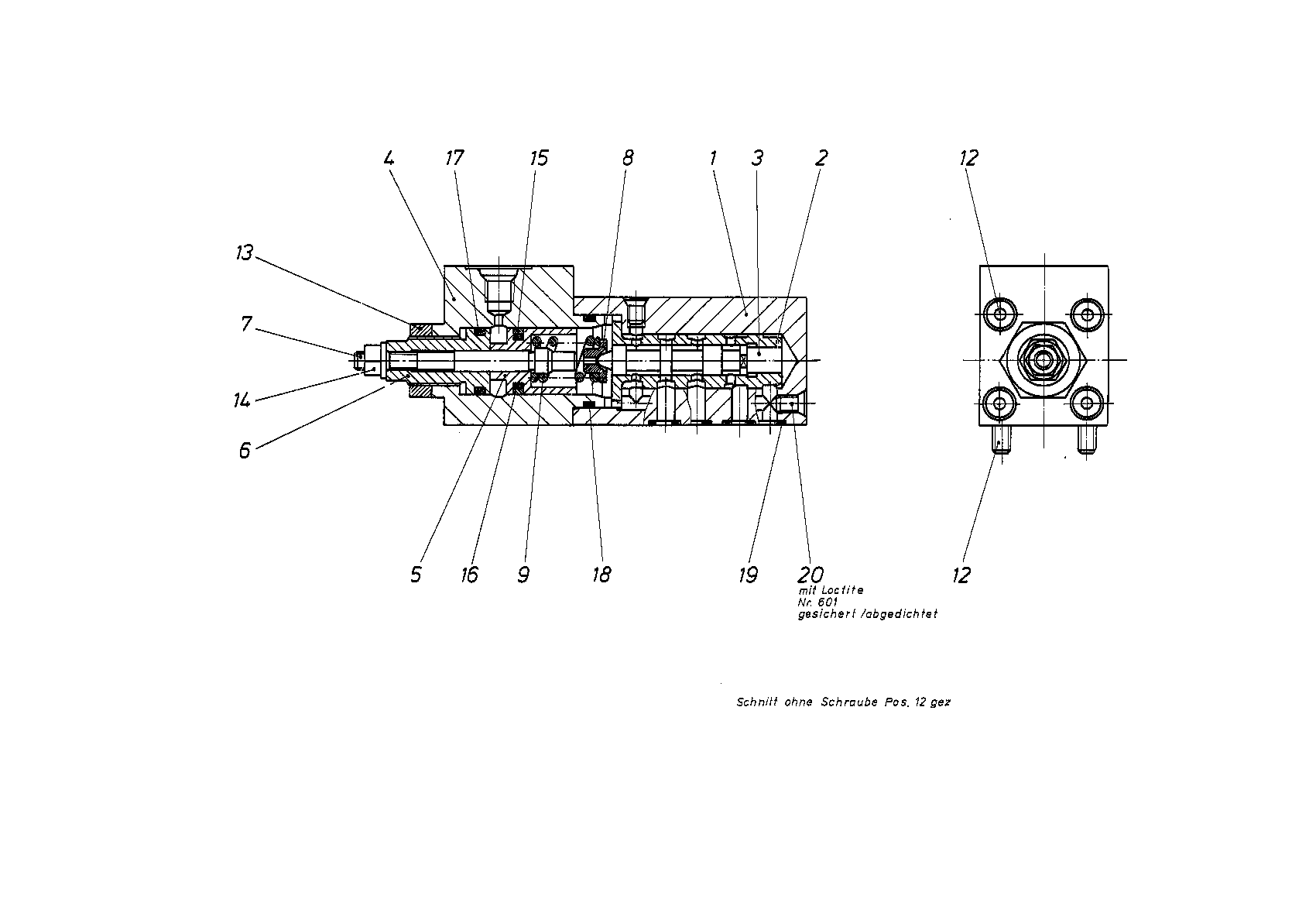

SEQUENCE VALVER909418464
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909418457 | HOUSING | 1 | |
| 2 | R909418458 | CONTROL SLEEVE | 1 | |
| 3 | R909418315 | CONTROL PISTON | 1 | |
| R909418459 | HOUSING | 1 | ||
| 5 | R909418460 | PISTON | 1 | |
| 6 | R909418461 | ADJUSTING SCREW | 1 | |
| 7 | R909418462 | ADJUSTING BOLT | 1 | |
| R909449205 | SPRING DISK | 1 | ||
| 9 | R909418463 | COMPRESSION SPRING | 1 | |
| R909083026 | SOCKET HEAD CAP SCREW | 8 | ||
| 13 | R909157477 | HEXAGON NUT | 1 | |
| 14 | R909152425 | SEALING NUTD | 1 | |
| R909157024 | PISTON SEALD | 1 | ||
| R909083753 | O-RINGD | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R909083763 | O-RINGD | 1 | ||
| R909086498 | O-RINGD | 4 | ||
| 20 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
