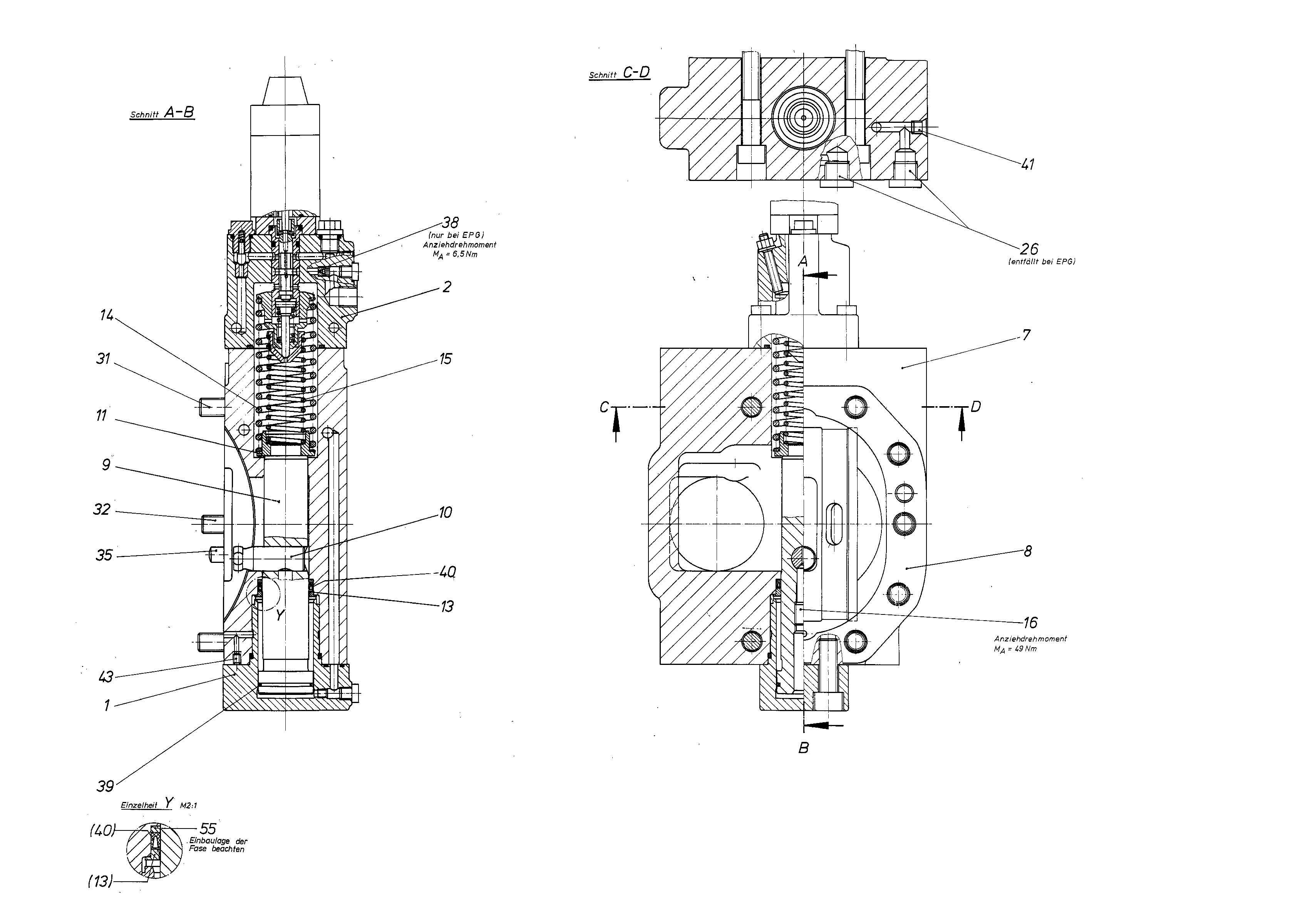

Baugruppe
CONTROLR909419112
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909412457 | COVER Stückliste der Baugruppe →L | 1 | ||
| 2 | R909424717 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | |
| R909424877 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| 8 | R902024643 | SEALD | 1 | |
| 9 | R909425509 | POSITIONING PISTON | 1 | |
| R909425510 | POSITIONING STUD | 1 | ||
| 11 | R909412402 | SPRING DISK | 1 | |
| 13 | R909422953 | RING | 1 | |
| R909412452 | COMPRESSION SPRING | 1 | ||
| 15 | R909432688 | COMPRESSION SPRING | 1 | |
| R909409591 | SETSCREW | 1 | ||
| 26 | R909153816 | SCREW PLUGD | 2 | |
| 31 | R909083100 | SOCKET HEAD CAP SCREW | 7 | |
| R909083087 | SOCKET HEAD CAP SCREW | 1 | ||
| 35 | R913009669 | STRAIGHT PIN | 2 | |
| R909156647 | R-RINGD | 1 | ||
| 40 | R909156541 | ROD SEALD | 1 | |
| 41 | R909831319 | DOUBLE BREAK-OFF PLUG | 3 | |
| R909422954 | WASHER | 1 |
