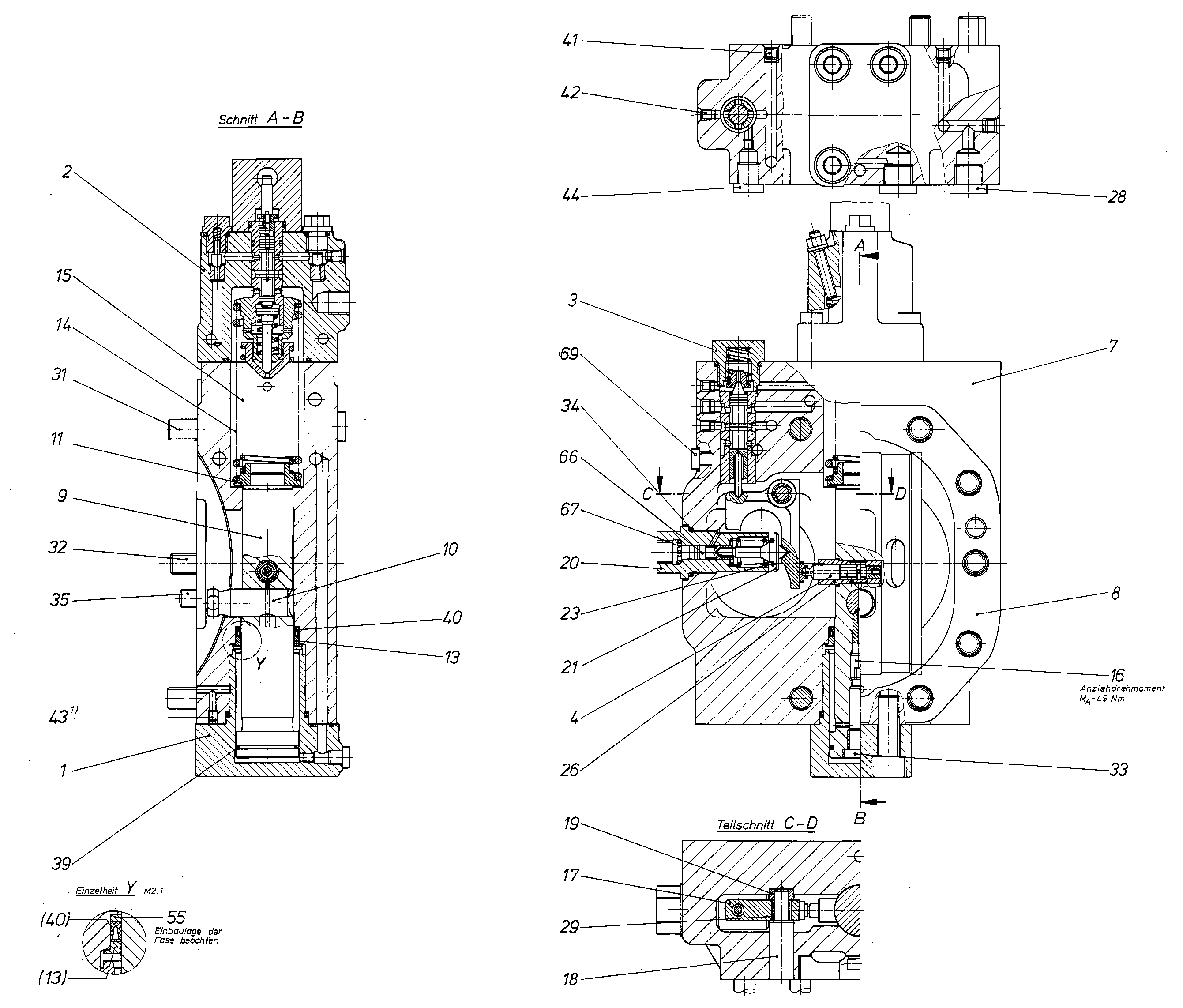

Baugruppe
CONTROLR909419221
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909412457 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909424720 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R909415664 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909419351 | PISTON PAD | 1 | ||
| R909422673 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902024643 | SEALD | 1 | ||
| R909425504 | POSITIONING PISTON | 1 | ||
| R909425505 | POSITIONING STUD | 1 | ||
| R909417309 | SPRING DISK | 1 | ||
| R909422953 | RING | 1 | ||
| R909412452 | COMPRESSION SPRING | 1 | ||
| R909417313 | COMPRESSION SPRING | 1 | ||
| R909413014 | SETSCREW | 1 | ||
| R909415563 | LEVER | 1 | ||
| R909412688 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909417311 | SCREW PLUG | 1 | ||
| R909419244 | SPRING BOLT | 1 | ||
| R909408271 | COMPRESSION SPRING | 1 | ||
| R909425554 | ADJUSTING BUSH | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083100 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909156647 | R-RINGD | 1 | ||
| R909156541 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083489 | SETSCREW | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909422954 | WASHER | 1 | ||
| R909419246 | PISTON | 1 | ||
| R909156539 | SNAP RING | 1 | ||
| R909154024 | SCREW PLUGD | 1 |
