Baugruppe

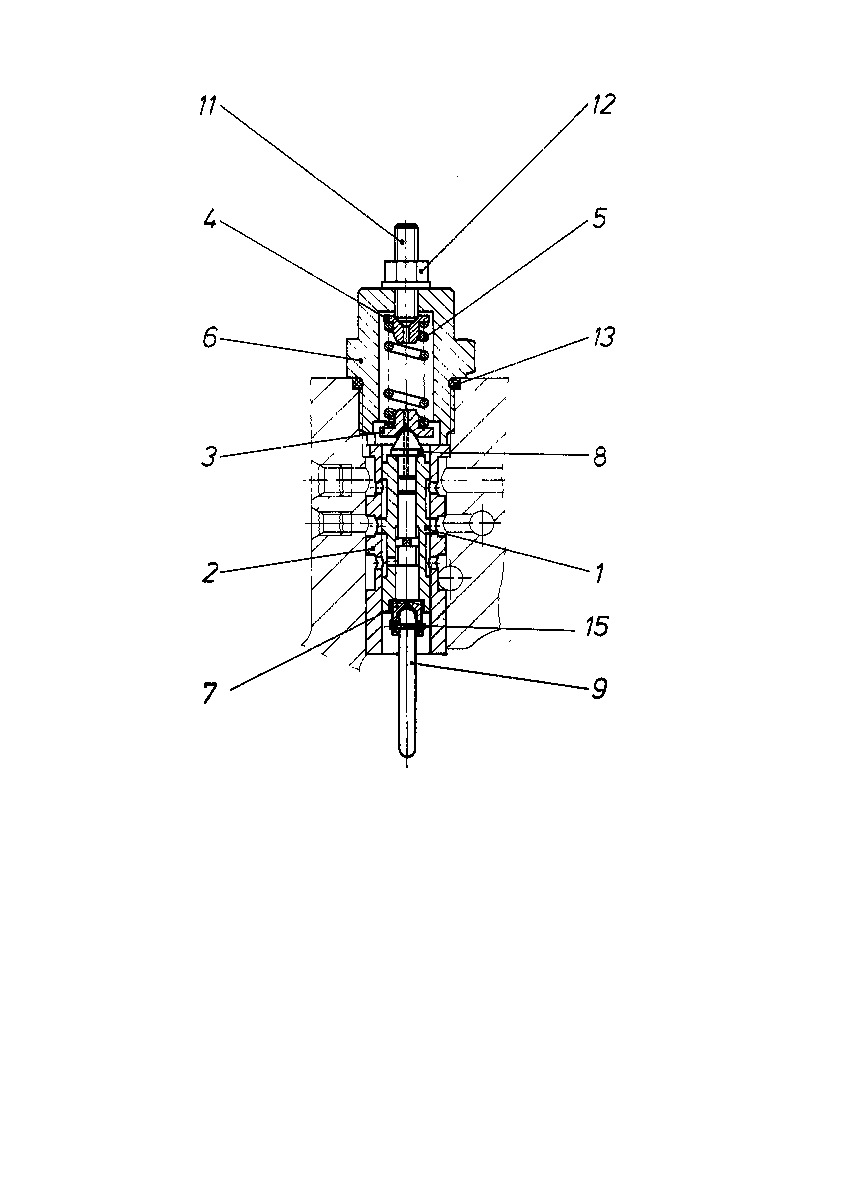

CONTROL PARTR909419673
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909420396 | CONTROL SLEEVE | 1 | |
| 2 | R909413030 | CONTROL SLEEVE | 1 | |
| 3 | R909421369 | SPRING DISK | 1 | |
| 4 | R909413038 | SPRING DISK | 1 | |
| 5 | R909413138 | COMPRESSION SPRING | 1 | |
| 6 | R909412349 | SCREW PLUG | 1 | |
| 7 | R909426992 | POSITIONING PISTON | 1 | |
| 8 | R909420397 | BOLT | 1 | |
| 9 | R909425608 | PIN | 1 | |
| R909420991 | SETSCREW | 1 | ||
| 12 | R909152425 | SEALING NUTD | 1 | |
| 13 | R909086517 | O-RINGD | 1 | |
| R909157511 | SLOTTED SPRING PIN | 1 |
