Baugruppe

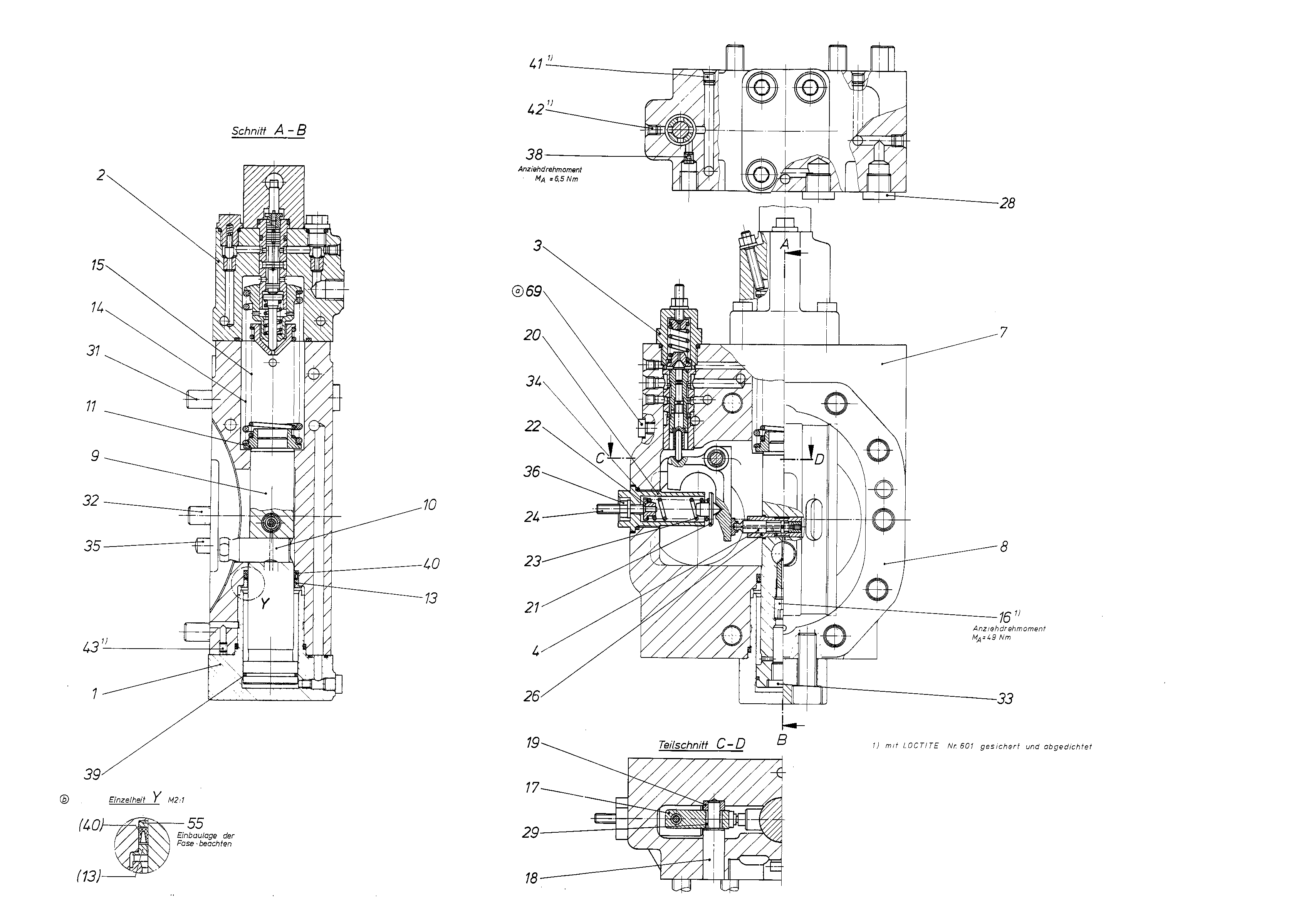

CONTROLR909419921
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909412457 | COVER Stückliste der Baugruppe →L | 1 | |
| 2 | R909424720 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | |
| R909416074 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909419351 | PISTON PAD | 1 | ||
| 7 | R909422673 | COVER PLATE, COUNTER CLOCKWISE | 1 | |
| 8 | R902024643 | SEALD | 1 | |
| 9 | R909425504 | POSITIONING PISTON | 1 | |
| R909425505 | POSITIONING STUD | 1 | ||
| 11 | R909417309 | SPRING DISK | 1 | |
| 13 | R909422953 | RING | 1 | |
| R909412452 | COMPRESSION SPRING | 1 | ||
| 15 | R909417313 | COMPRESSION SPRING | 1 | |
| 16 | R909413014 | SETSCREW | 1 | |
| 17 | R909415563 | LEVER | 1 | |
| R909412688 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909412931 | SCREW PLUG | 1 | ||
| R909435516 | SPRING DISK | 1 | ||
| R909435517 | SPRING DISK | 1 | ||
| 23 | R909413035 | COMPRESSION SPRING | 1 | |
| 24 | R909421402 | SETSCREW | 1 | |
| R909425554 | ADJUSTING BUSH | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| 31 | R909083100 | SOCKET HEAD CAP SCREW | 7 | |
| R909083087 | SOCKET HEAD CAP SCREW | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R909156647 | R-RINGD | 1 | ||
| R909156541 | ROD SEALD | 1 | ||
| 41 | R909831319 | DOUBLE BREAK-OFF PLUG | 5 | |
| 42 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 43 | R909083489 | SETSCREW | 1 | |
| 55 | R909422954 | WASHER | 1 | |
| 69 | R909154024 | SCREW PLUGD | 1 |
