Baugruppe

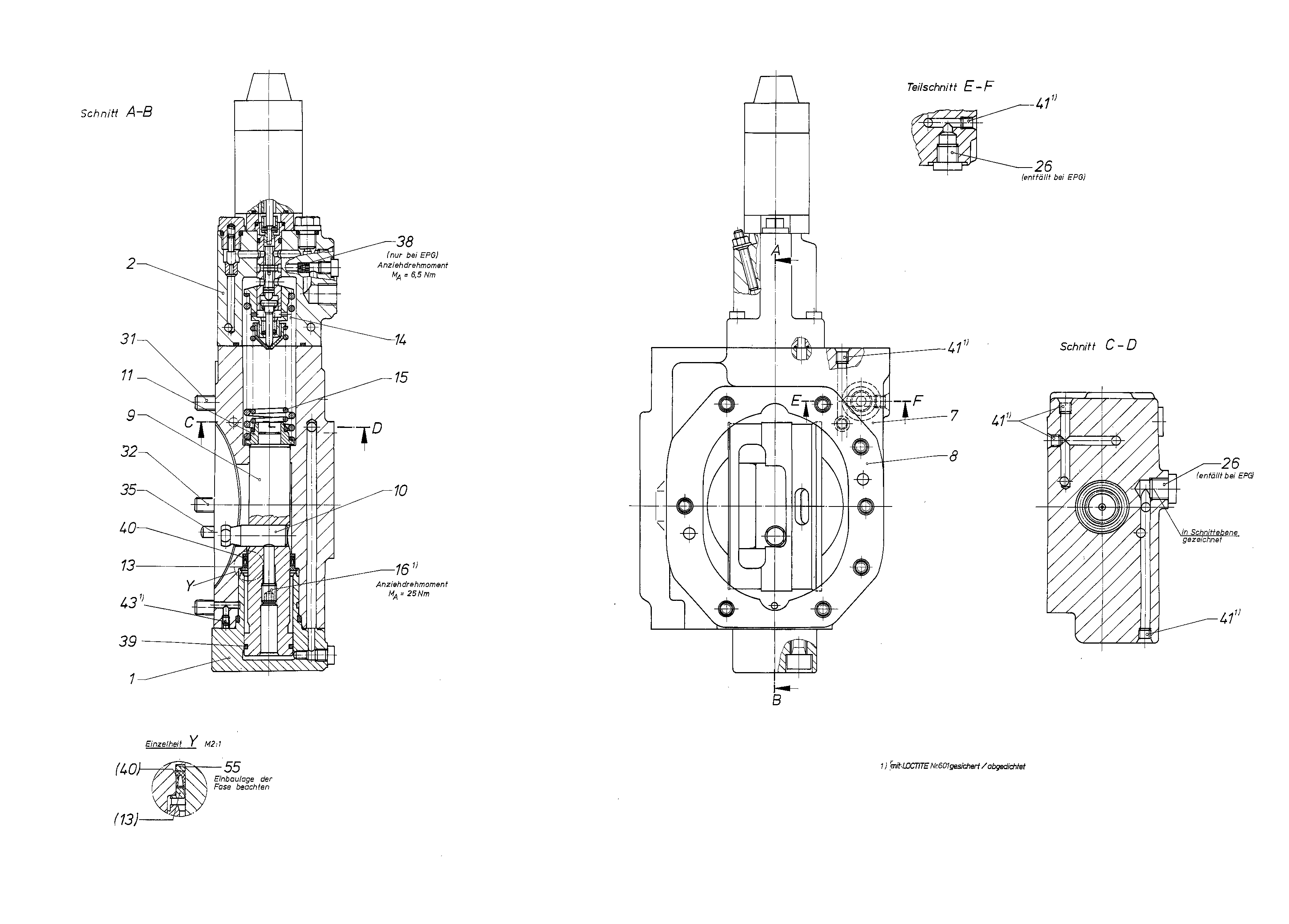

CONTROLR909420883
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909414177 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909424715 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R909424875 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902024642 | SEALD | 1 | ||
| R909425517 | POSITIONING PISTON | 1 | ||
| R909425519 | POSITIONING STUD | 1 | ||
| R909416594 | SPRING DISK | 1 | ||
| R909422951 | RING | 1 | ||
| R909416021 | COMPRESSION SPRING | 1 | ||
| R909432687 | COMPRESSION SPRING | 1 | ||
| R909416798 | SETSCREW | 1 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909083070 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083061 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R902602841 | STEEL SEALING RINGD | 1 | ||
| R909156544 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909422952 | WASHER | 1 |
