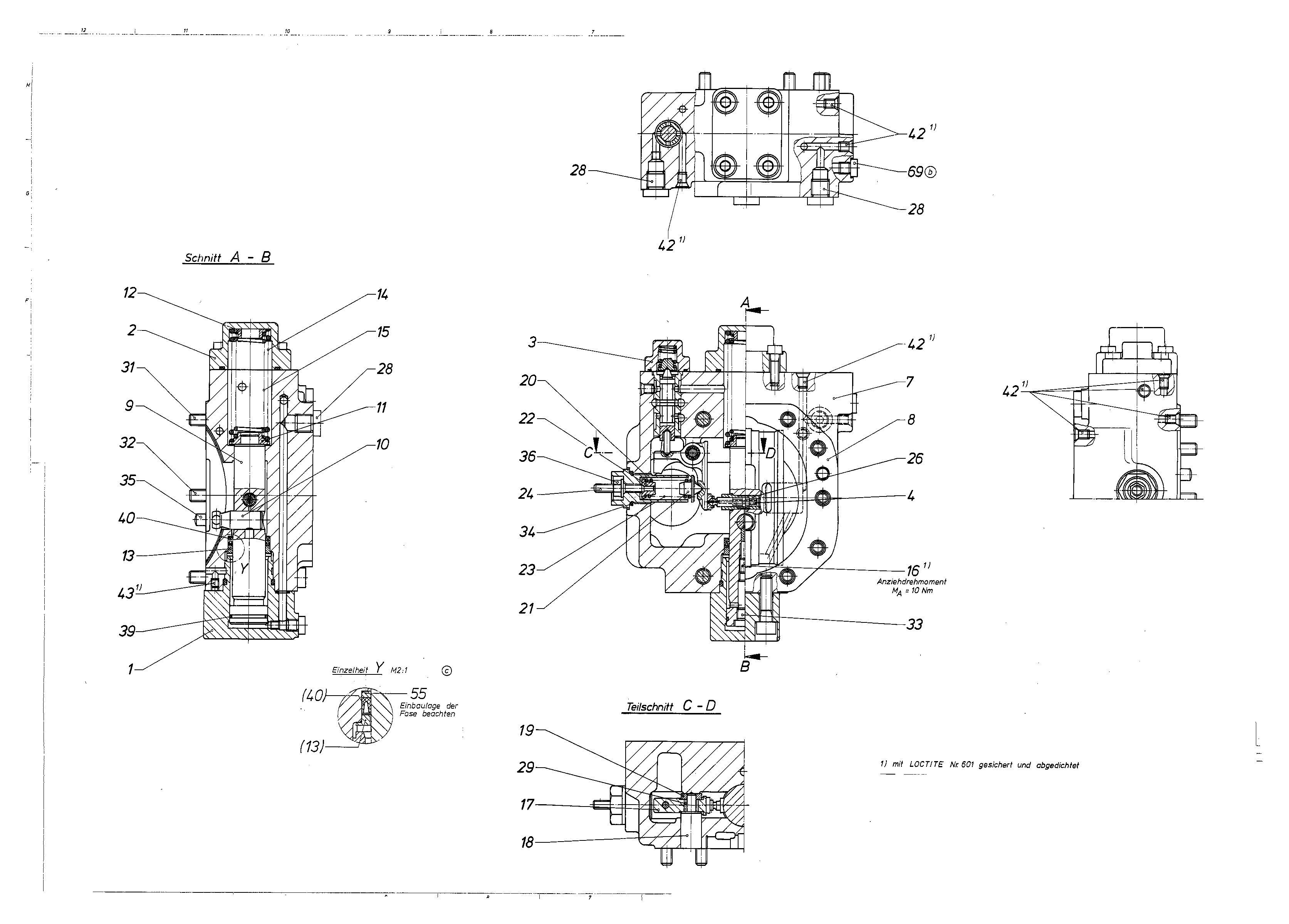

Baugruppe
CONTROLR909421127
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909416967 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909416965 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909417896 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909419520 | PISTON PAD | 1 | ||
| R909422477 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902024641 | SEALD | 1 | ||
| R909425512 | POSITIONING PISTON | 1 | ||
| R909425514 | POSITIONING STUD | 1 | ||
| R909417663 | SPRING DISK | 1 | ||
| R909417662 | SPRING DISK | 1 | ||
| R909424385 | RING | 1 | ||
| R909417738 | COMPRESSION SPRING | 1 | ||
| R909417739 | COMPRESSION SPRING | 1 | ||
| R909417903 | SETSCREW | 1 | ||
| R909418298 | LEVER | 1 | ||
| R909418299 | BEARING BOLT | 1 | ||
| R909418300 | BUSHING | 1 | ||
| R909417661 | SCREW PLUG | 1 | ||
| R909435525 | SPRING DISK | 1 | ||
| R909435524 | SPRING DISK | 1 | ||
| R909416687 | COMPRESSION SPRING | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| R909425552 | ADJUSTING BUSH | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909157017 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083049 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909156962 | R-RINGD | 1 | ||
| R909156545 | ROD SEALD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909083489 | SETSCREW | 1 | ||
| R909424386 | BACKUP RING | 1 | ||
| R909154024 | SCREW PLUGD | 1 |
