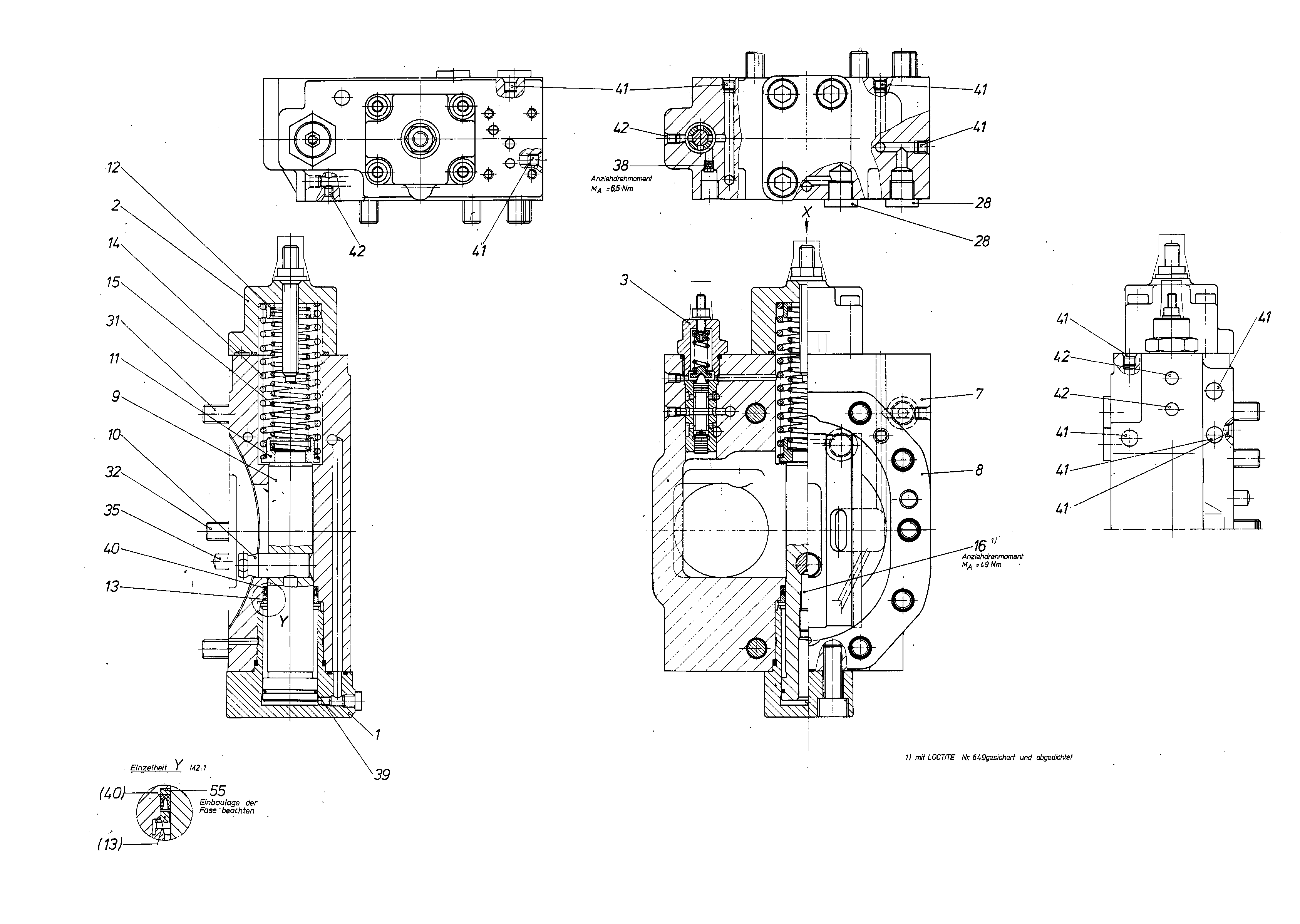

Baugruppe
CONTROLR909421438
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909412457 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909427448 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909413428 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909421439 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024643 | SEALD | 1 | ||
| R909425509 | POSITIONING PISTON | 1 | ||
| R909425510 | POSITIONING STUD | 1 | ||
| R909412402 | SPRING DISK | 1 | ||
| R909412450 | SPRING DISK | 1 | ||
| R909422953 | RING | 1 | ||
| R909412452 | COMPRESSION SPRING | 1 | ||
| R909412451 | COMPRESSION SPRING | 1 | ||
| R909409591 | SETSCREW | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909083100 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909156492 | NOZZLE | 1 | ||
| R909156647 | R-RINGD | 1 | ||
| R909156541 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| 43 | R909083489 | SETSCREW | 1 | |
| R909422954 | WASHER | 1 |
