Baugruppe

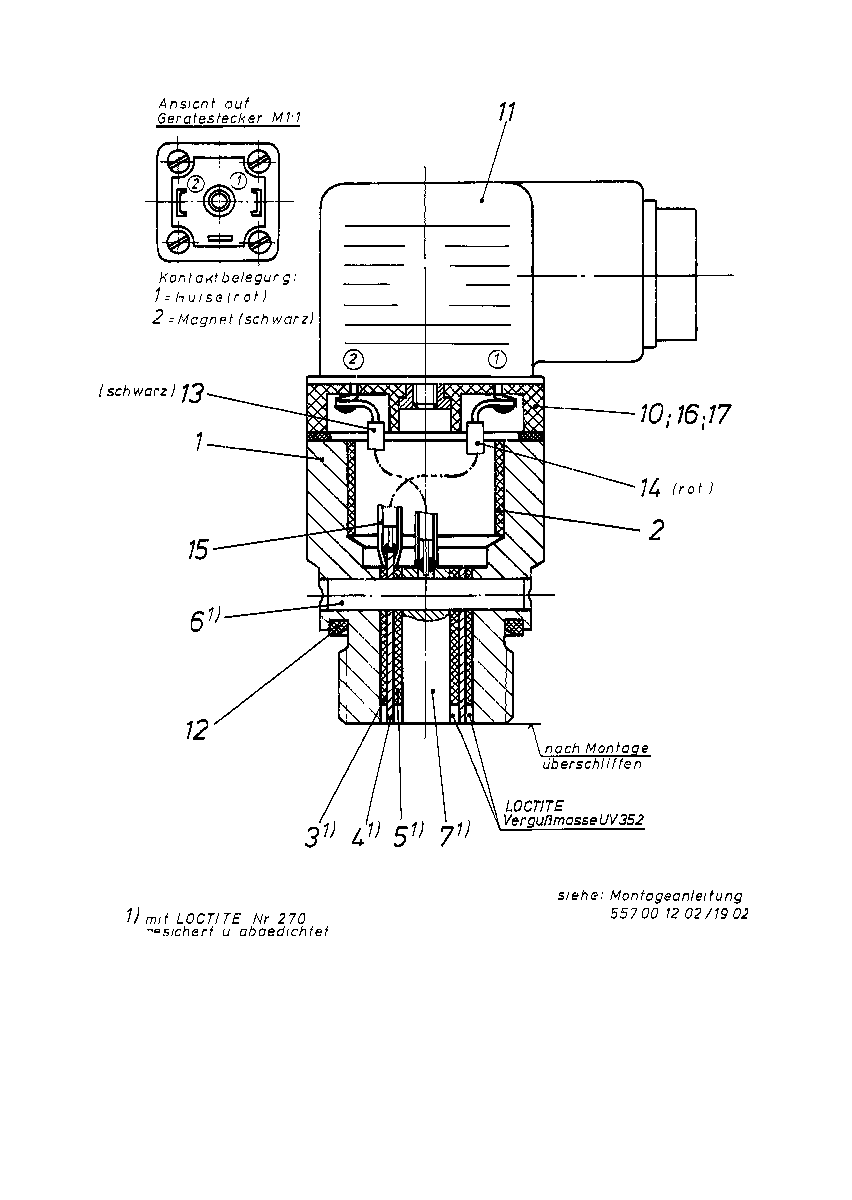

POLLUTION SWITCHR909422008
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909422017 | SWITCH HOUSING | 1 | |
| 2 | R909422011 | INSULATING BUSHING | 1 | |
| 3 | R909440204 | INSULATING BUSHING | 1 | |
| 4 | R909422013 | CONTACT SLEEVE | 1 | |
| 5 | R909440203 | INSULATING BUSHING | 1 | |
| 6 | R909422018 | POLYAMIDE PIN | 1 | |
| 7 | R909422016 | GRAB MAGNET | 1 | |
| 10 | R909157329 | CONNECTION PLUG | 1 | |
| 11 | R909157437 | SOCKET | 1 | |
| R900012473 | SEAL RINGD | 1 | ||
| 13 | R909156191 | STRANDED HOOK-UP WIRE | 1 | |
| 14 | R909156192 | STRANDED HOOK-UP WIRE | 1 | |
| R909156190 | HOSE | 2 | ||
| 16 | R909084255 | SOCKET HEAD CAP SCREW | 4 | |
| 17 | R909154156 | TOOTHED LOCK WASHER | 4 |
