Baugruppe

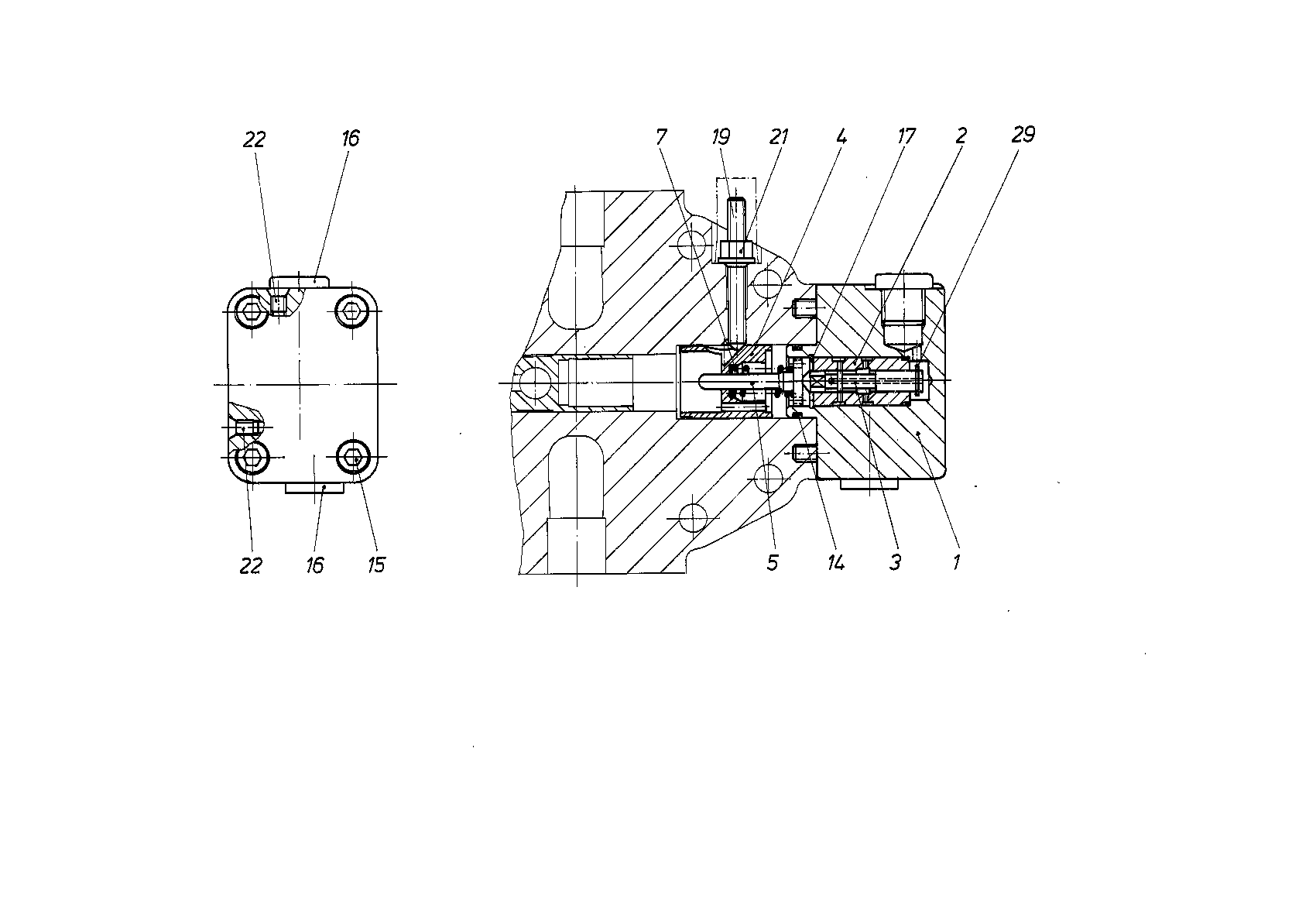

CONTROL PARTR909422284
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909421399 | CONTROL HOUSING | 1 | ||
| 2 | R909417512 | CONTROL SLEEVE | 1 | |
| 3 | R909430747 | CONTROL PISTON | 1 | |
| 4 | R909445267 | ADJUSTING BUSHING | 1 | |
| 5 | R909921339 | SPRING DISK | 1 | |
| 7 | R909430757 | COMPRESSION SPRING | 1 | |
| 14 | R909086432 | O-RINGD | 1 | |
| R909083026 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909439043 | SETSCREW | 1 | ||
| 21 | R909152425 | SEALING NUTD | 1 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909085812 | LOCKING WASHER | 1 |
